24
④Please press the data key twice and return to the voltage
display when the adjustment ends.
Fast-forward operation of frequency
When you want to change the frequency to a large degree, usage of the fast-forward operation makes the
frequency change in a short time possible. But, please make the change while the parts feeder is vibrating,
referring to (5)-③ of the previous page for the final minor frequency adjustment.

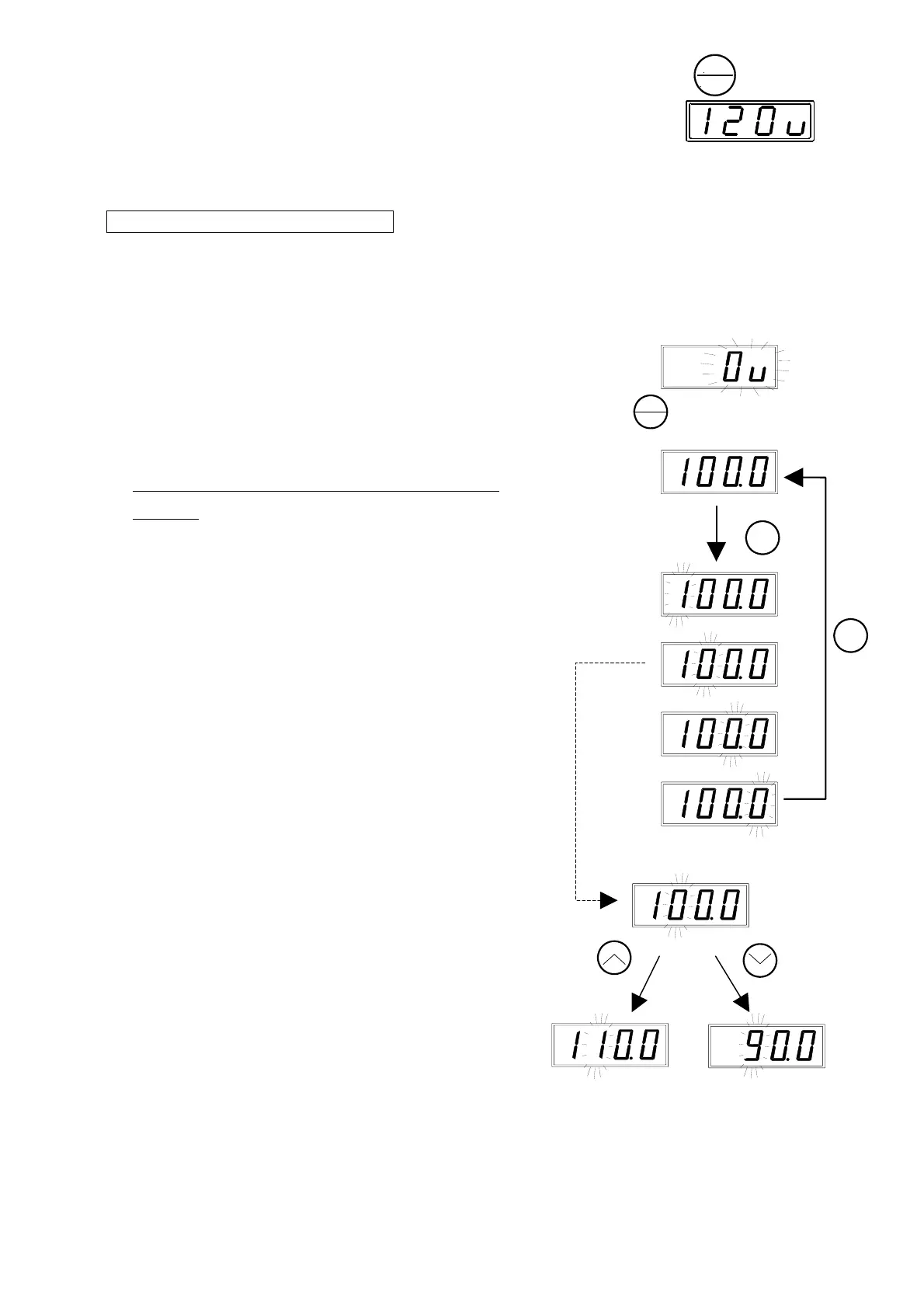

＜Operating method＞
①Stop the driving of the controller.
In case of external control (J02 is 0 or 1), please turn
the driving signal OFF from outside. In case of panel
control (J02 is 2 or 3), please press the “STOP” key.
This operation is not possible during the driving of
controller.
②Display the frequency by pressing the “DATA” key.
③When the “STOP” key is pressed, the digit (1
st
digit) at
the left end blinks. This blinking part is a changed digit.
④Every one press of the “STOP” key moves one digit
each to right direction.
⑤If the “STOP” key is pressed at the right end (4
th
digit),
it turns to normal frequency display of all digits.
⑥If the “UP” or the “DOWN” key is pressed at blinking
position, frequency data of applicable digits can be
changed.
⑦ If the “FUNC” key is pressed during change of
frequency, it returns to display of the stopped
condition. If the condition without any operation
continues for 20 seconds, it automatically returns to
display of the stopped condition. In such an event, if
data was being changed, the changed data is reflected.
⑧Usage of the frequency fast-forward operation is also
possible for frequency H12, H14 and H16 of function by
the same manner. But, it is limited only at the time
when the controller is under stopped condition.
ＤＡＴＡ
ＥＮＴＥＲ
※ Up-and-down of digit can be done
automatically. But, in case that it is
outside the adjustment range, the
up-and-down of digit is not possible.
DATA
ENTER
STOP
STOP
Halt condition
(0V blinks)
Frequency
To Next Page
