5. Installation
(1) Installation place
① Please install it on a firm material such as metals (nonflammable material) having no vibration.
② Please have a space in surroundings without fail so as not to ruin heat radiation and install it vertically.
③ Oils and fats and chemicals, etc. may hurt the resin, painting, and the cable of BOX. These liquid and mist
must not splash directly on the controller.

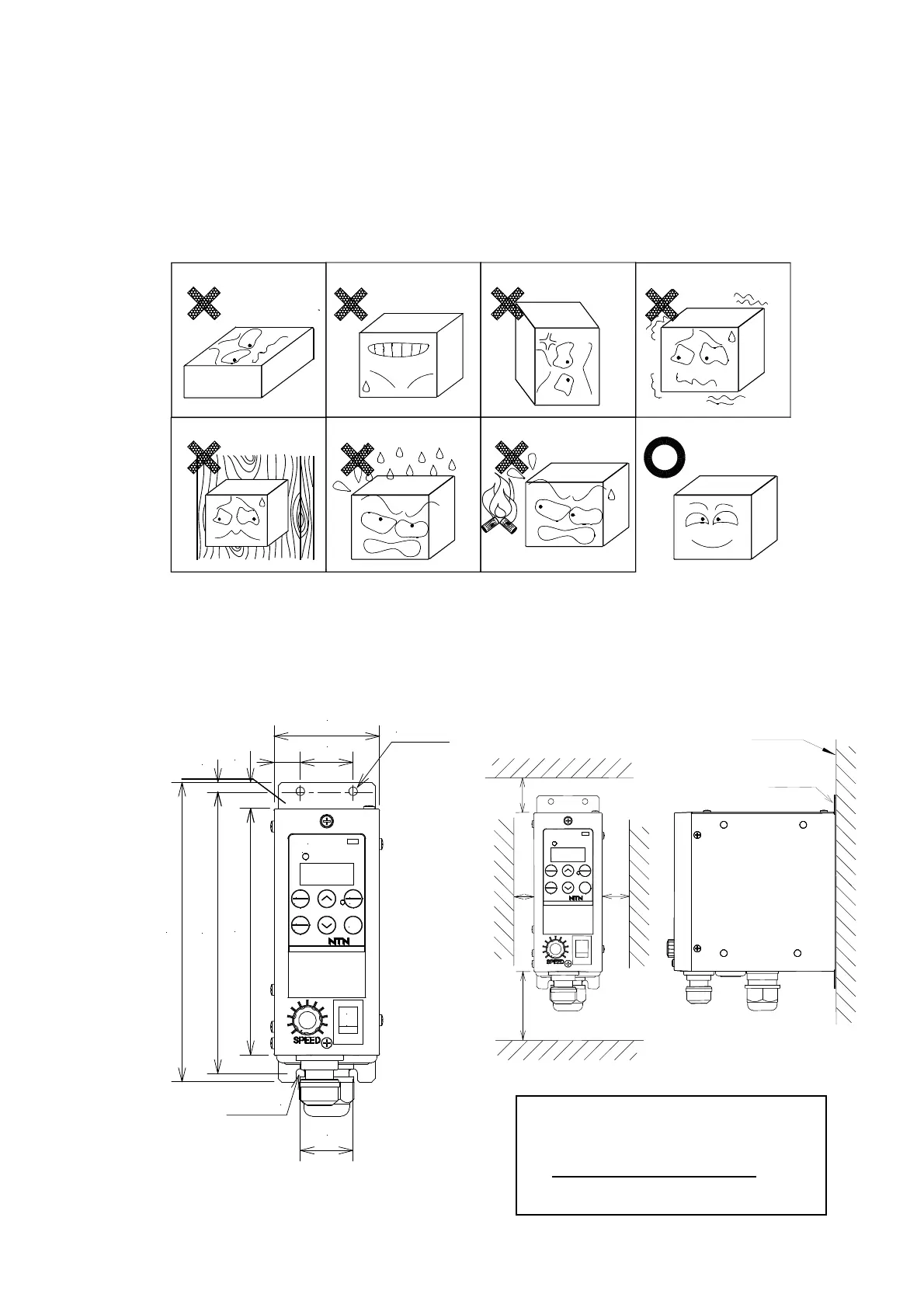

(2) Installation hole and surrounding space
Please refer to the figure below for the size concerning controller's installation. Moreover, it is necessary to
leave a space shown in the figure below in the surroundings of the controller for heat radiation (Unit: mm)
[Installation dimension] [Space to the surroundings]
高温部の近く
横向きにする
木材
水平にする
液体がかかる
上下逆さにする
正しい取付け
振動や衝撃のある場所
Placing horizontally
Placing under spillage of liquid
Placing correctly
Placing near hot temperature Placing on wood
Placing sideways Placing upside down
Placing in environment
with vibration or impact
Ｋ－ＥＣＦ２５
Ｖ．Ｆ． ＣＯＮＴＲＯＬＬＥＲ
ＲＵＮ
ＪＡＰＡＮ
ＡＣ１００－１１５／２００－２３０Ｖ ５０／６０Ｈｚ ２Ａ
ＦＵＮＣ
ＲＥＳＥＴ
ＤＡＴＡ
ＥＮＴＥＲ
ＳＴＯＰ
ＪＯＧ
ＲＵＮ
l
0
ＲｏＨＳ
60(82)
30(60)
140
160
170
2-φ5
5
15
30(60)
2-R2.5
15
12.5
Figures in ( ) are dimensions for ECH45
Fixing leg
Fixing face
30
60
5
10
To mount the controller on the bowl feeder base,
purchase the separate optional unit.
Base mounting bracket: K-PZ0466
For details, ask NTN.
