44

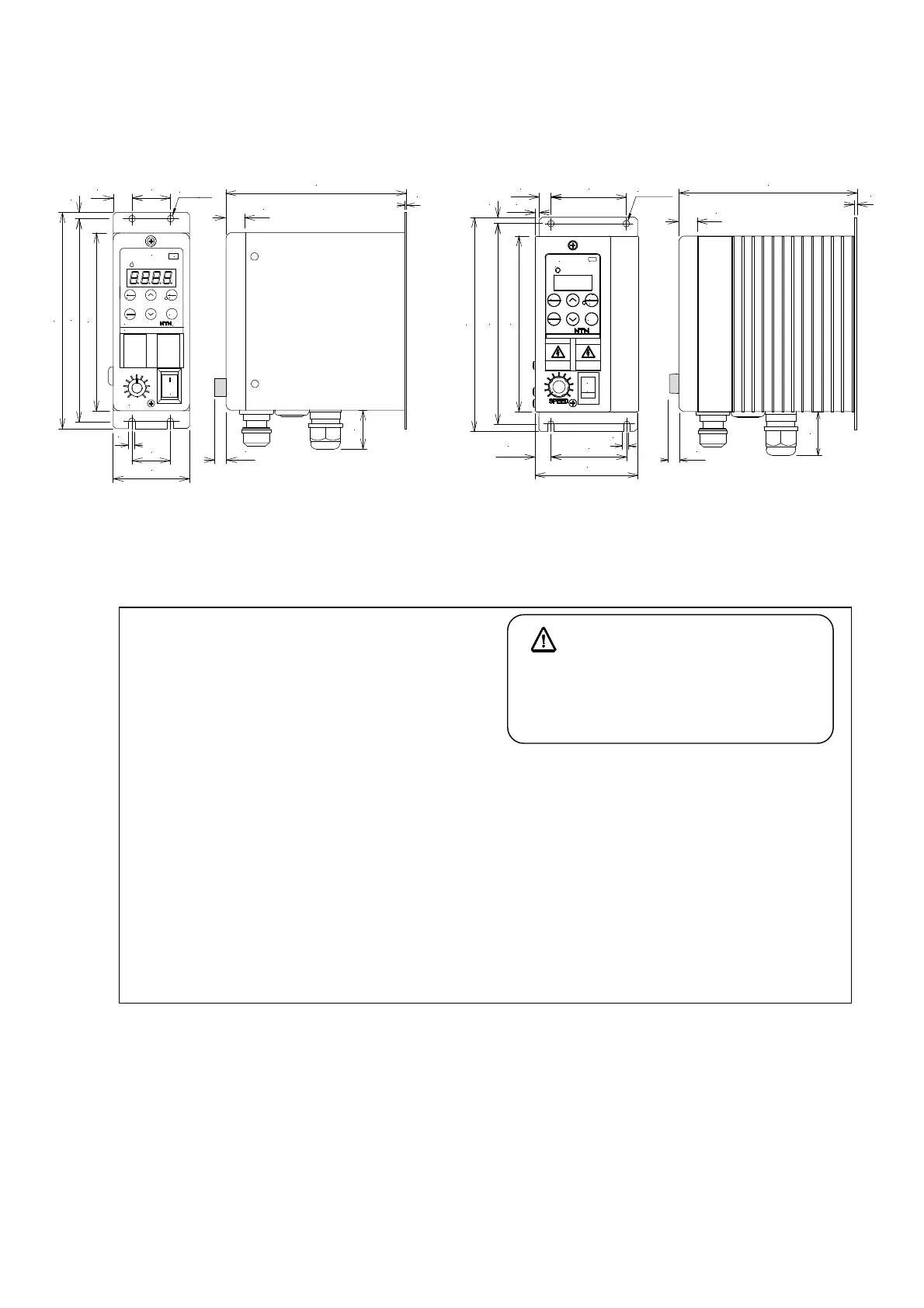

[Outside dimension diagram]
K-ECF25 K-ECH45
※ The cable grand etc. are omitted on the front view so that the mounting holes are visible.
Please refer to P.7 for the details of installation.
*Replacement method of fuses
Refer to P.43 for the applicable fuses.
1. The main power supply (main breaker) to which the
controller is connected is turned off, and energizing
to the controller is stopped.
2. The cause due to which the fuse is cut is investigated, and proper measures are given.
3. The panel fixing screw is loosened, and the panel is opened. (Refer to P. 10)
4. The cap comes out a little forward when twisting the cap of the fuse holder (Refer to P. 6) under the power
terminal board counterclockwise by 90° while lightly pushing it to the interior, and pull out the cap as it is.
5. The fuse (cartridge) comes out with the cap too, then remove the fuse from the cap.
6. Please push a new fuse of the same rating as the broken fuse (confirm the current rating/voltage etc.) into the
cap. Please dispose of the broken fuse in an appropriate manner.
7. Insert the cap and the cartridge into the fuse holder, and twist the cap clockwise by 90 degrees with pushing it
to the interior to lock. Since the position (direction of the rotation) in which the cap enters is decided, do not
push it forcibly.)
8. Close the panel as before, and fix it with the machine screw.
9. After safety is confirmed, the main power supply (main breaker) is turned on.
Warning
The power supply must always be turned off
and the engineer must work when replacing
fuses.
140
60
142
170
15
K-ECF25
O
AC100-115/20 0-230V 50 /60Hz 2A
V.F. CONTROLLER
JAPAN
FUNC
RESET
DATA
ENTER
JOG
RUN
STOP
RUN
30
160
15
5
SPEED
5
２
-
φ
５
RoHS
(30)
(9)
1
30
140
82
142
15
(35)
9.3
5
２
－
φ
５
5
(9)
170
160
2
3.2
60
60
Ｋ－ＥＣＨ４５
Ｖ．Ｆ．ＣＯＮＴＲＯＬＬＥＲ
ＲＵＮ
ＪＡＰＡＮ
ＡＣ１００－１１５／２００－２３０Ｖ ５０／６０Ｈｚ ４.５Ａ
ＦＵＮＣ
ＲＥＳＥＴ
ＤＡＴＡ
ＥＮＴＥＲ
ＳＴＯＰ
ＪＯＧ
ＲＵＮ
l
0
ＲｏＨＳ
12.5
