32-bit ARM Cortex-M4/M0+ microcontroller
3. Ordering information
3.1 Ordering options
4. Marking
Table 1. Ordering information
Type number Package
Name Description Version
LPC54113J256UK49 WLCSP49 wafer level chip-size package; 49 (7 x 7) bumps; 3.436 x 3.436 x 0.525 mm -
LPC54114J256UK49 WLCSP49 wafer level chip-size package; 49 (7 x 7) bumps; 3.436 x 3.436 x 0.525 mm -
LPC54113J128BD64 LQFP64 plastic low profile quad flat package; 64 leads; body 10 10 1.4 mm SOT314-2
LPC54113J256BD64 LQFP64 plastic low profile quad flat package; 64 leads; body 10 10 1.4 mm SOT314-2
LPC54114J256BD64 LQFP64 plastic low profile quad flat package; 64 leads; body 10 10 1.4 mm SOT314-2
Table 2. Ordering options
Type number Flash
in KB
SRAM in KB Cortex-M4
with FPU
Cortex-M0+ USB FS GPIO
SRAMX SRAM0 SRAM1 SRAM2 Total
LPC54113J256UK49 256 32 64 64 32 192 1 0 1 37
LPC54114J256UK49 256 32 64 64 32 192 1 1 1 37
LPC54113J128BD64 128 32 64 - - 96 1 0 1 48
LPC54113J256BD64 256 32 64 64 32 192 1 0 1 48
LPC54114J256BD64 256 32 64 64 32 192 1 1 1 48

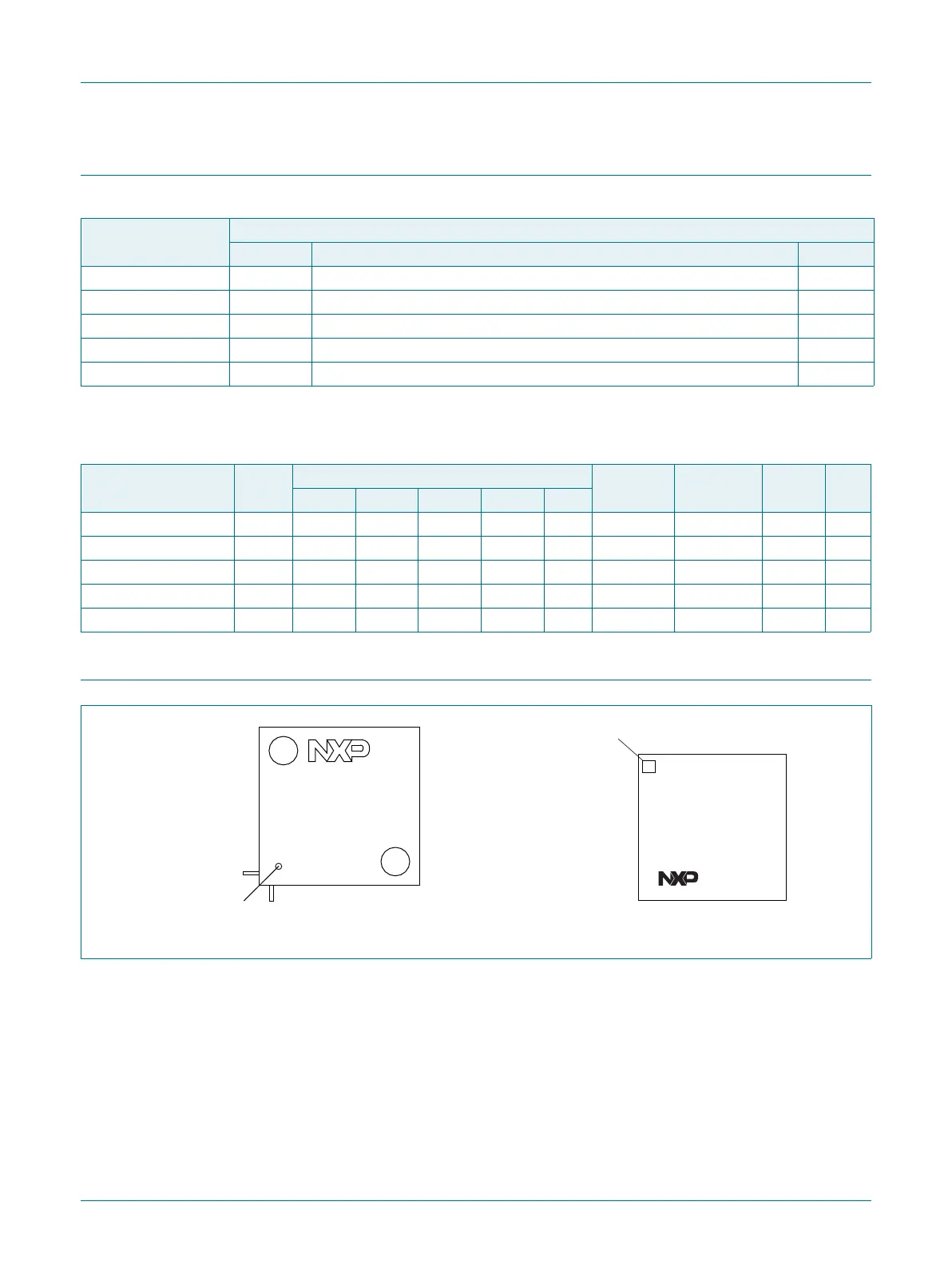

Fig 1. LQFP64 package marking Fig 2. WLCSP49 package marking
1
n
Terminal 1 index area
aaa-011231
aaa-015675
Terminal 1
index area
