Memory Cover
Lever (blue)
Belt Unit
Belt Unit
Lock Lever (blue)
Lock Lever (blue)

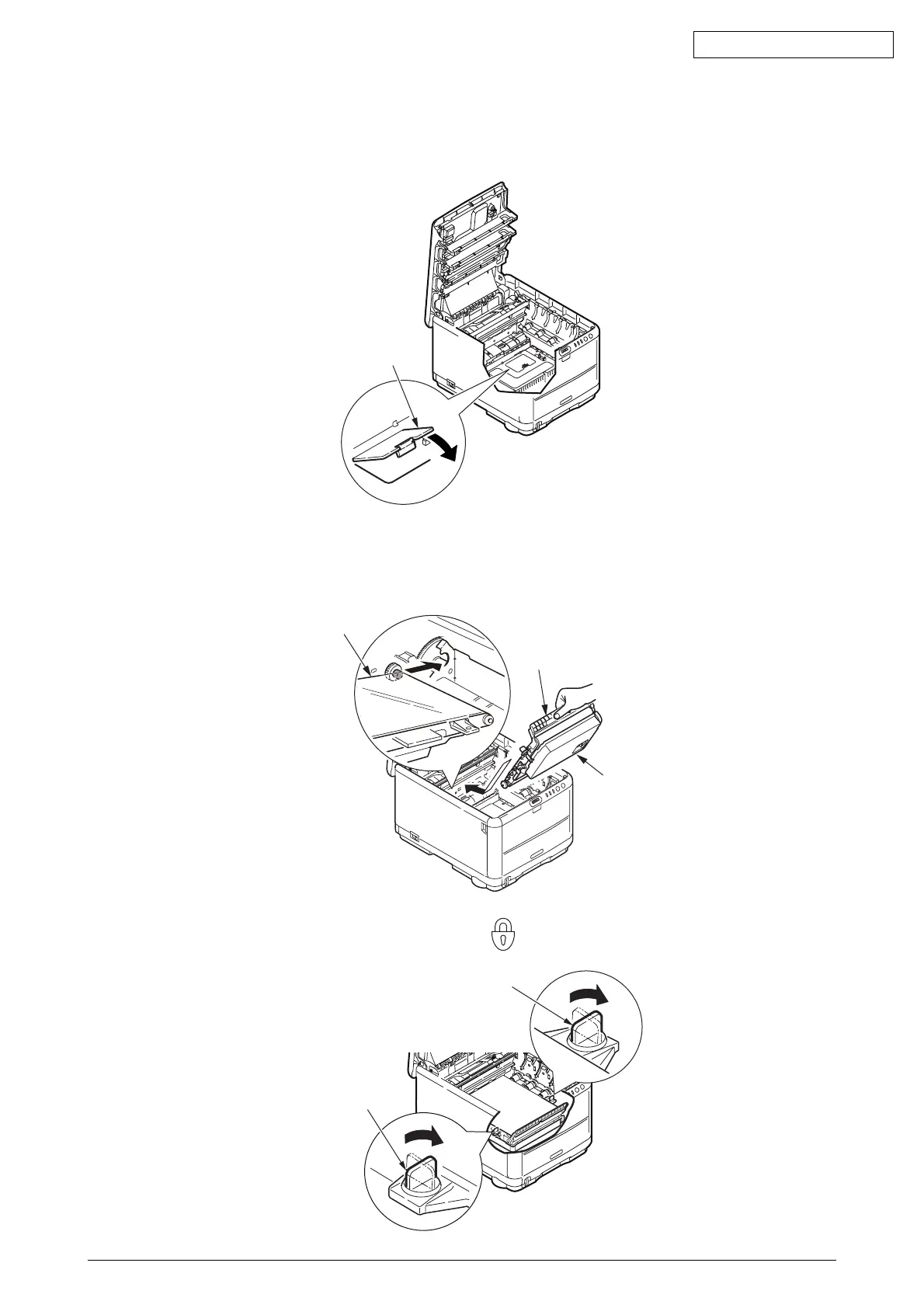

Close the memory cover.
(1) Close the memory cover. Confirm that it is firmly locked.
Install the belt unit.
(1) Hold the belt unit lever (blue) and install the belt unit.
(2) Turn the lock lever(blue, 2) in the direction of and confirm that the belt unit is firmly fixed.
