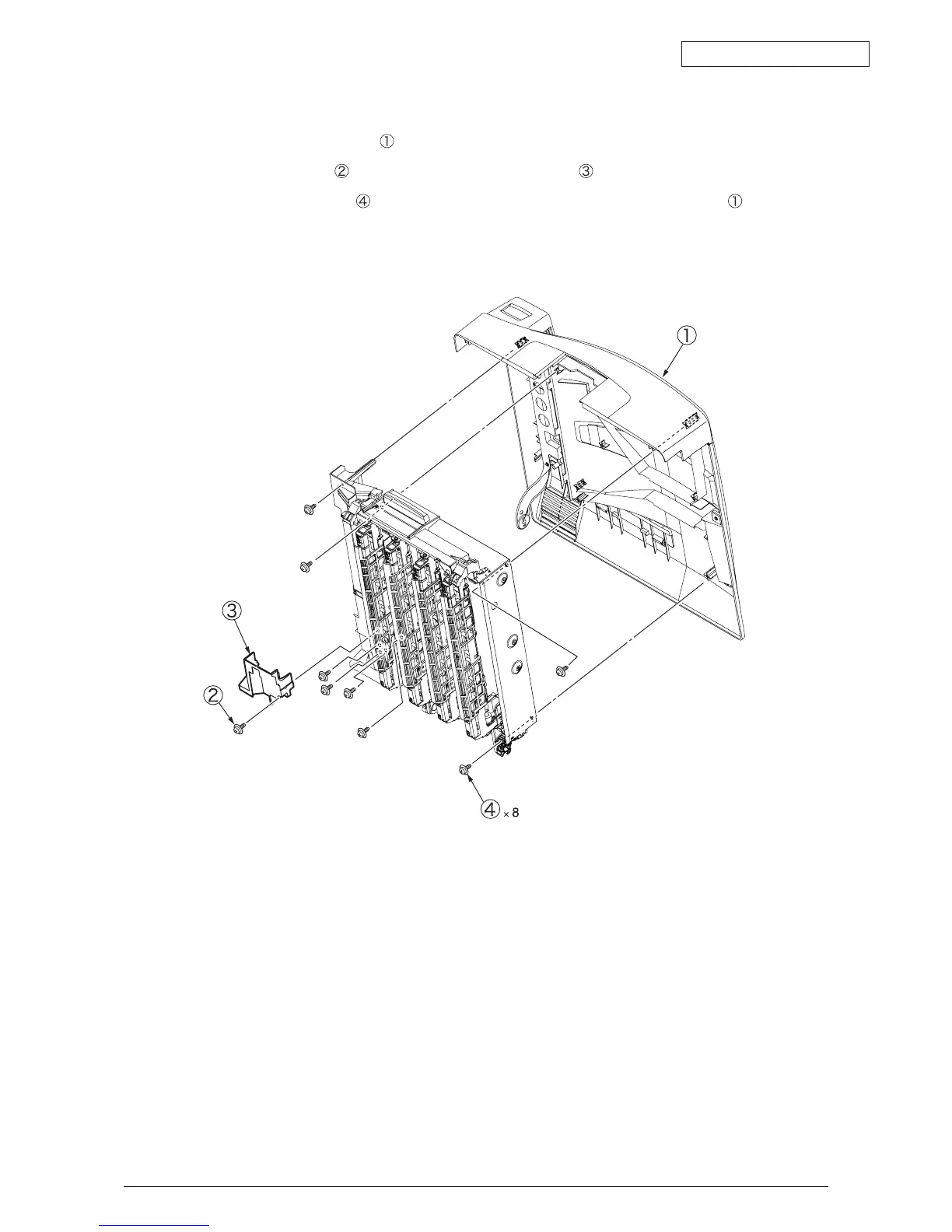

4.3.6 Cover Assy-Top
(1) Open Cover Assy-Top
.
(2) Unscrew screw
, then remove the Cover-Duct (L) .
(3) Unscrew 8 screws
, then remove the 3 hinges and the Cover Assy-Top .
