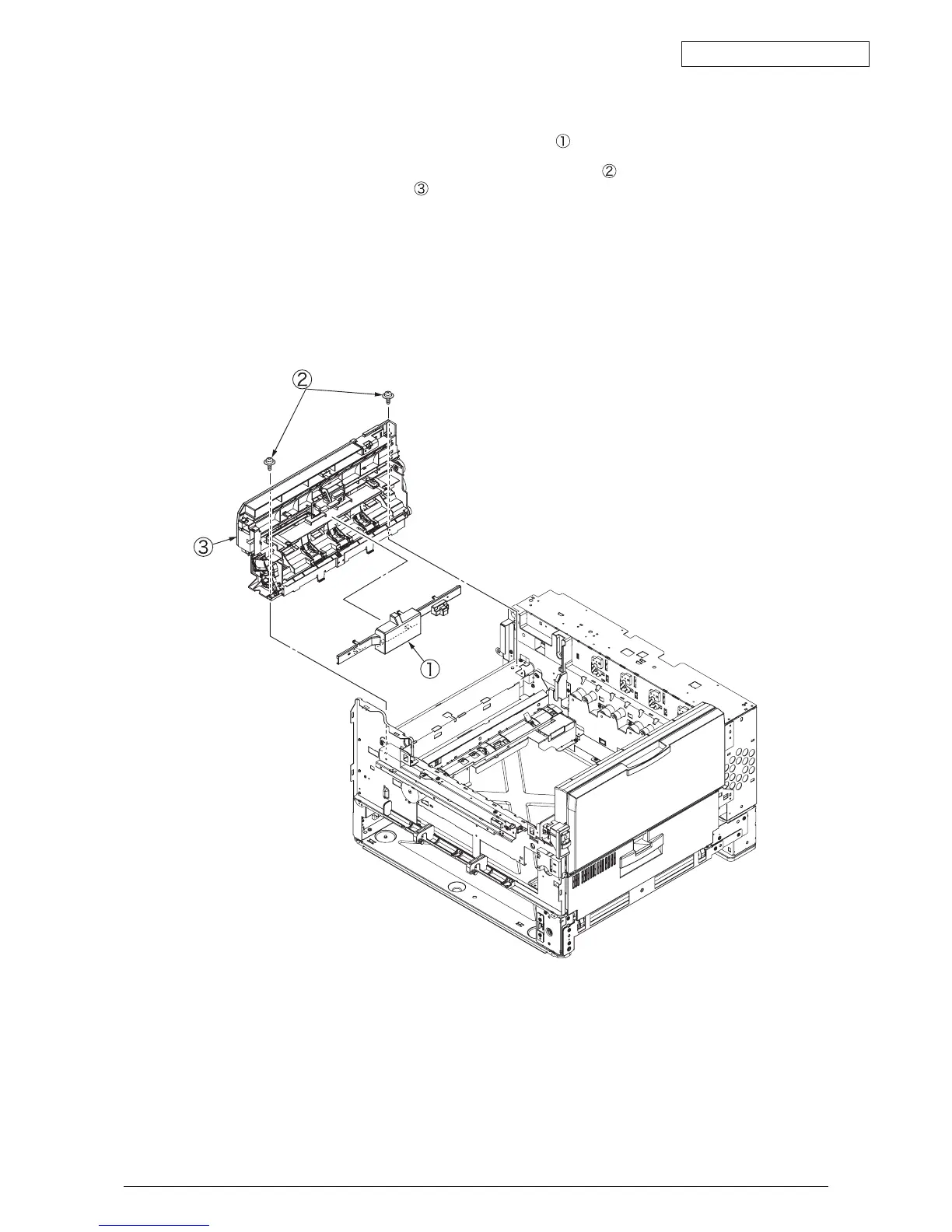

4.3.10 Eject-Assy
(1) Remove the 7 hinges then remove Cover-Board
.
(2) Remove the 13 connectors, and unscrew the 2 screws
. Then remove the 3 hinges
and remove the Eject-Assy .
