3.5 Assembly Procedure
3.5.1 Printer Main Body
Remove Protective Equipment

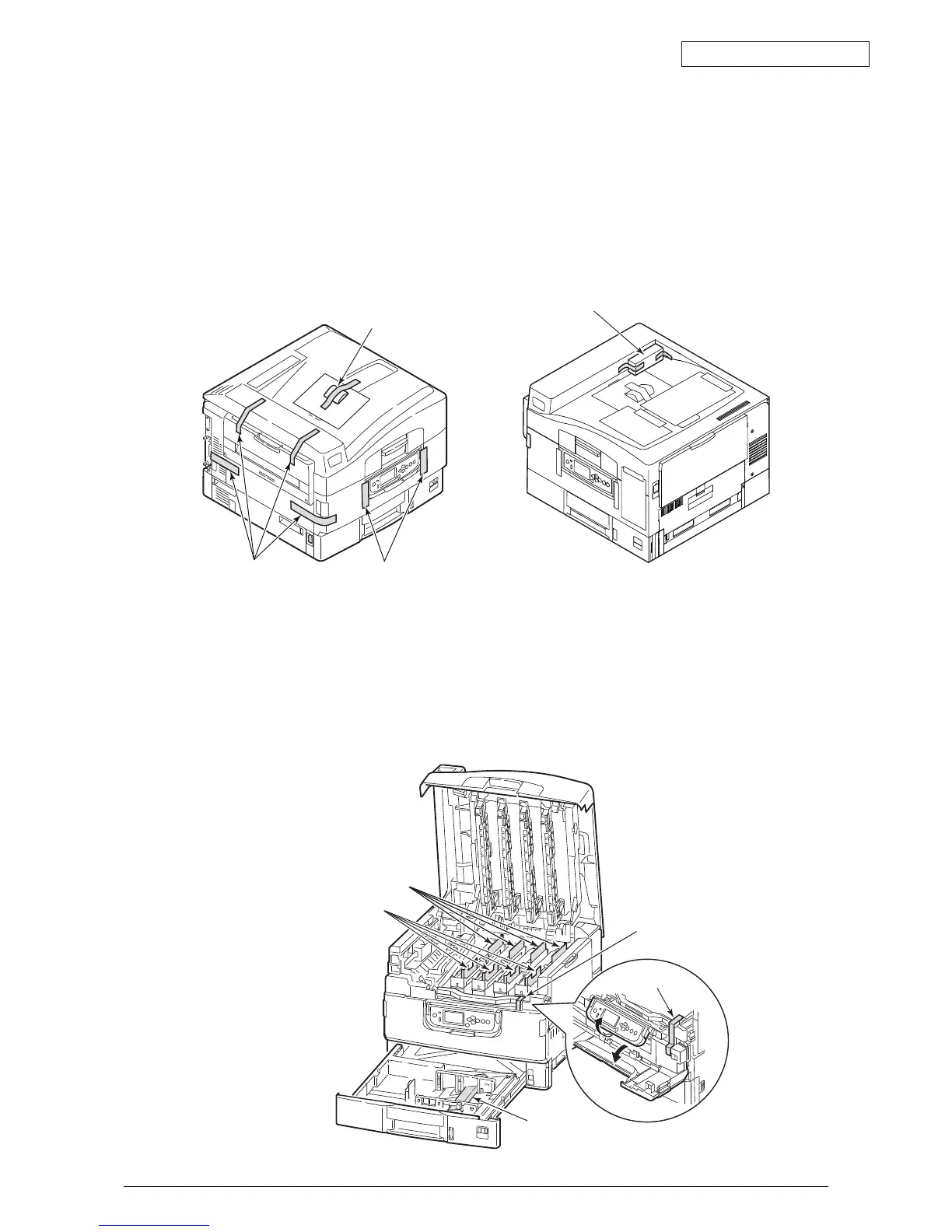

(1) Remove protection tapes on the side of printer (6 places), a sheet of paper, desiccant and
Pad-Guard-Stacker on the top.
Pad-Guard-Stacker
Desiccant
Protection tape
Protection tape
(4 places)
(2 places)
(2) Press down the open button to open the top cover.
(3) Pull out the protective equipment (8 places) and remove protection tapes.
(4) Remove the paper cassette.
(5) Remove the protective equipment inside the paper cassette.
Protective equipment (4 places)
Protective equipment
(4 places)
Protection tape
Protection tape
Protective equipment
