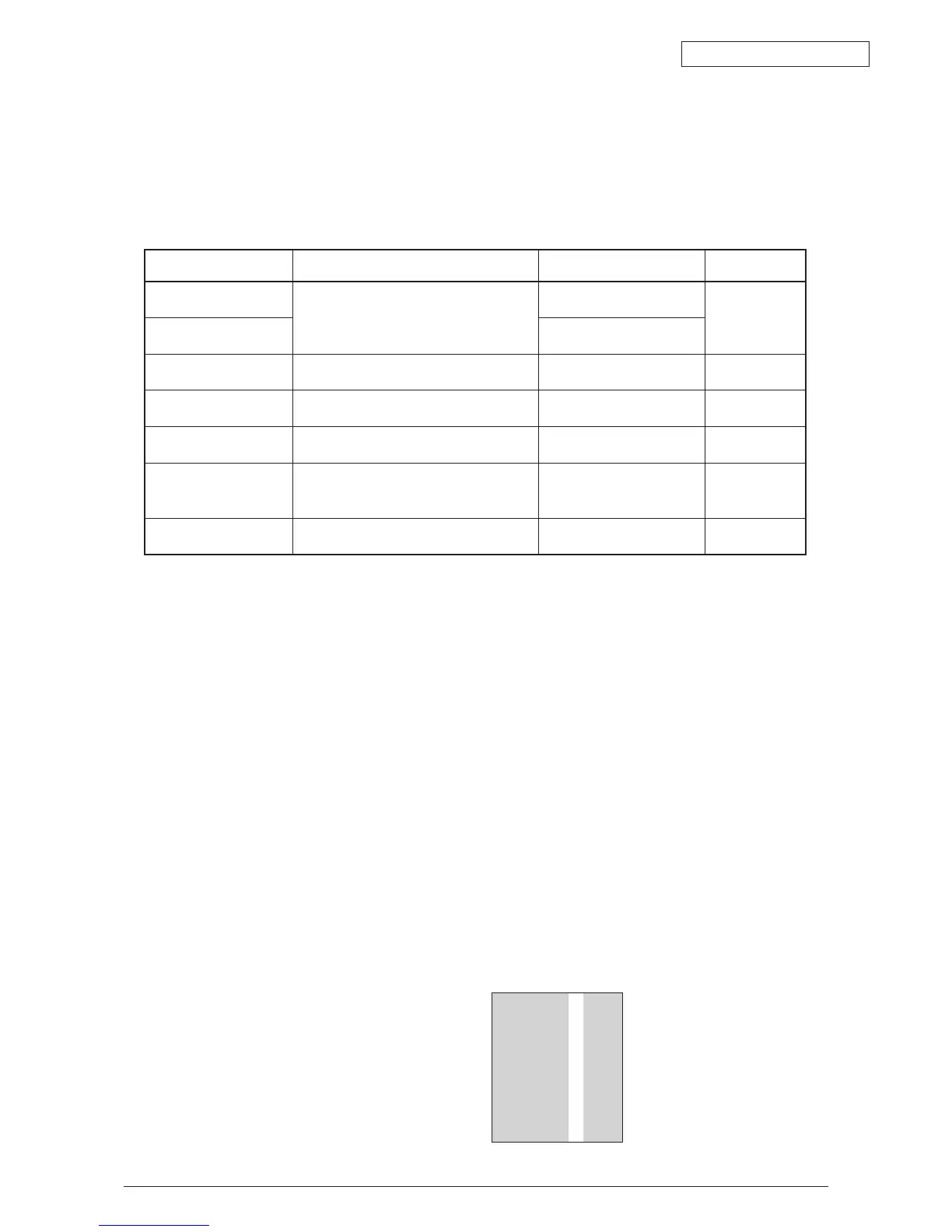

White Band, White Stripe
(White-out, Light Printout)
6. ROUTINE REPLACEMENT
6.1 Routine Replacement of Consumable Parts
We recommend that the user periodically replaces the following parts according to the guideline
indicated. (Note that failure to replace these parts may result in malfunction and will not guaranty
quality printout.)
The user shall be held responsible in periodically replacing these consumable parts.
6.2 Cleaning
Accordingly clean the inside and outside of the C9850/C9650 using a cloth and compact vacuum clean-
er (hand-cleaner).
Note!
NEVER touch the imaging drum terminal, LED lens array or LED head connector.
6.3 LED Lens Array Cleaning
Clean the LED lens array if a white band, white stripe (white-out, light printing) occurs in the ver-
tical direction of the printout.
Note!
ALWAYS use a LED head cleaner or soft tissue paper to clean the LED lens array.
NEVER use methyl alcohol (isopropyl alcohol; rubbing alcohol), thinner or other sol-
vents to clean the lens since this may damage the surface of the lens. (A LED head
cleaner comes with the toner cartridge package)
Note!
1. Supplies (image drum, toner cartridge, fuser and belt unit) are not included.
2. The circuit boards, such as Power Supply PCB, PU PCB and CU PCB, are not in-
cluded.
Part Replacement Period Replacement Condition
Post-Replacement
Adjustment
Heavy Duty Toner
Cartridge
When the following display appears.
"Insert toner."
When printing 15,000
sheets.
Toner Cartridge When printing 5,000
sheets.
Image Drum Cartridge When the following display appears.
"Replace drum."
When printing 30,000
sheets. (3P/J)
Fuser Unit When the following display appears.
"Replace fuser.
When printing 100,000
sheets.
Belt Unit When the following display appears.
"Replace belt.
When printing 100,000
sheets. (3P/J)
Paper Supply Roller When mis-feed frequently occurs.
(The number of sheets in the cassette
must be appropriate)
When printing 120,000
sheets. (Guideline)
Waste Toner Box Replace when "Replace the waste
toner box" appears.
