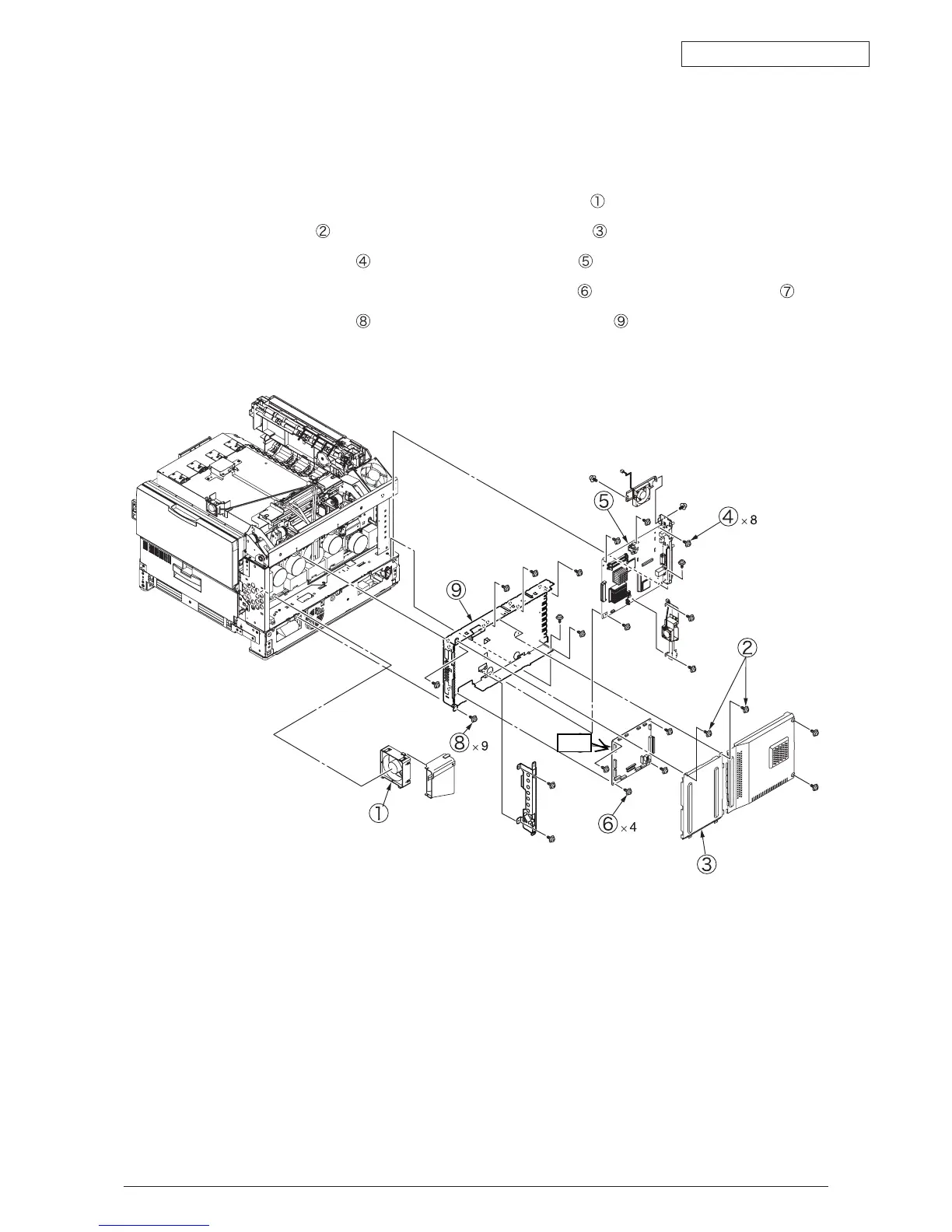

4.3.7 FAN-PCB-Assy, CU-Board-Assy and S2V-PU-Board
(1) Open the Cover Assy-Top.
(2) Remove the covers concerned. (Refer to Section 4.3.2)
(3) Remove the connector, then Remove FAN-PCB-Assy
.
(4)
Unscrew the screws, remove the Plate-Shield-Assy , then remove the connector.
(5) Unscrew 8 screws
, then remove CU-Board-Assy .
(6)
Disconnect all 17 Connectors, then unscrew 4 screws , and remove S2V-PU-Board .
(7) Unscrew 9 screws
, remove the Plate-Shield-Box-Assy , then remove all the con-
nectors.
