5.4 Paper Thickness Detection/Sensitivity Correction
Please refer to okiDoc #3546 on the BPX for instructions on how to calibrate this sensor. Note: A valid BP
NOTE: A valid BPX username and password may be required to view the okiDoc via the link above.
Overview
The sensitivity of the micro-displacement sensor used as the media thickness detector are not
uniform in detection sensitivity. To learn the sensitivity of that unit’s sensor beforehand, there is a
need to pass a media source with a priorly known thickness through the detector. The sensitivity
shall then be detected based on the output value of the sensor.
Adjustments are necessary when replacing the Paper Thickness Sensor, Resist Roller and PU
PCB.
Prepare four media sources with a thickness already measured with a micrometer (MDQ-30M,
MDQ-30). Then pass those sheets through the MP Tray. The media thickness sensitivity
correction value is automatically set with the 3 sheets. Then the media thickness detection
value is tested with the 4th sheet.
Media Used : Transparency Sheet (42527801)
Paper Thickness Detection Error : ±10µm or less

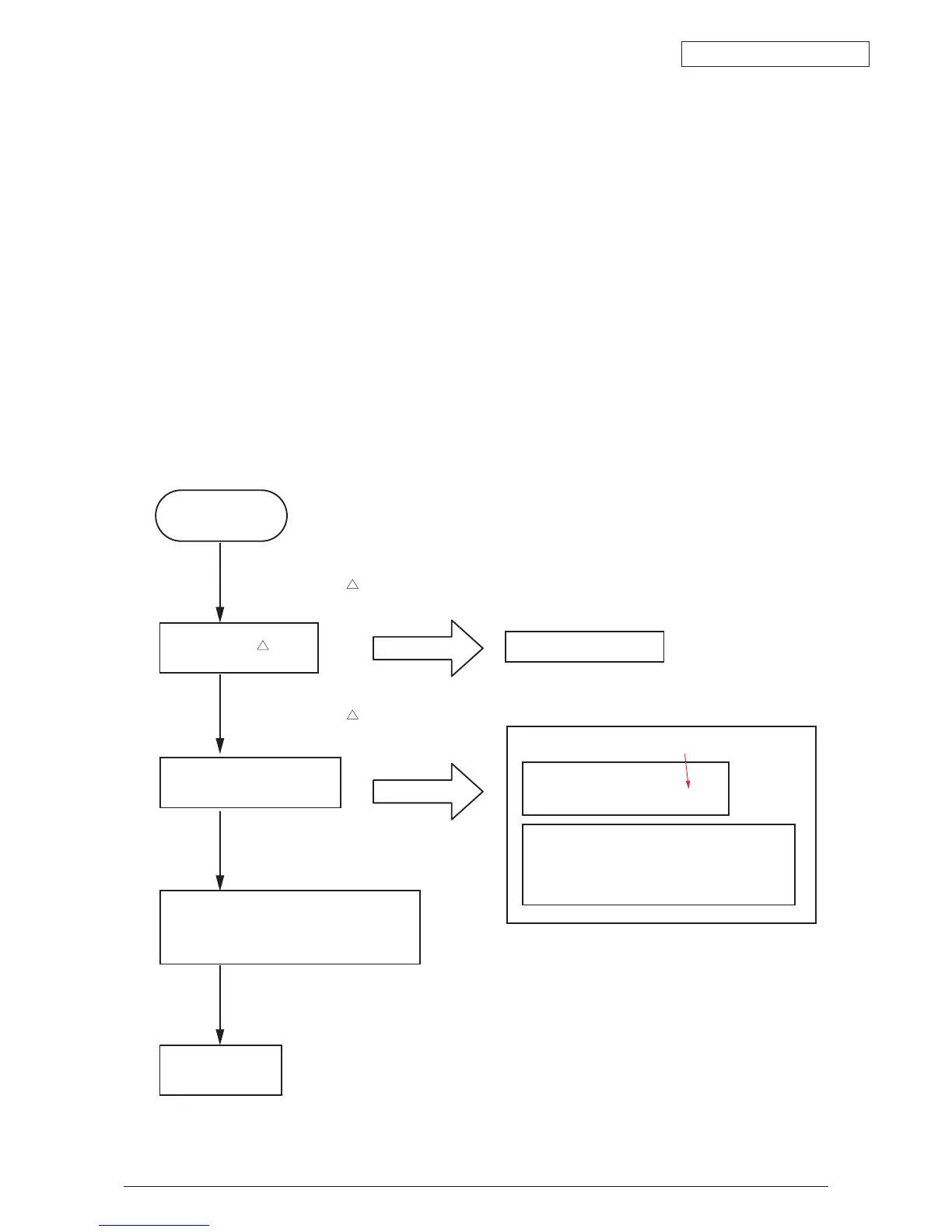

Press Triangle () Button
until Panel Display Is:
Diagnostics mode
Press the triangle ()
a few times.
Panel Display
Press Enter.
Press the triangle () a few times.
Press Enter.
Use Precision Screwdriver (Flathead) to
Turn Adjustment Screw to Adjust Value to
Range FAh to 15Eh (Target 12C (Hex)).
Turn Off Printer.
Check Panel Display Is:
Display
Display
4=
***
Weight sensor output displayed
at three asterisks [
***
].
Value changed by turning adjustment screw.
REG L/R xxx WEIGHT
1=
***
2=
***
3=
***
4=
***
SWITCH SCAN
Zero Point Value

Oki C9850 Specifications

General

Print technology	LED
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10.5 s
Print speed (black, normal quality, A3)	21 ppm
Print speed (color, normal quality, A3)	19 ppm
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Scan to	E-mail, E-mail Server, File, FTP
Scanner type	Flatbed scanner
Grayscale levels	11
Input color depth	48 bit
Output color depth	24 bit
Optical scanning resolution	600 x 600 DPI
Copier resize	25 - 400 %
Maximum number of copies	999 copies
Time to first copy (black, normal)	11 s
Time to first copy (color, normal)	12 s
Copy speed (black, normal quality, A4)	36 cpm
Copy speed (color, normal quality, A4)	30 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax transmission speed	3 sec/page
Fax speed dialing (max numbers)	500
Total input capacity	2120 sheets
Total output capacity	500 sheets
Total number of input trays	4
Multi-Purpose tray input capacity	230 sheets
Auto document feeder (ADF) input capacity	100 sheets
Internal memory	1024 MB
Card reader integrated	No
Internal storage capacity	40 GB
Sound power level (standby)	42 dB
Sound pressure level (printing)	54 dB
Display	LCD
Control type	Touch
Display diagonal	8.2 \
Market positioning	Business
Custom media width	105 - 328 mm
Maximum print size	297 x 420 mm
Custom media length	148 - 457 mm
Duplex media weight	64 - 188 g/m²
Paper tray media types	Banner, Card stock, Labels, Plain paper
Paper tray media weight	64 - 216 g/m²
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	55 - 300 g/m²
Auto Document Feeder (ADF) media weight	60 - 105 g/m²
Supported network protocols (IPv4)	POP3, APOP, SMTP, TCP/IP, ARP, IP, ICMP, TCP, UDP, LPR, FTP, HTTP, IPP, BOOTP, DHCP, SNMP, DNS, ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP
Direct printing	-
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	200 W
Power consumption (PowerSave)	55 W
Power consumption (average operating)	750 W
Dimensions (WxDxH)	672 x 889 x 1426 mm
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	copy, print, scan
Storage temperature (T-T)	-20 - 45 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month
Page description languages	PCL 5c, PCL XL, PDF 1.7, PostScript 3
Bundled software	Command WorkStation 4 Command WorkStation (Mac) EFI FreeForm EFI Mailport (Win32) EFI SendMe EMI Hot Folders Fiery Remote Scan Scansoft PaperPort SE11 Omnipage SE4 EFI Job Monitor
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger
Server operating systems supported	Windows 2000 Advanced Server, Windows 2000 Server, Windows Server 2003, Windows Server 2003 x64
Windows operating systems supported	Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional, Windows XP Professional x64
