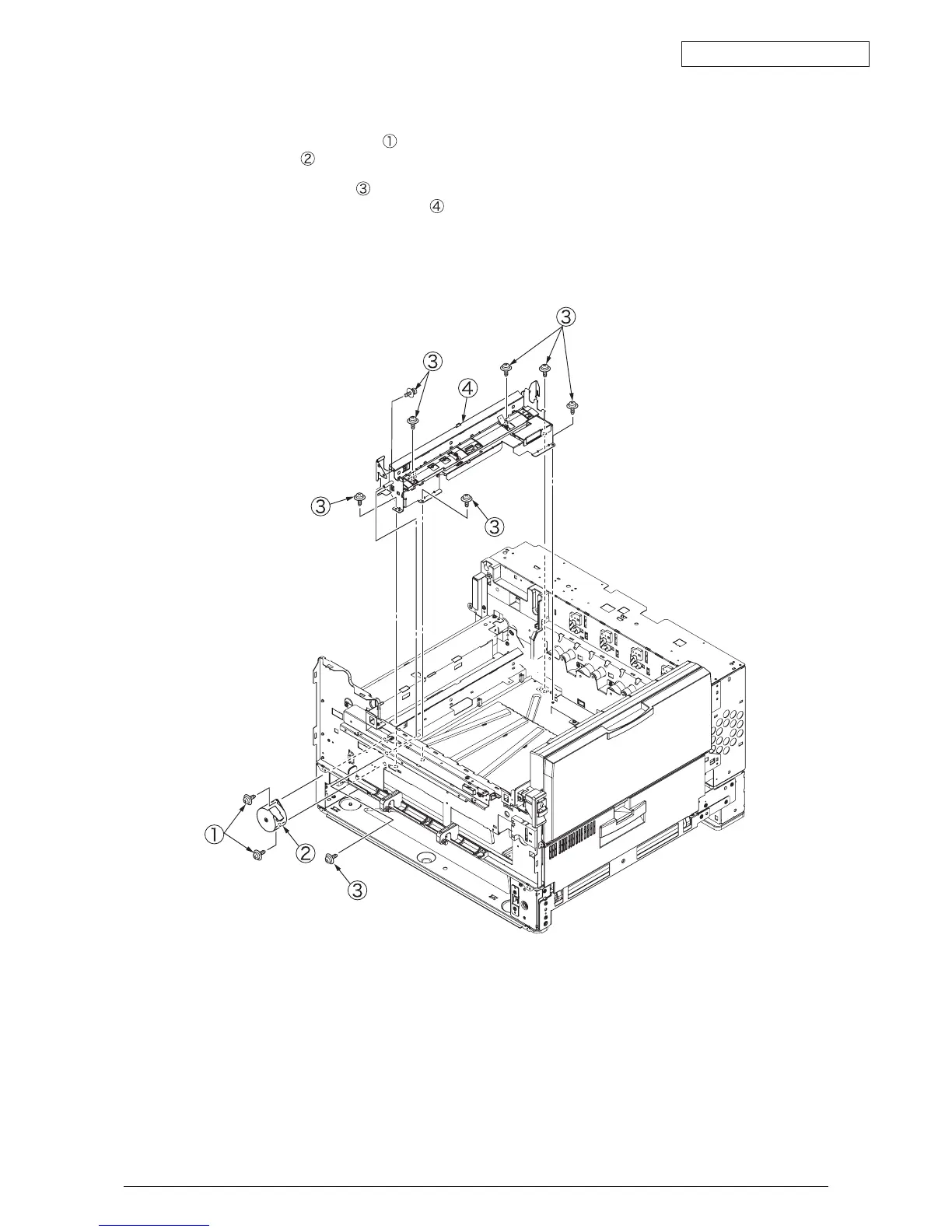

4.3.11 Motor-Pulse-Belt and Sensor-Resist-Assy
(1) Unscrew the 2 screws
, then remove the 4-pin connector and remove the Motor-
Pulse-Belt .
(2) Unscrew 7 screws
, then remove the 3 connectors (2-pin, 14-pin, 3-pin), and re-
move the Sensor-Resist-Assy .
