1.5.2 Network Interface Specifications
1.5.2.1 Network Interface
Network protocols: TCP/IP, NetWare, Ether Talk, & NetBEUI
1.5.2.2 Network Interface Connector and Cable
(1) Connector
1000 Base-T/100 Base-TX/10 Base-T
(automatically switched and not available simultaneously)

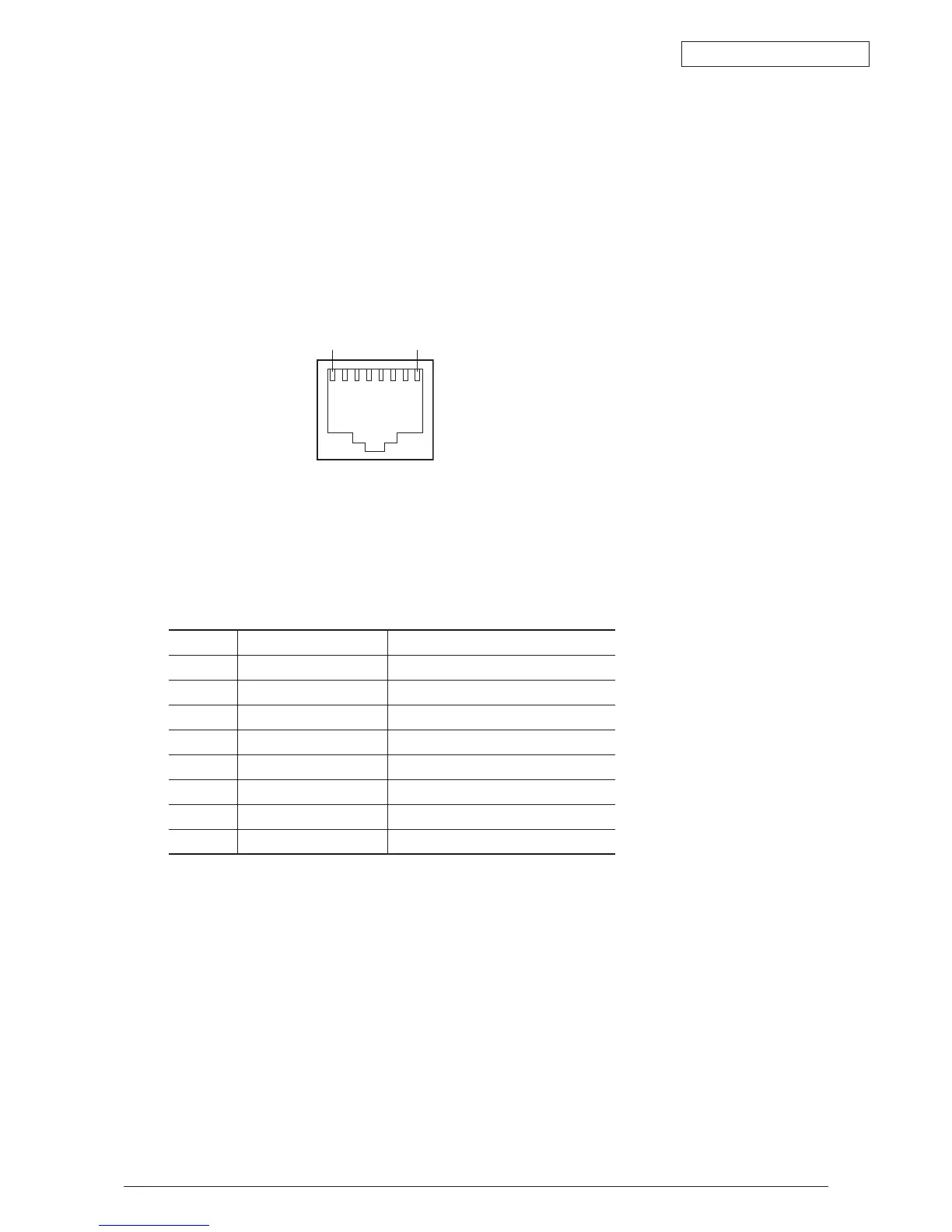

Connector pin layout
1 8
(2) Cable
Unshielded twisted pair cable with RJ-45 connector (Category 5 is recommended.)
1.5.2.3 Network Interface Signals
Pin # Signal Name Functions
BI-DA+ Bi-directional pair +A
BI-DA- Bi-directional pair -A
BI-DB+ Bi-directional pair +B
BI-DC+ Bi-directional pair +C
BI-DC- Bi-directional pair -C
BI-DB- Bi-directional pair -B
BI-DD+ Bi-directional pair +D
BI-DD- Bi-directional pair -D
