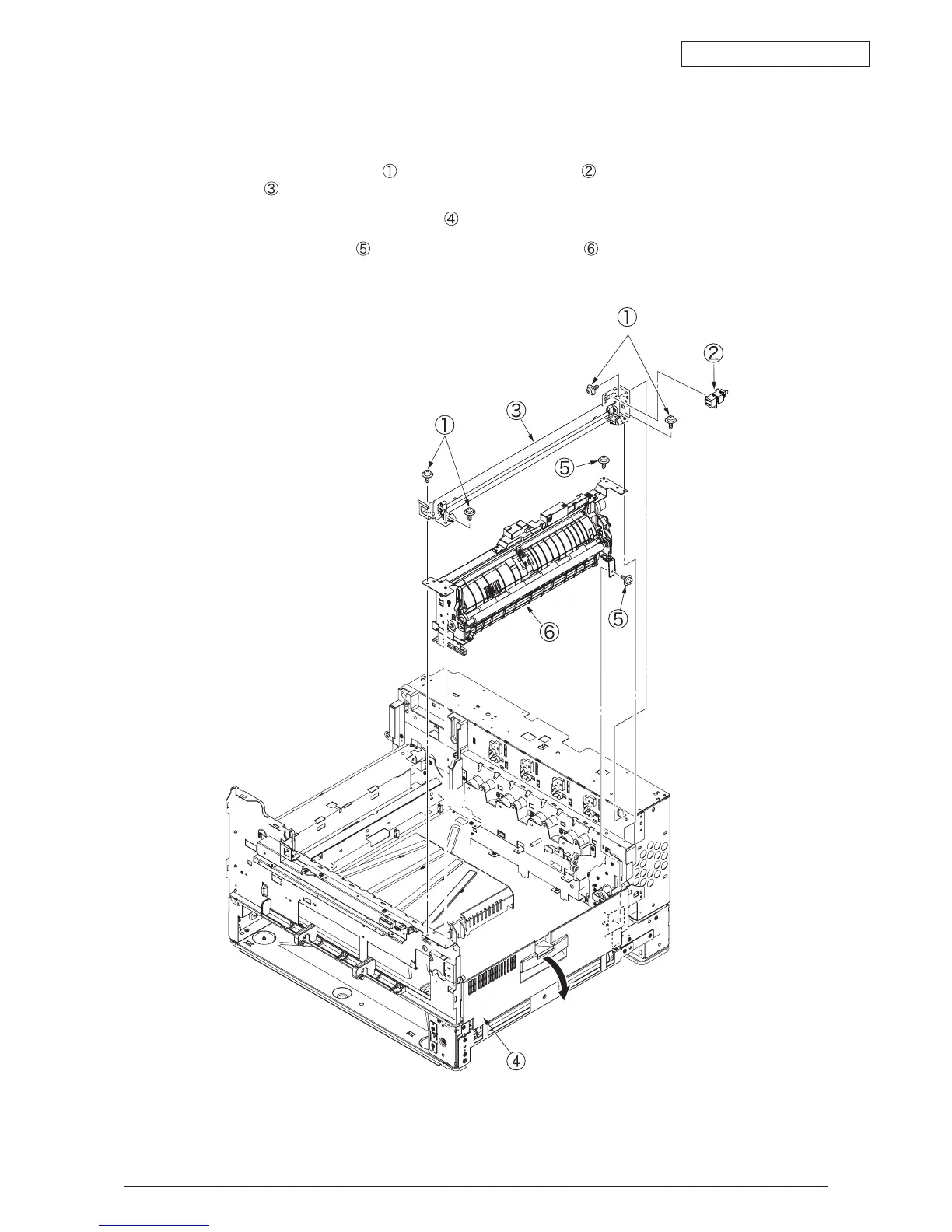

4.3.13 FDR Unit-Resist
(1) Remove the FDR Unit-MPT. (Refer to Section 4.3.12)
(2) Unscrew the 4 screws
and disconnect connector , then remove Plate Assy-MPT
Lock .
(3) Open the Cover-Guide-1st-Assy
in the arrow direction.
(4) Unscrew 2 screws
, then remove FDR Unit-Resist .
