2.9 Cover Open

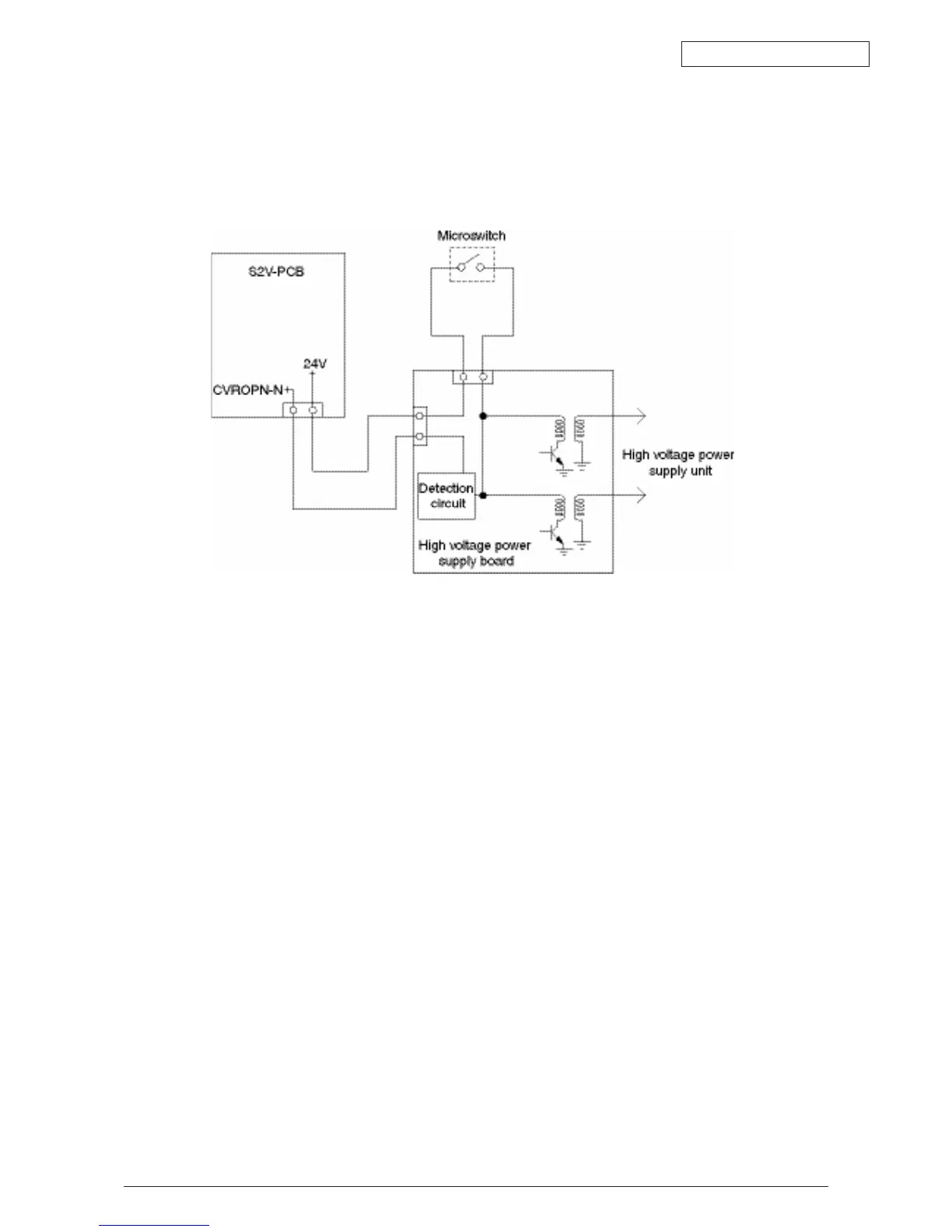

If the top cover of the C9850/C9650 is open, the cover open micro switch turns OFF. Then the 24V
to high voltage power source, and high voltage output is shutdown. At the same time, the
CPU receives a COVOPN signal indicating the micro-switch state, to proceed with cover open
processing.
