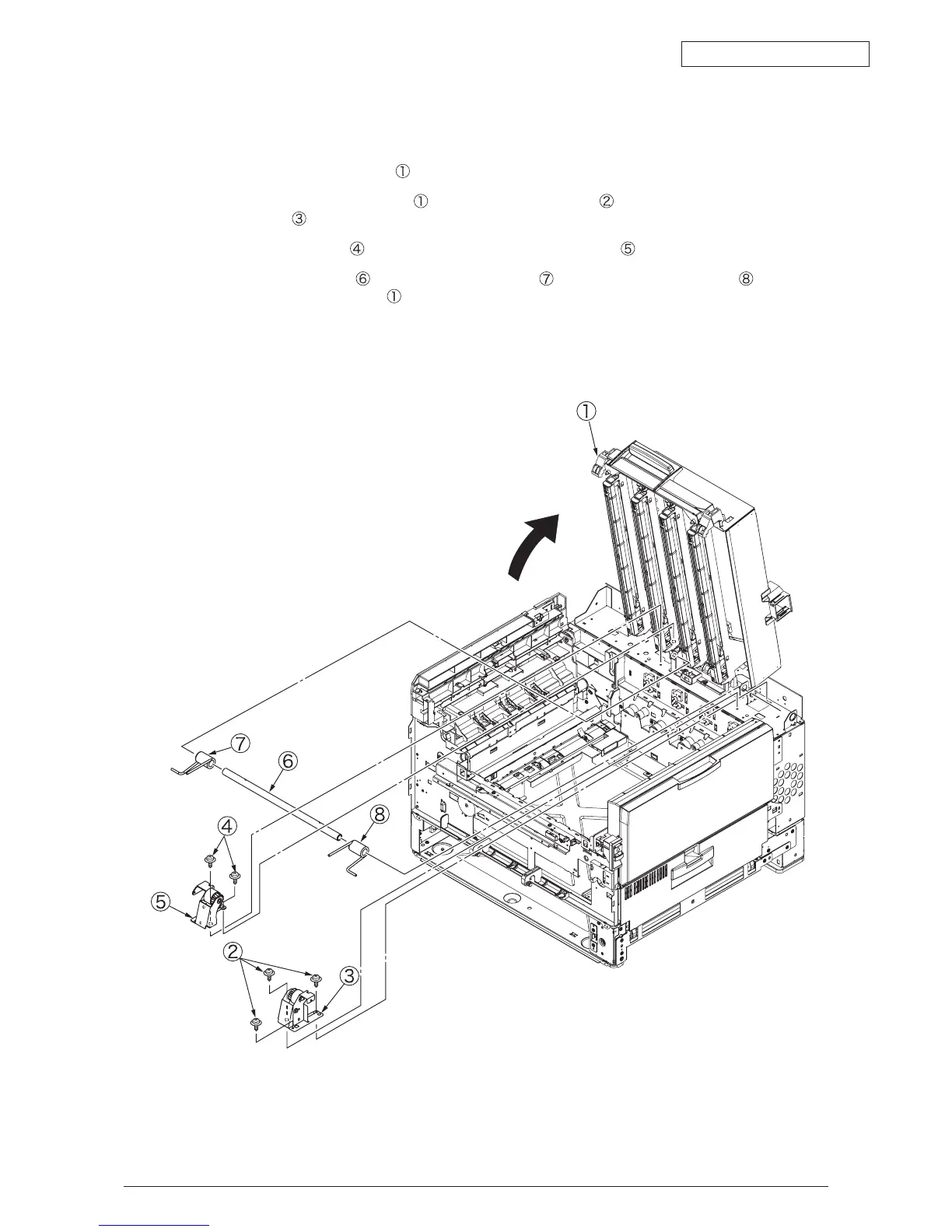

4.3.9 Plate Top Assy
(1) Remove Job-Offset-Assy 723/Basket-Assy. (Refer to Section 4.3.6)
(2) Lift back Plate-Top Assy
.
(3) Lift forward Plate-Top Assy
, then unscrew 3 screws and remove Plate-Dumper-
Assy (R) .
(4) Unscrew 3 screws
, then remove Plate-Dumper-Assy (L) .
(5) Remove Shaft-Top
, Spring-Torsion-BAS (L) , and Spring-Torsion-Top-R , then
remove Plate-Top Assy .
