Oki Data CONFIDENTIAL
1.5 Interface Specifications
1.5.1 USB Interface Specifications
1.5.1.1 USB Interface Overview
(1) Basic Specifications
USB 2.0 Compliant
(2) Transfer Mode
Full Speed (max. 12Mbps+0.25%)
High Speed (max. 480Mbps+0.05%)
(3) Power Control
Self-Power Device
1.5.1.2 USB Interface Connector and Cable
(1) Connector
Printer-Side B Receptacle (Female)
UP Stream Port
UBB-4R-D14T-1 (JST Mfg. Co., Ltd.) equivalent product

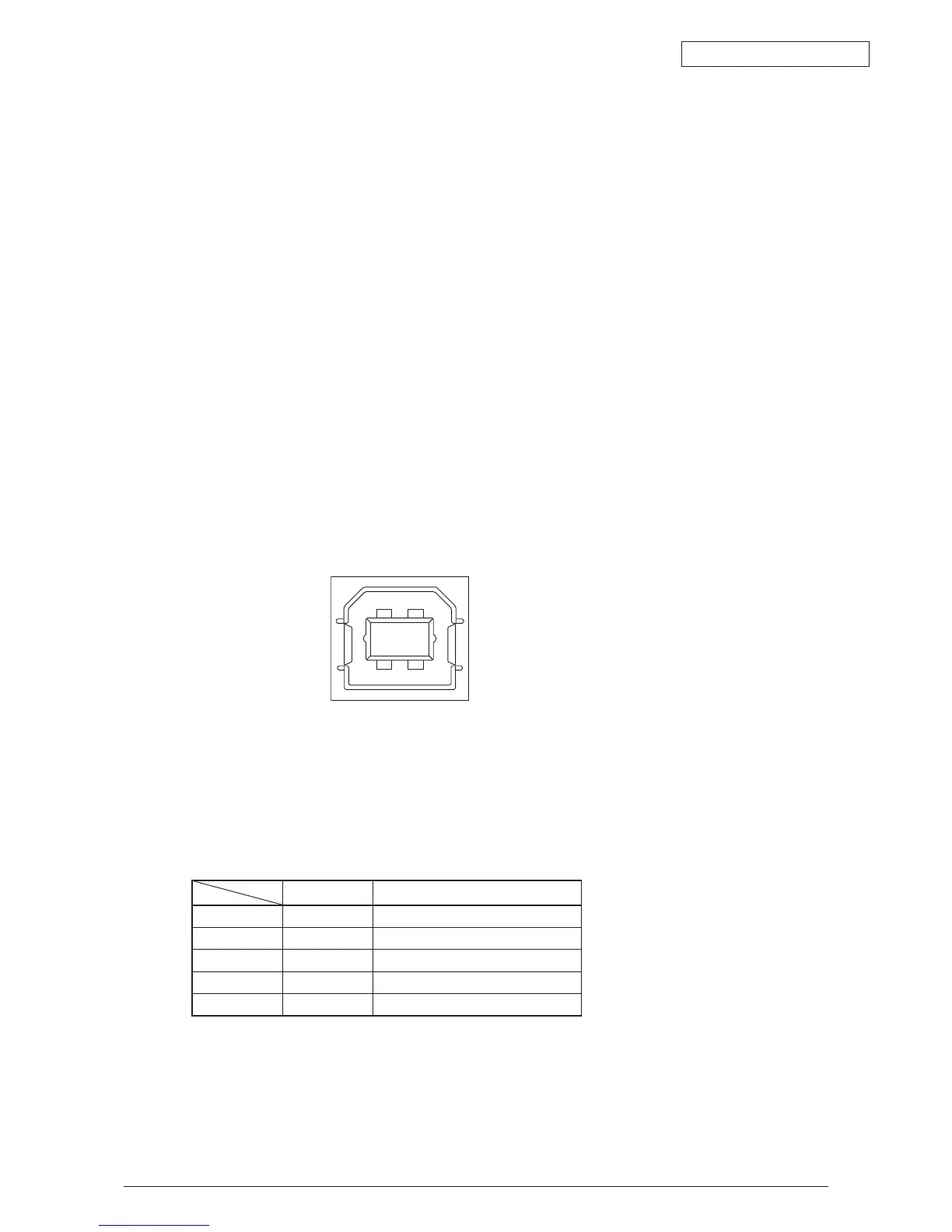

Connector Pin Layout
2
3 4
1
Cable: B Plug (Male)
(2) Cable
Cable Length: <2m USB 2.0 cable recommended.
(Use a cable with shielded wire)
1.5.1.3 USB Interface Signal
R1 Function
1 Vbus Power Source (+5V) (Red)
2 D- Data Transfer (White)
3 D+ Data Transfer (Green)
4 GND Signal GND (Black)
Shell Shield
43627911TH Rev. 3
15 /
