Main Motor (C)
Main Motor (K)
MT Resist Motor

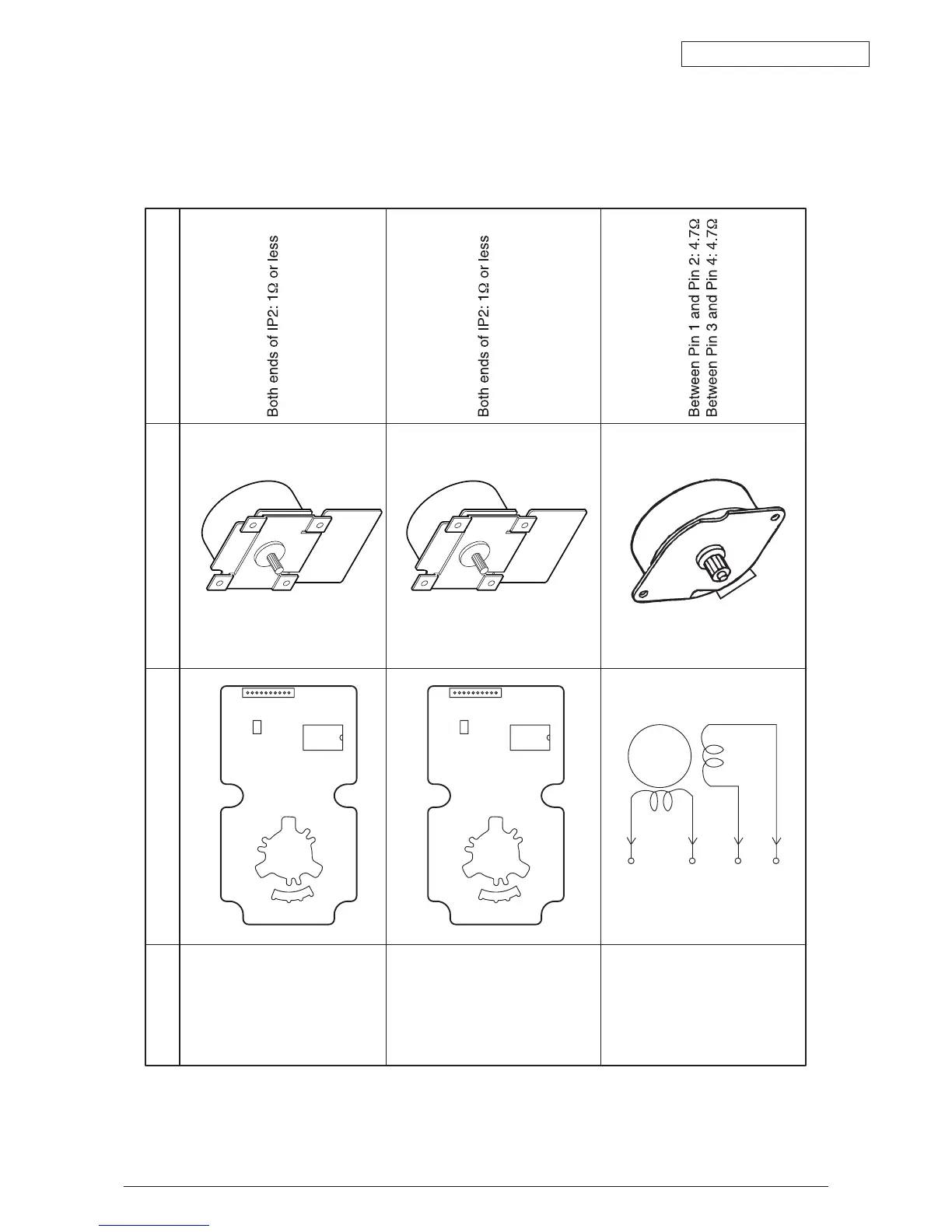

Unit Circuit Diagram and Configuration Parts Diagram Resistance Value
M
1 2 3 4
IC1
IP2
IC1
IP2
