(5) ID Unit Up/Down Operations
1. The C-ID motor drives the ID unit up and down.

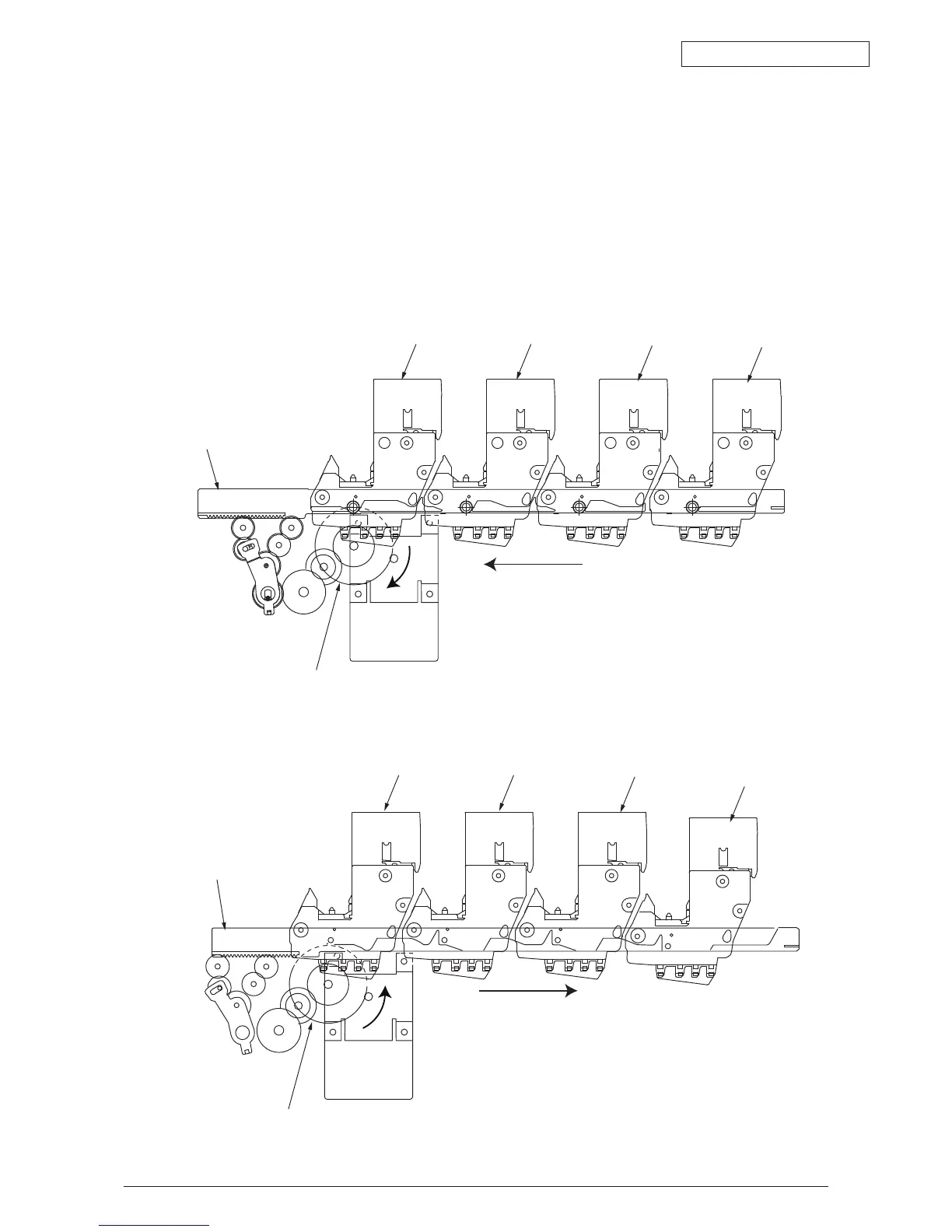

2. Figure 2-9-a indicates ID unit operations during color printing. When the C-ID
motor rotates (CCW), the lift uplink slides to the left, and as indicated in Figure
2-9-a, each ID unit moves DOWN. The printer is now ready for color printing.
3. Figure 2-9-b indicates the ID unit operations during monochrome printing. When
the C-ID motor rotates (CW), the lift uplink slides to the right, and as indicated
in Figure 2-9-b, all units other than the K-ID moves UP. The printer is now ready
for black-and-white printing.
ID Unit Operations During Color Printing
C-ID Unit : Down
C-ID Unit M-ID Unit
Y-ID Unit
K-ID Unit
M-ID Unit : Down
Y-ID Unit : Down
K-ID Unit : Does not move.
Lift uplink
C-ID Motor
(Rotates clockwise)
Figure 2-9-a
ID Unit Operations During Monochrome Printing
C-ID Unit : Lift up
C-ID Unit M-ID Unit
Y-ID Unit
K-ID Unit
M-ID Unit : Lift up
Y-ID Unit : Lift up
K-ID Unit : Does not move.
Lift uplink
C-ID Motor
(Rotates counterclockwise)
Figure 2-9-b
