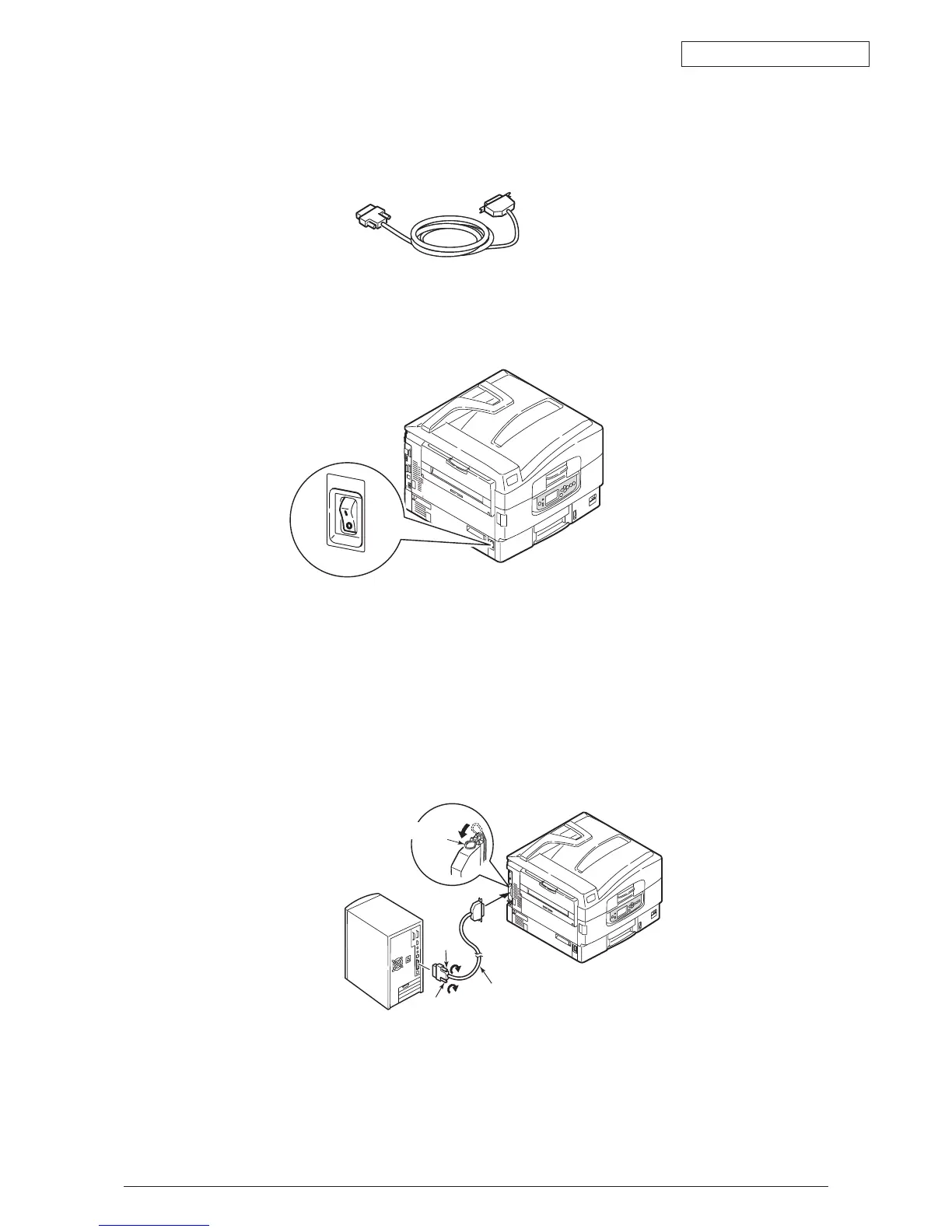

(3) Parallel Connection
1. P
repare a parallel cable.
2. Power off Printer and Personal Computer
3. Connect Personal Computer and Printer
(1) Connect a parallel cable into a parallel interface connector of printer and use
metal fittings to secure the cable.
(2) Connect a parallel cable into a parallel interface connector of PC and use screw
to secure the cable.
OFF
Parallel cable
Screw
Screw
Metal fittings
