Oki MC873dn User Manual

45850101TH Rev.1
3-14
Oki Data CONFIDENTIAL

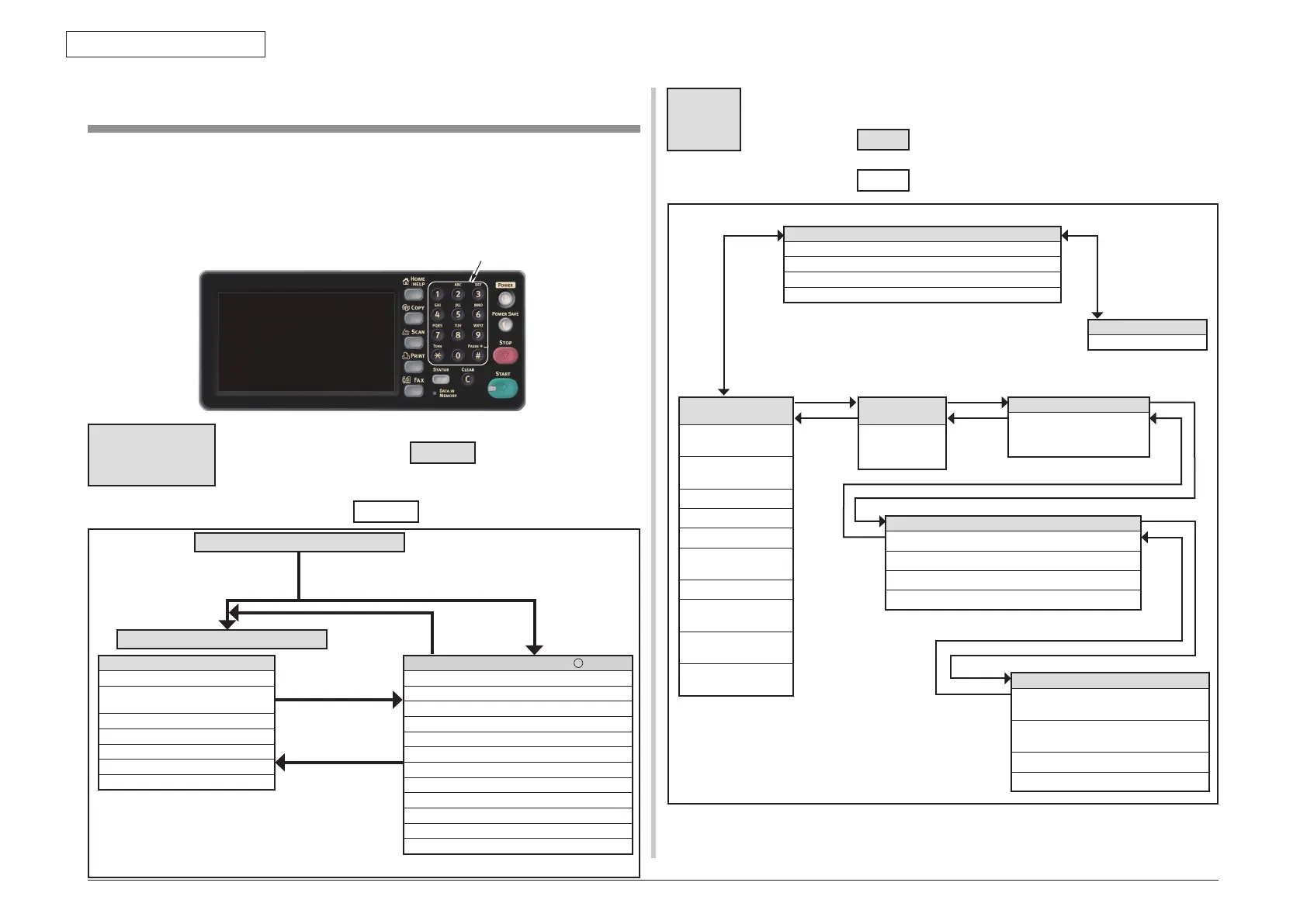

3. MAINTENANCE MENUS
Numerical
keypad
Self-diagnostic
mode layout
(Overall)
(1) Menu option display switching
The level in a shaded area
XXXXX
can be displayed only from
another one.
Use the [2] or [8] button to display the menu option shown in a
non-shaded area
XXXXX
.
LEVEL0- engine status display
Engine status display
Each voltage display category in
printing
Toner sensor monitor
Toner pulse count monitor
RFID tag noise test monitor
Motor control evaluation function
Error code
DIAGNOSTIC MODE XX.XX.XX -MODE
SWITCH SCAN
MOTOR&CLTCH TEST
TEST PRINT
REG ADJUST TEST
DENS ADJUST TEST
CONSUMABLE STATUS
PRINTER STATUS
FACTORY MODE SET
SENSOR SETTING
LE D HEA D DATA
NVRAM PARAMETER
DRUM CLEANING
POWER ON
Normal operation mode
Press[6]
Press[6]
No buttons pressed
1.Select the "Device Settings" by touch panel.
2.Enter [#]
→
[0]
→
[1]
→
[0]
→
[3]
→
[*] at "Device Settings" display.
3.Enter the password "000000" and touch [OK] button.
4.Select the "Print Maintenance"
→
"Engine Diag Mode"
LEVEL0
(1) Menu option display switching
Use the [4] or [*] or [2] or [8] button to display the option shown in a
shaded area
XXXX
.
Use the [2] or [8] button to display the menu option shown in a non-
shaded area
XXXX
.
Each voltage display
category during printing
Transfer (TR) voltage(1)
*1
Transfer (TR) voltage(2)
*1
Charge (CH) voltage(1)
Charge (CH) voltage(2)
Supply (SB) voltage
Development (DB)
voltage
Environmental level
Development (DB)
voltage (AFTER)
Development (DB)
voltage (BEFORE)
Transfer (TR) voltage(3)
*1
[2]
[8]
*1: Pressing the [#]
button switches the
voltage, which is
displayed for a color,
to that for another
color.
Toner sensor
monitor
Toner sensor
status monitor
display
[2]
[8]
Toner pulse count monitor
Each color toner FULL/
Number of LOW-pulse
detections
[4]
[*]
Error code
Error code display, etc.
Engine status display
Heater temperature
Environmental information
Low-voltage thermistor temperature
Belt thermistor temperature
Press [4]
[2]
[8]
Motor control evaluating functions
Regist Motor Constant-Speed Timer
Value/ Environmental Temperature
Fusing Motor Constant-Speed Timer
Value/ Fusing Target Temperature
ID Motor Constant-Speed Timer Value
BELT Motor Constant-Speed Timer Value
[8]
RFID tab noise test monitor
Display of number of noise detections/ Toner K error
Display of number of noise detections/ Toner Y error
Display of number of noise detections/ Toner M error
Display of number of noise detections/ Toner C error
[2]
3.4 Self-diagnostic mode
This section describes LEVEL 0 and LEVEL 1.
3.4.1 Operator panel
The following description on operating the self-diagnostic is provided, premised on the
following operator panel layout:

Oki MC873dn Specifications

General

Duplex printing	Yes
Print technology	LED
Maximum resolution	1200 x 600 DPI
Time to first page (black, normal)	9.5 s
Print speed (black, normal quality, A3)	20 ppm
Print speed (black, normal quality, A4/US Letter)	35 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 1200 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	10 s
Copy speed (black, normal quality, A4)	35 cpm
Scan to	CIFS, E-mail, FTP, HTTP, Image, USB
Scan drivers	TWAIN
Scanner type	ADF scanner
Output color depth	24 bit
Scan speed (color)	50 ppm
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Optical scanning resolution	600 x 600 DPI
Faxing	Color faxing
Fax memory	8 MB
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	1000
Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	75000 pages per month
Page description languages	Epson FX, IBM ProPrinter, PCL 5c, PCL 6, PDF 1.7, PostScript 3
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Security algorithms	802.1x RADIUS, EAP, SSL/TLS, WPA2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols (IPv4)	TCP, DHCP, DHCPv6, BOOTP, HTTP, HTTPS, DNS, DDNS, WINS, , UPNP, Bonjour, SNMPv1&v3, SNTP, IPP, IPPS, WSD Print, WSD Scan, LLTD, IEEE802.1X, LPR, Port9100, Telnet, FTP, IPSEC, SecureProtocolServer, LDAP, LDAPS, CIFS, FTP, FTPS, SMTP, SMTPS, POP3
Internal memory	1260 MB
Internal storage capacity	250 GB
Sound power level (standby)	37 dB
Sound pressure level (printing)	54 dB
Paper input type	Paper tray
Total input capacity	300 sheets
Maximum input capacity	400 sheets
Total number of input trays	1
Auto document feeder (ADF) input capacity	100 sheets
Envelopes sizes	10, C4, C5, DL, Monarch
Custom media width	148.5 - 297 mm
Custom media length	210 - 431.8 mm
Paper tray media types	Banner, Envelopes, Plain paper
Paper tray media weight	64 - 220 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B4, B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	64 - 256 g/m²
Auto Document Feeder (ADF) media weight	60 - 120 g/m²
Display	LCD
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Standard interfaces	Ethernet, RJ-11, USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	2
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1400 W
Power consumption (off)	0.1 W
Power consumption (sleep)	3 W
Power consumption (PowerSave)	30 W
Power consumption (average operating)	850 W
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	0 - 43 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	600 mm
Width	563 mm
Height	700 mm
