Oki MC873dn - 5 Regular Maintenance; Cleaning of LED Lens Array

Oki Data CONFIDENTIAL
5. REGULAR MAINTENANCE
45850101TH Rev.1
5-3

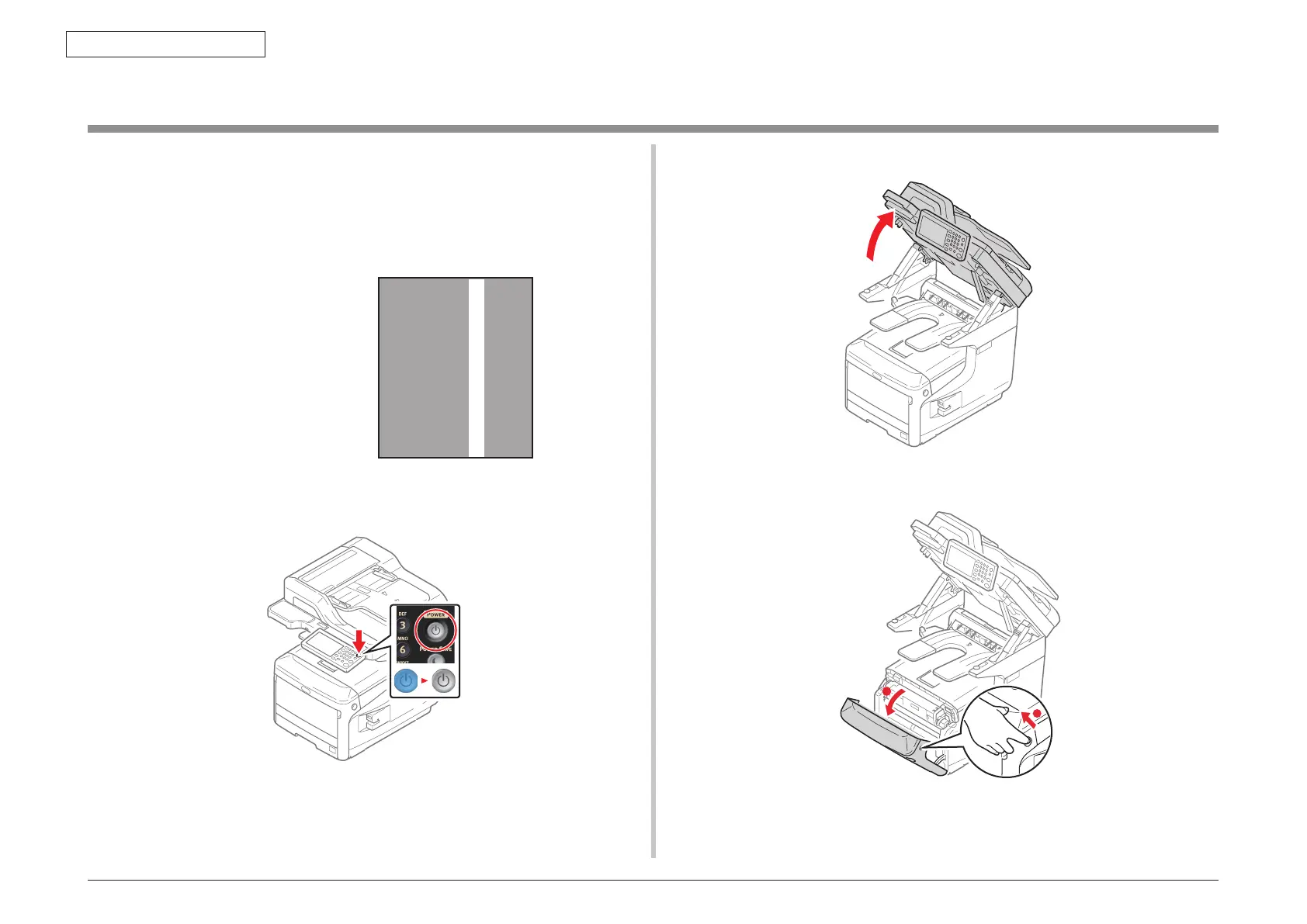

5.2 Cleaning of LED lens array
(3) Insert your finger into the recess (a) on the right side of the machine and
pull the front cover open lever to open the front cover forward (b).
While lines or
White belt
(White spot, pale pr
inting)
If the vertical white lines, and white belt (white spot, pale printing) occur in printing
as shown below, the LED lens array should be cleaned or the toner cartridge should
be replaced.
Note! As for the LED lens array, clean it with soft tissues or soft cloth after
eliminating static electricity of a maintenance tool.
(1) Power off the MFP.
(2) Open the scanner unit.
a
b
