Oki MC873dn - Motor Assy.-Belt and Motor Assy-ID

45850101TH Rev.1
4-50
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS
4.2.26 Motor Assy.-belt and motor Assy-ID

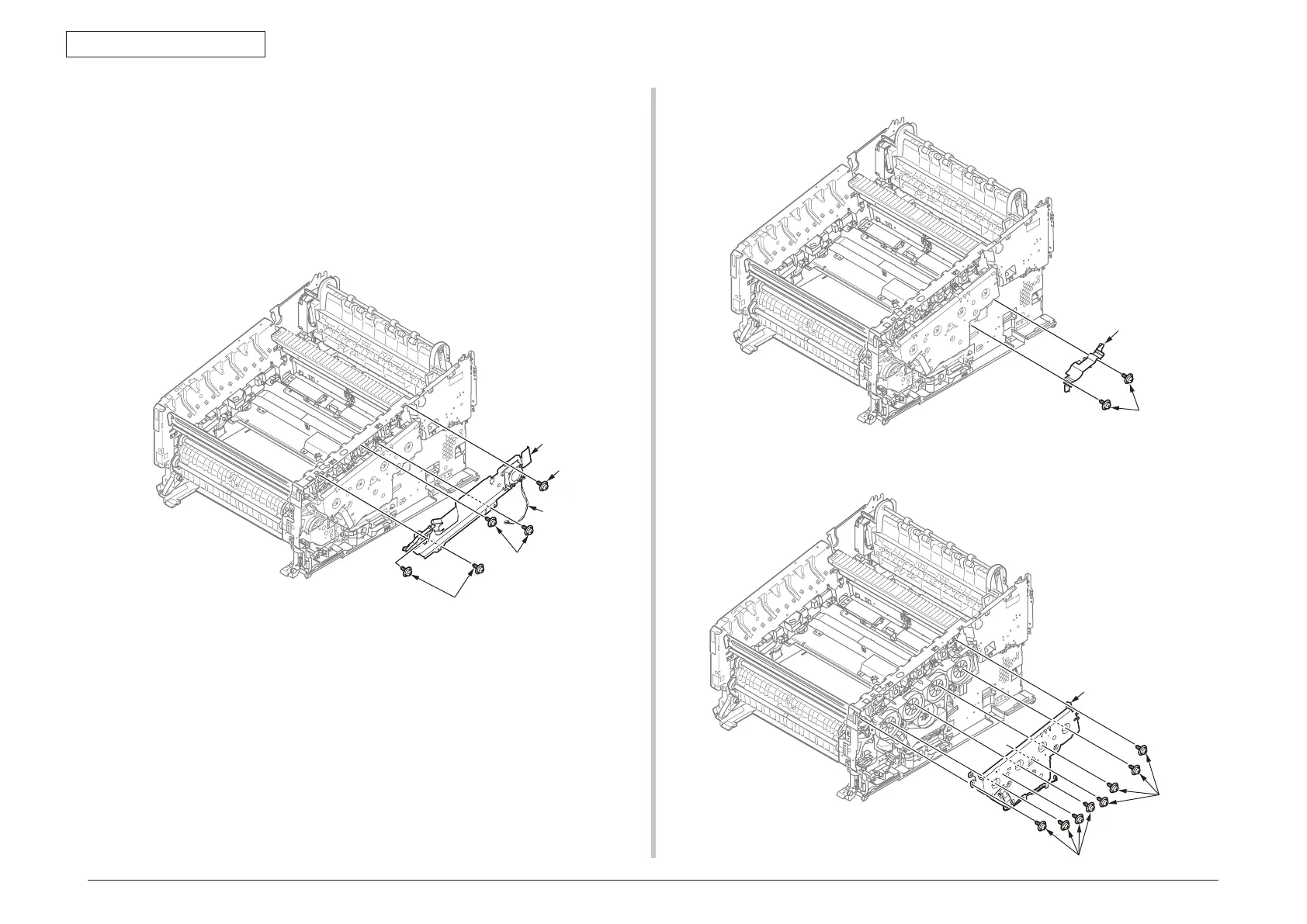

(1) Remove the main board Assy. (board Assy-6CU). (Refer to section 4.2.8)
(2) Remove the Plate-Stay(R), Plate-Board-R-Assy and Plate-Support(Stay). (Refer to
section 4.2.16)
(3) Disconnect the cable
①
from the clamp.
(4) Remove the five screws (silver)
②
and detach the plate Assy.-toner
③
.
②
②
②
③
①
⑥
⑥
⑦
(6) Remove the eight screws (silver)
⑥
and detach the plate Assy. ID gear
⑦
.
④
⑤
(5) Remove the two screws (silver/8mm)
④
and detach the cover gear belt
⑤
.
