45850101TH Rev.1
4-51
⑭

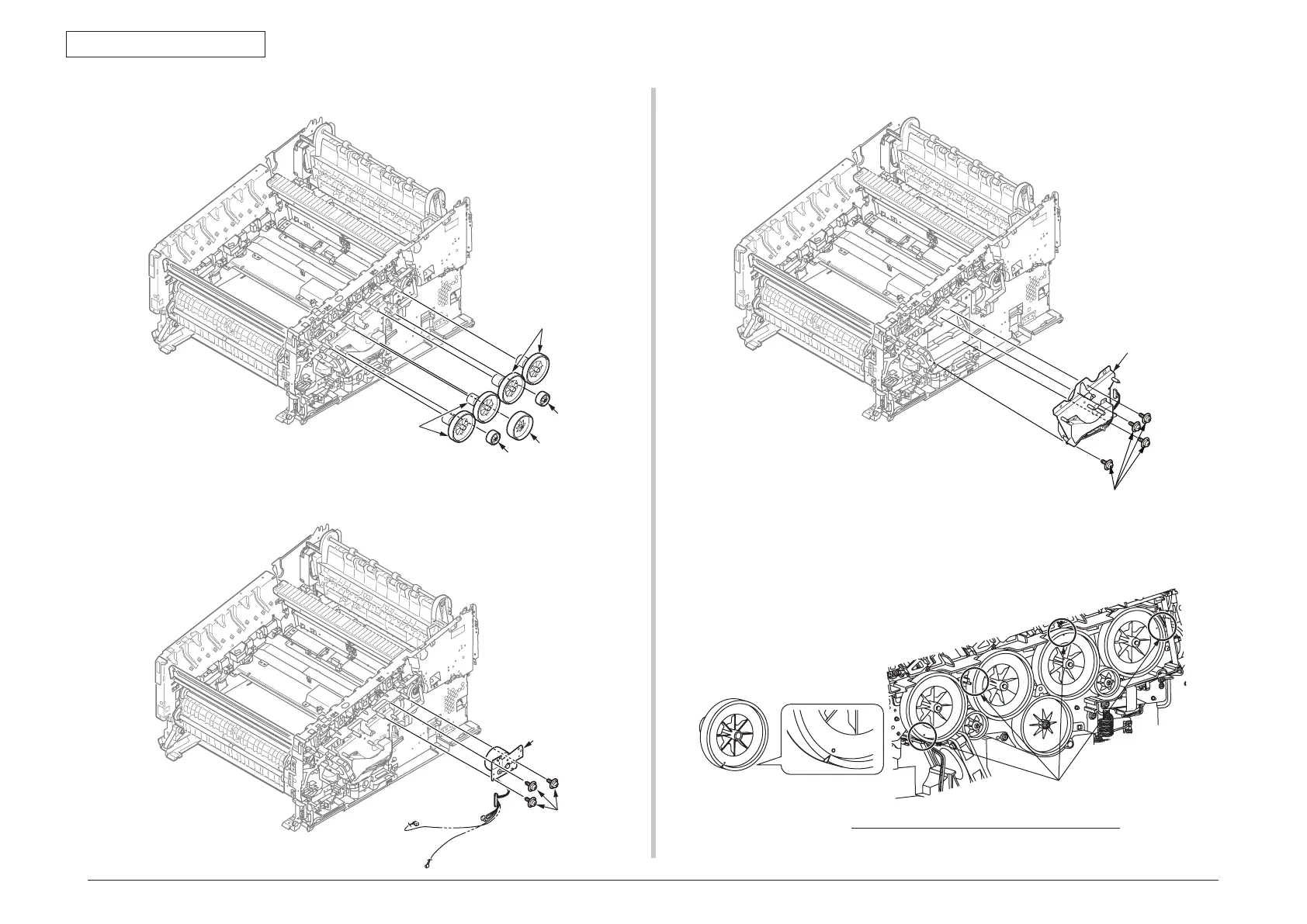

(7) Remove the gear-idler-A
⑧
, the gear-idler-B
⑨
, and the gear-reduction ID
⑩
.
(8) Remove the three screws (silver)
⑪
and the motor Assy. belt
⑫
.
(9) Remove the four screws (silver/8mm)
⑬
and detach the motor Assy-ID
⑭
.
⑧
⑨
⑩
⑩
⑫
Notes on attaching:
Adjust the phase between gears to assemble the gear-reduction ID.
Illustration of phase adjustment of gear-reduction ID
Phase adjustment
