45850101TH Rev.1
4-46

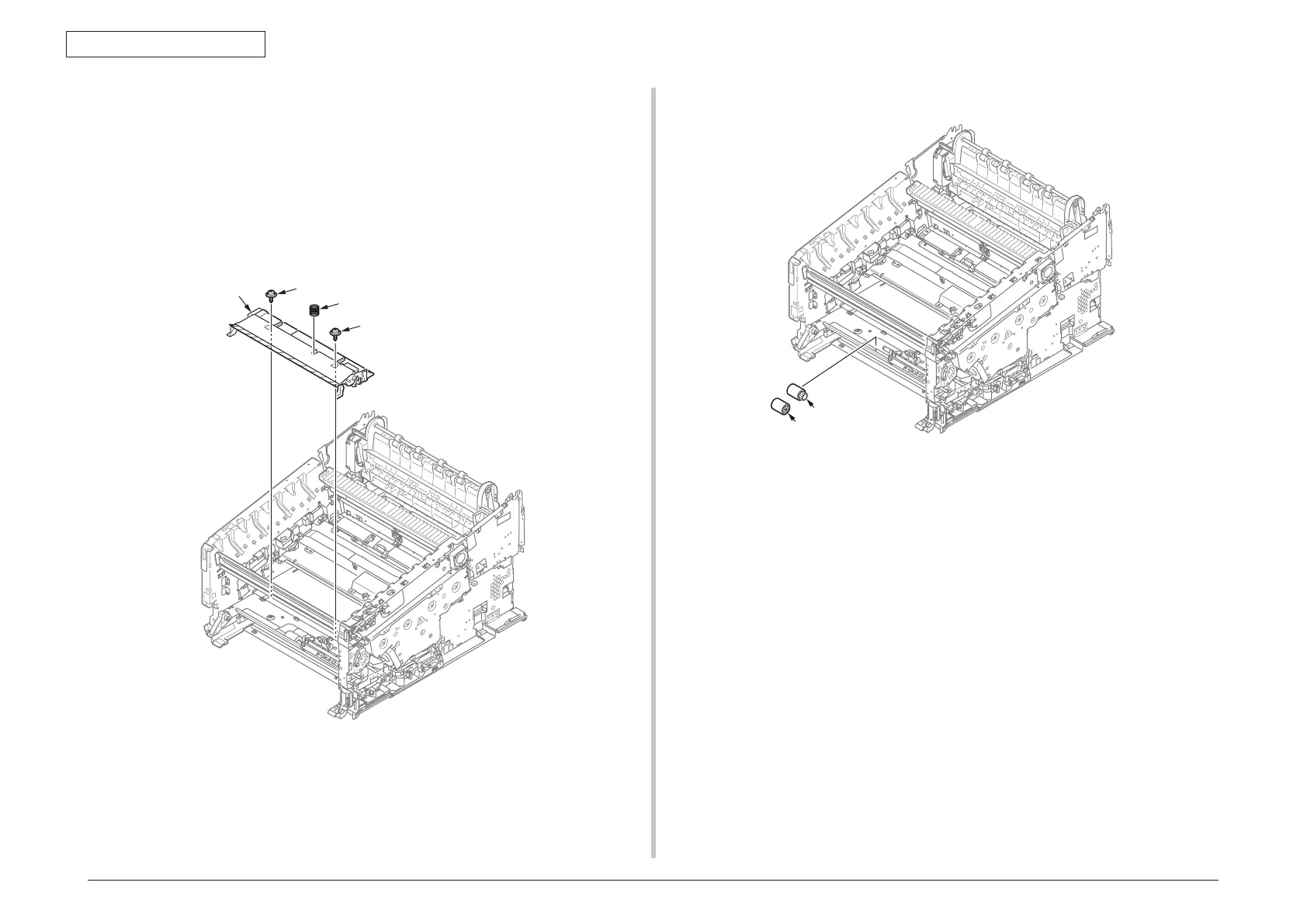

4.2.24 Roller-feed, roller-pickup, frame Assy.-pickup,
and holder sensor Assy.
(1) Remove the roller Assy.-registration. (Refer to section 4.2.23)
(2) Remove the spring-pickup
①
.
(3) Remove the two round-head screws (black)
②
, disconnect the cable from the
clamp, and detach the cover Assy. hopping
③
.
②
①
⑤
(4) Remove the roller-feed
④
and the roller-pickup
⑤
.
To Next Page
