4. REPLACEMENT OF PARTS
4.2.32 Guide Assy.-Side-L / Rack-L
(1) Refer to section 4.2.27.

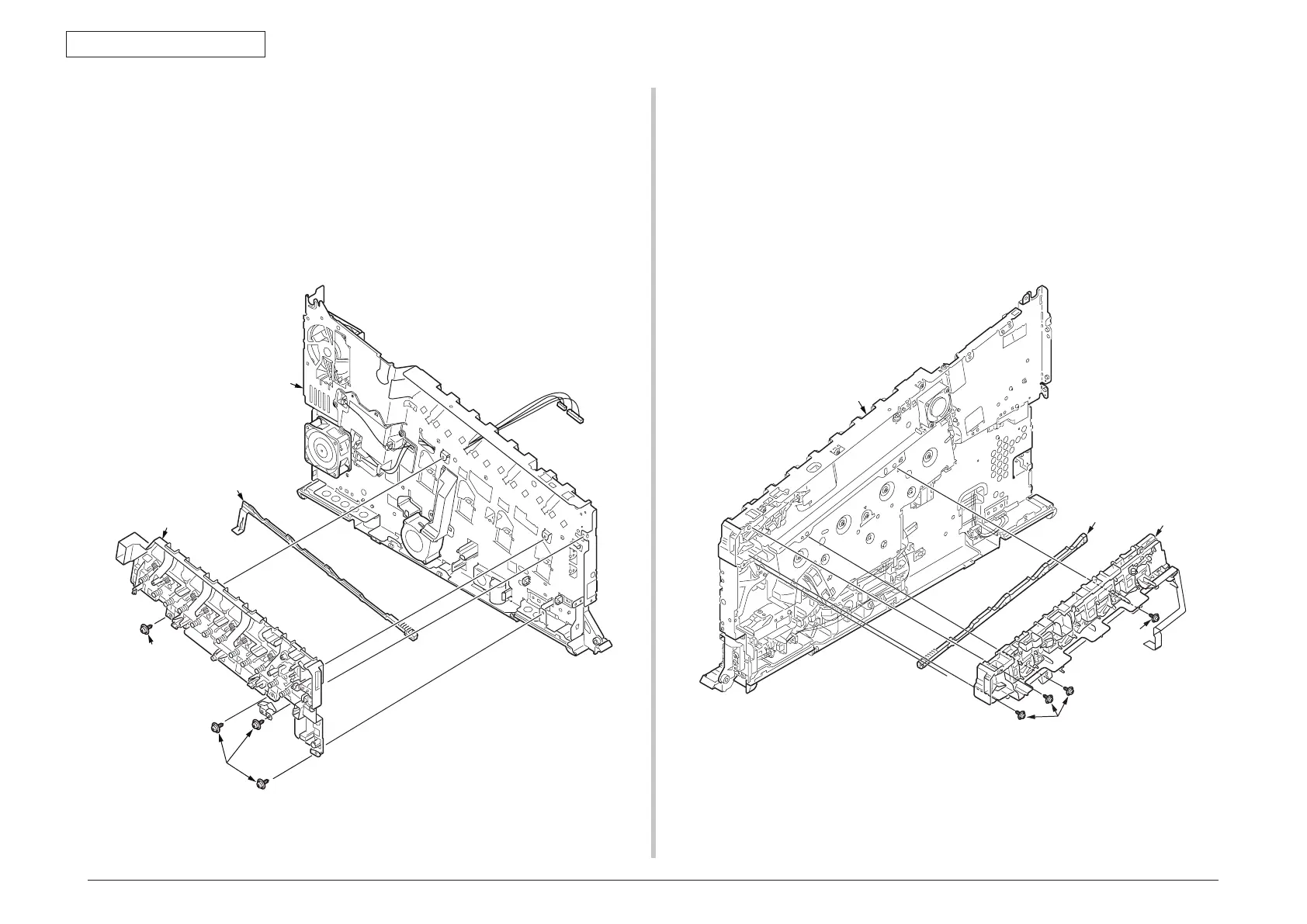

(2) Remove four screws(silver)
①
to detach Guide Assy.-Side-L
②
and Rack-L
③
.
Notes on attaching:
To assemble the gear lift-up, match the phase of the right and left gears.(Refer to
the 'Notes on attaching' in the section 4.2.24.)
4.2.33 Guide Assy.-Side-R / Rack-R
(1) Refer to section 4.2.27.
(2) Remove four screws(silver)
①
to detach Guide Assy.-Side-L
②
and Rack-L
③
.
Notes on attaching:
To assemble the gear lift-up, match the phase of the right and left gears.(Refer to
the 'Notes on attaching' in the section 4.2.24.)
②
①
①
③
Plate Assy.-Side-L
①
①
③
②
Plate Assy. Side-R
