4. REPLACEMENT OF PARTS

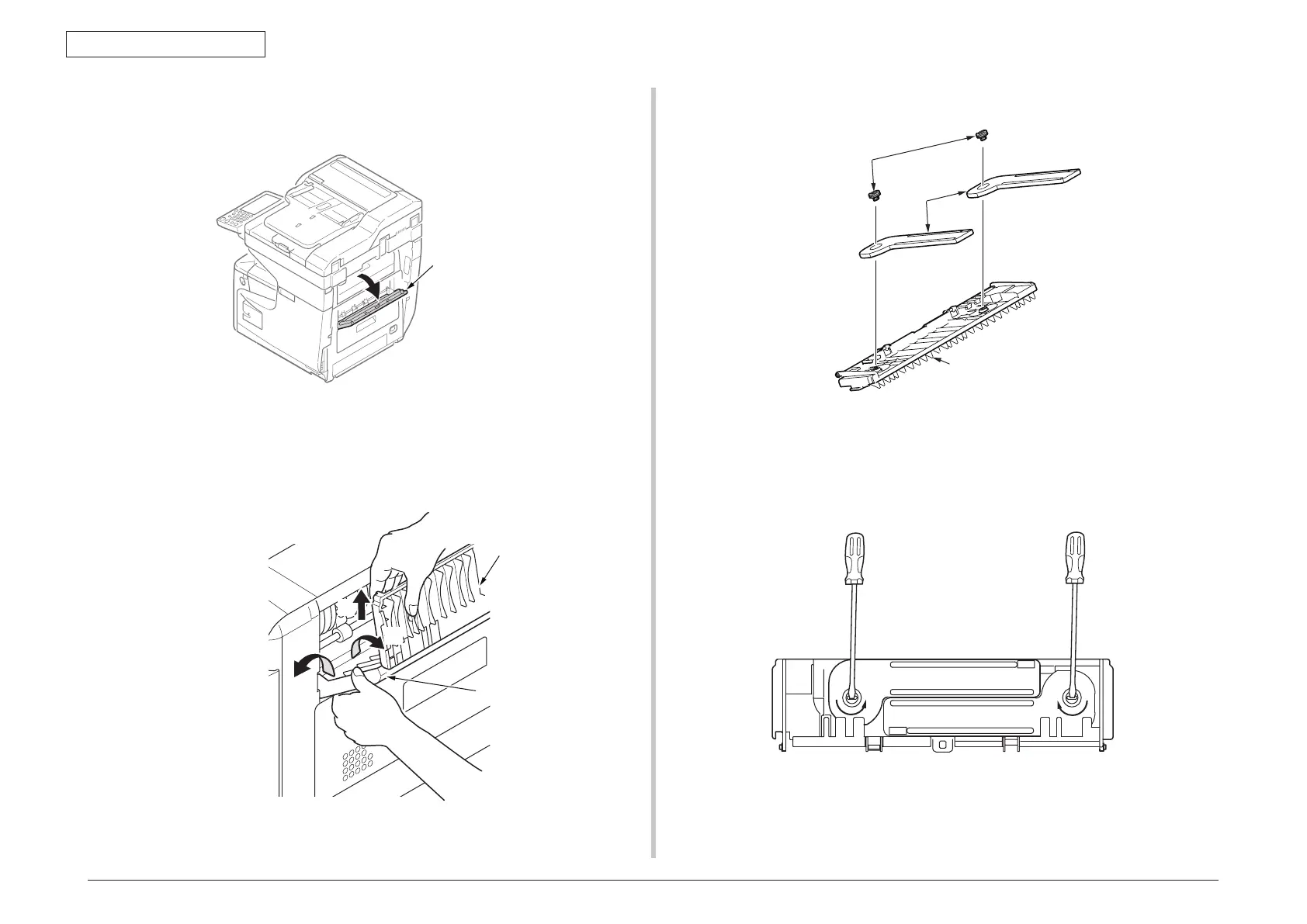

4.2.34 Cover-FaceUP-B
(1) Open the Cover Assy.-FaceUP.
Cover Assy.-F
aceUP
(2) To detach the Cover-FaceUP-B
①
as following steps.
(a) : Turn around to about 90 degree the Cover-FaceUP-B
①
as against the Cover-
FaceUP-A.
(b) : Warp the Cover-FaceUP-A to out side as the following figure.
(c) : Pull up and detach the Cover-FaceUP-B
①
from the Cover-FaceUP-A.
(b)
(a)
(c)
Cover-FaceUP-
A
①
(3) Detach the Shoulder-Lock
②
from the Cover-FaceUP-B
①
by using the tool whose
head is flat(ex. flat-blade screwdriver), and remove two Support-Papers
③
.
②
③
①
Notes! The rotation direction of to detach Shoulder-Locks
②
.
<Direction of to rotate for Shoulder-Locks
②
>
The Shoulder-Lock
②
of the left side is detached with to be rotated in a
counterclockwise direction and right side is detached with to be rotated in a clockwise
direction.
