4.3 Portions Lubricated
Portions lubricated are shown in this section. The other portions must not be lubricated.
Lubrication is not required during assembly or disassembly, except that the lubricant specified
must be applied to portions from which lubricant was wiped.
Lubrication work
(1) Lubricant names and their abbreviations
EM-30L: MOLYKOTE EM-30L
EM-D110: MOLYKOTE EM-D110
HP-300: MOLYKOTE HP-300
PM: Pan motor oil 10W-40 or ZOA 10W-30
FL: FLOIL GE334C
HANARL: HANARL SF-133
C-9300: Tetra C-9300

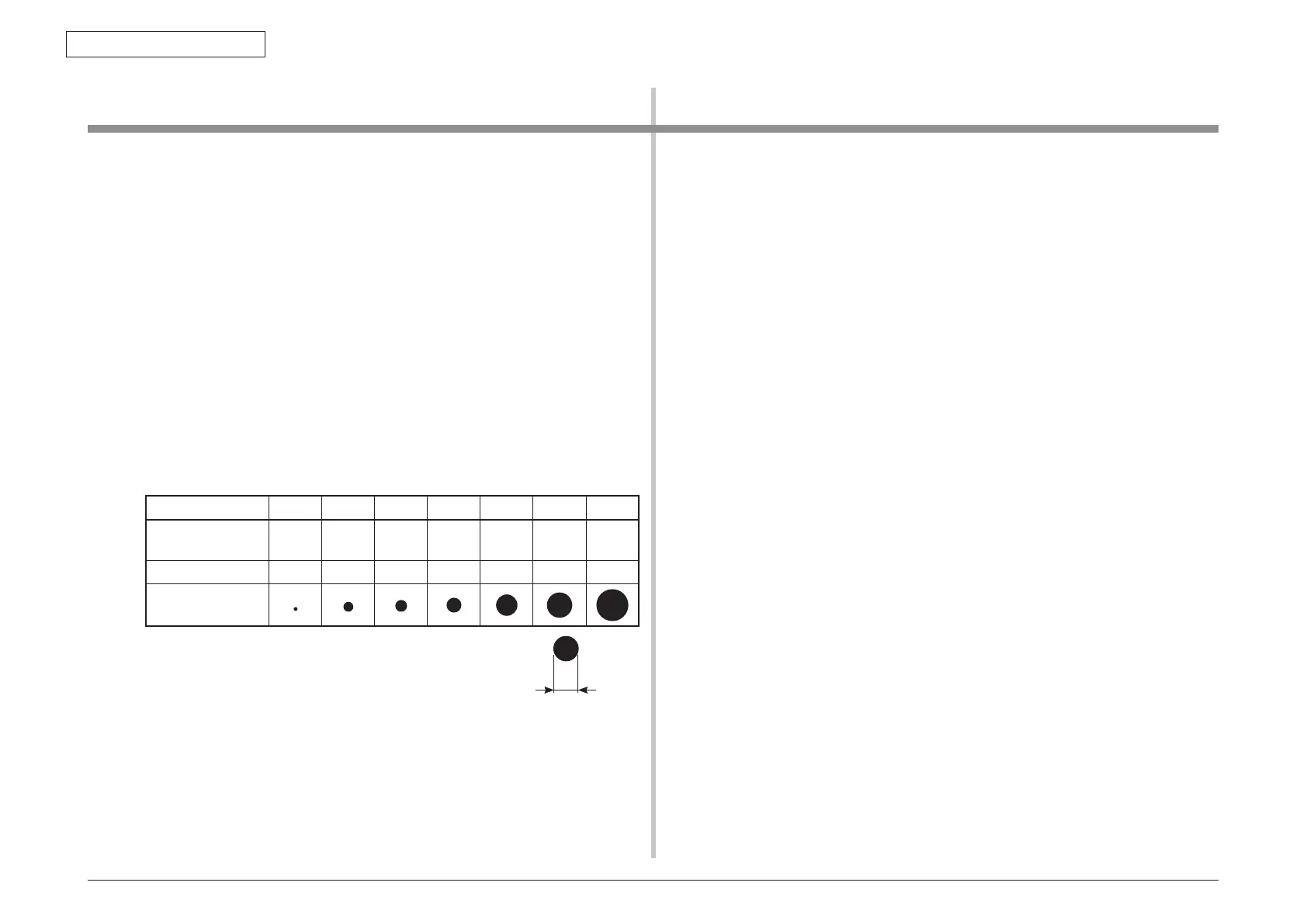

(2) Standard of amount of grease
Class S A B C D E F
Amount of grease
(cc)
0.0005 0.003 0.005 0.01 0.03 0.05 0.1
W(mm) 1.24 2.25 2.67 3.37 4.86 5.76 7.26
Sample
W
To Next Page
