6. CONNECTION DIAGRAMS
6.3 Resistance value

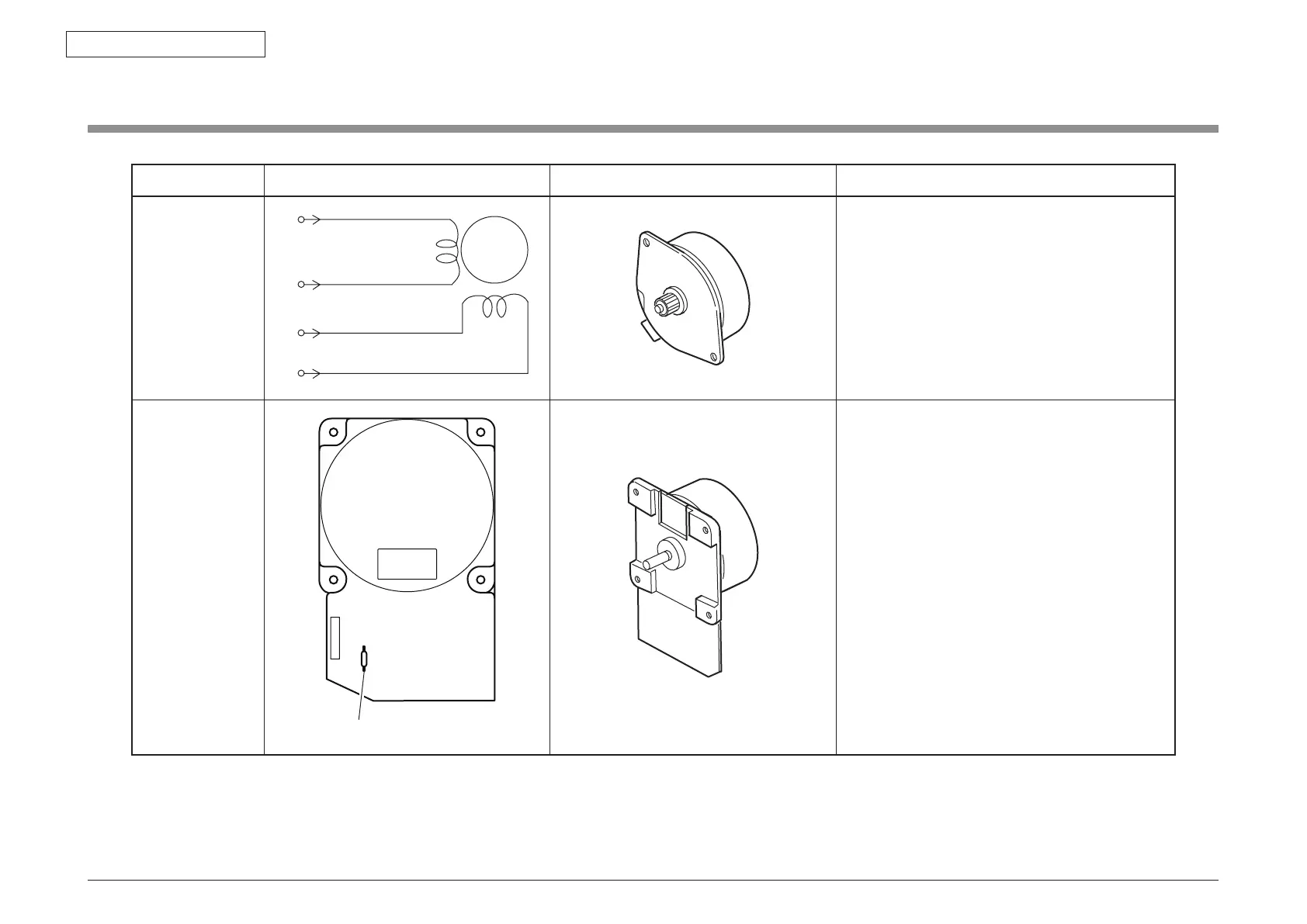

Unit Electrical circuit diagram, connection Part outside view Resistance value
Belt motor
M
1
2
3
4
Between pin-1 and pin-2 : 3.4
Ω
Between pin-3 and pin-4 : 3.4
Ω
ID motor
IP2
Across both ends of IP2 :1
Ω
or less
