4. REPLACEMENT OF PARTS
4.3.1 Printer section
①

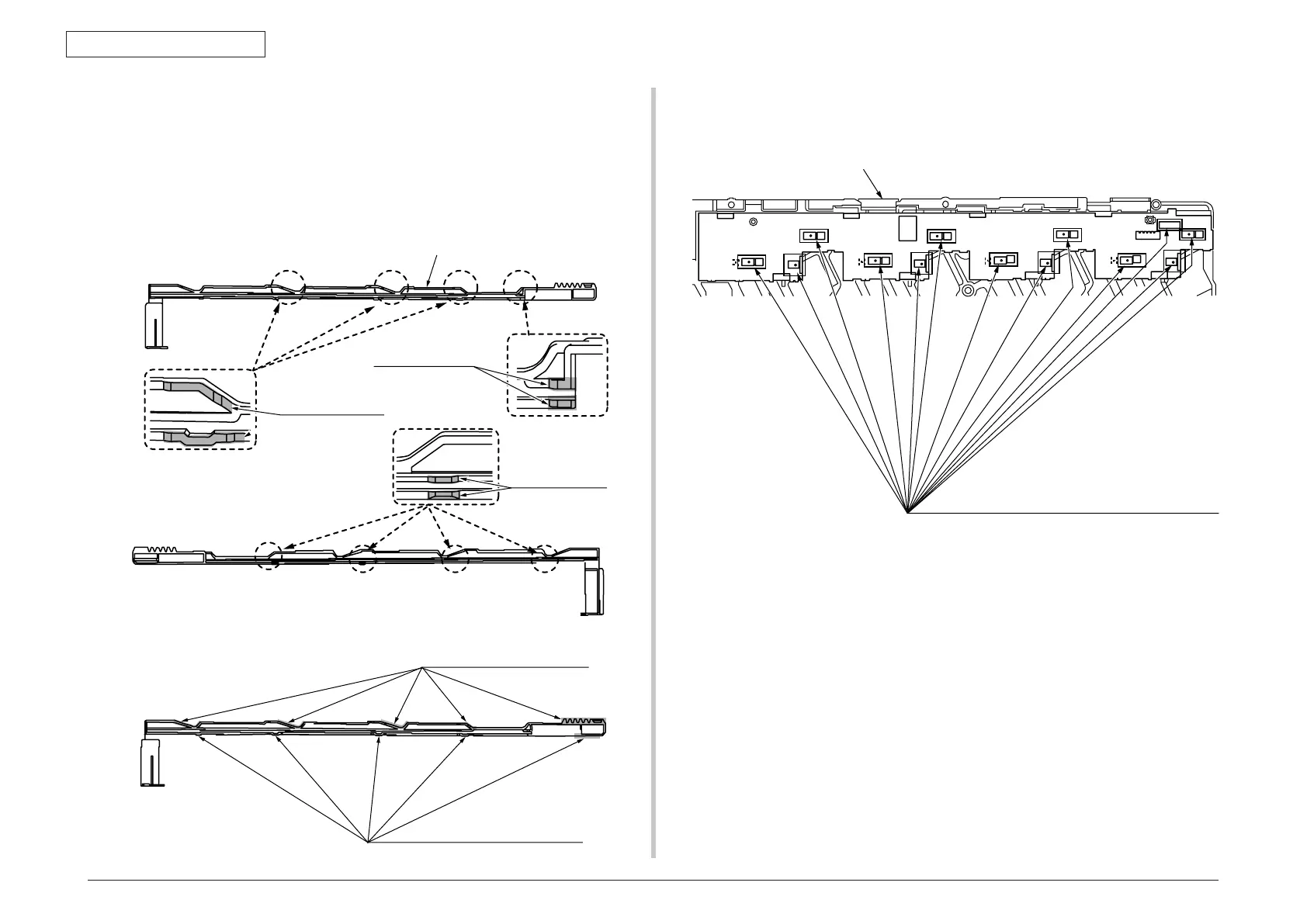

Plate Assy.-Side-L
EM-30LP Class A
Side surface
EM-30LP Class A Edge surface
EM-30LP Class A
Side surface
EM-30LP Class A
Side surface
EM-30LP Class A
Cog surface and Edge surface
Rack-L
Apply a small amount of MOLYKOTE (EM-30LP) 26 positions
②
Guide Assy.-Side-R
OR-Board Assy.-TSA
Class S
After polish the terminals to luster with BETCOM M-3, T
etra
(C-9300) is soaked into cotton swab a little (Class S), and it
coated on terminals. (13 positions)
