4. REPLACEMENT OF PARTS
⑭
-1 Printer Unit

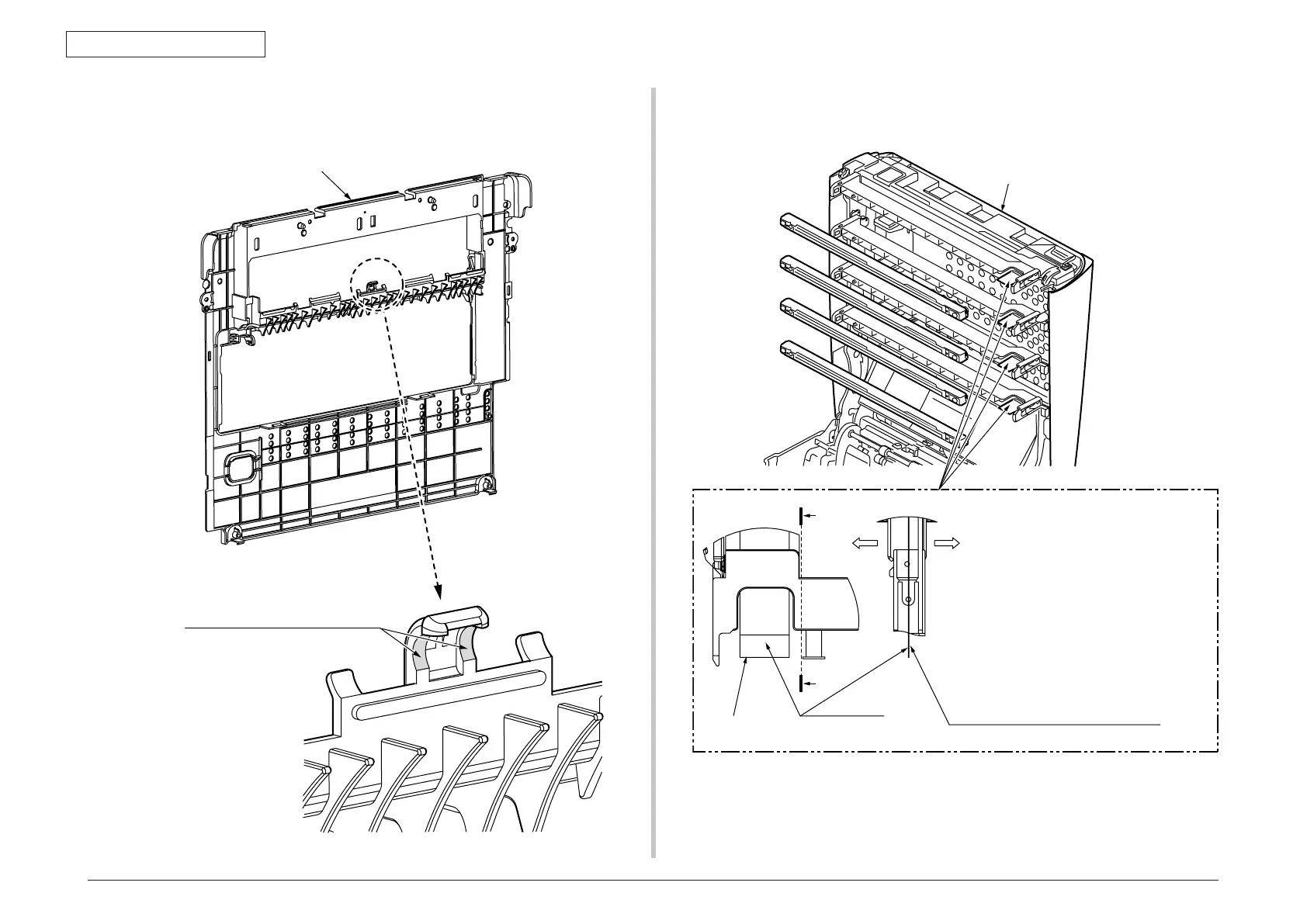

Cover-Assy.-Rear
Apply a Class A amount of HANARL
(SF-133) to the hatched areas
⑭
-2 Printer Unit
A
A
Cover-Assy.-To p
Class S
CONN-Head-Code
Do not adhere it to the other side of the
terminal (blue film side)
TETRA-C9300 is soaked into BEMCOT-
M3, and sreads on each terminal of K, Y,
M and C. (Class S)
✳ Do not adhere it to other parts, espcially
LED head.
✳ Confirm the foreign matter such as
thread craps doesn’t adhere in the
terminal.
Front side
of printer
Rear side
of printer
