45850101TH Rev.1
4-84
⑧

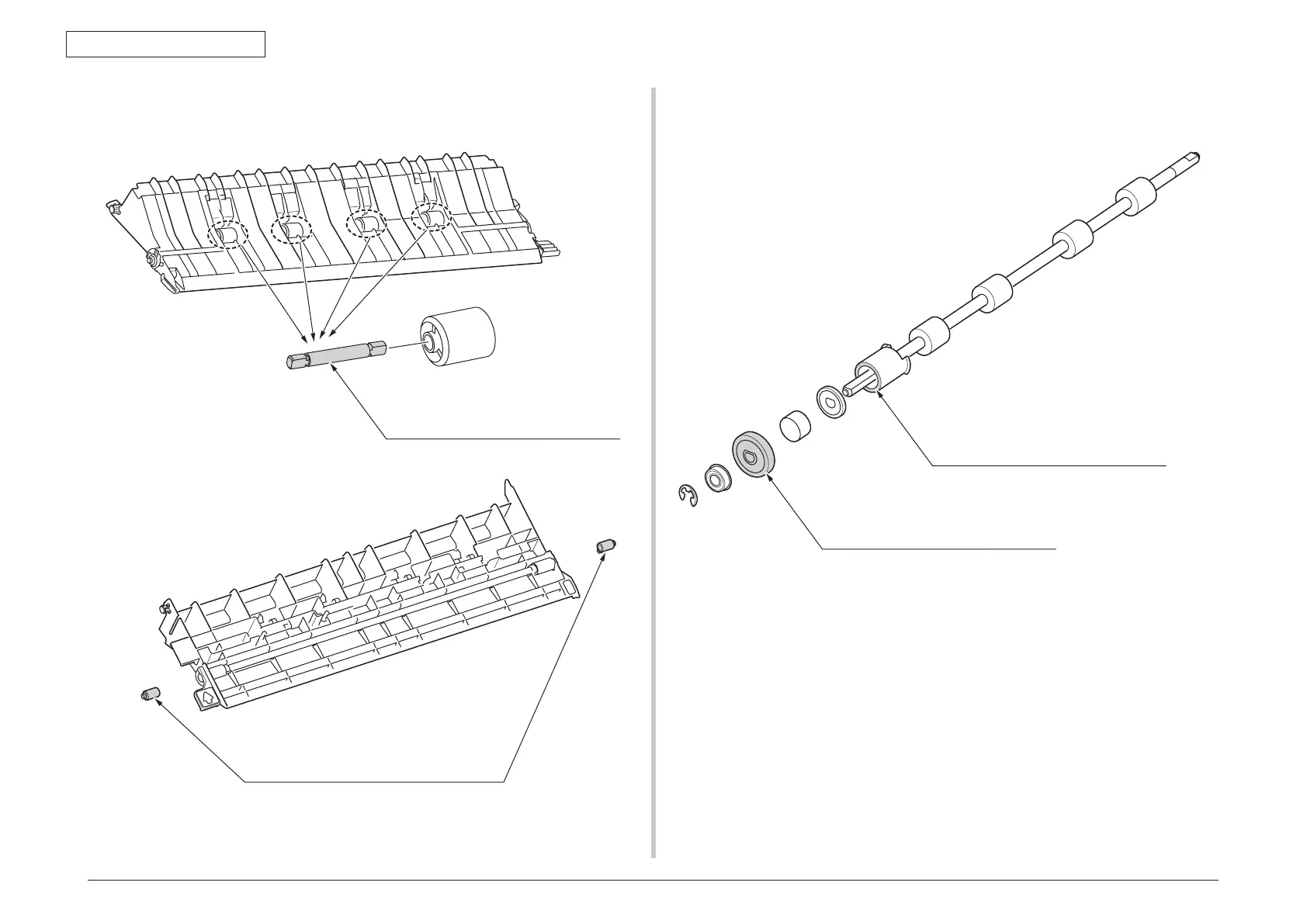

Guide Assy.-Exit(Lower)
Leave it for about 3minutes (drying time) after painting HARVES MDF-1207,
and then assemble the parts.
HARVES MDF-1207 All around
Apply HARVES MDF-1207 all around
of Shaft-Press (4 pcs)
HARVES MDF-1207 All around
Apply HARVES MDF-1207 all around
of Slider-Lock (2 pcs)
⑨
Roller-Assy-Eject(ADF)
Leave it for about 3minutes (drying time) after painting HARVES MDF-1207,
and then assemble Gear-Shaft-R3.
MOLYKOTE (D110) Class B
Apply a little amount of MOLYKOTE (D110)
to the hatched area.
HARVES MDF-1207 All around
Apply HARVES MDF-1207 all around
of 44535301 Gear-Shaft-R3
To Next Page
