4. REPLACEMENT OF PARTS
⑫

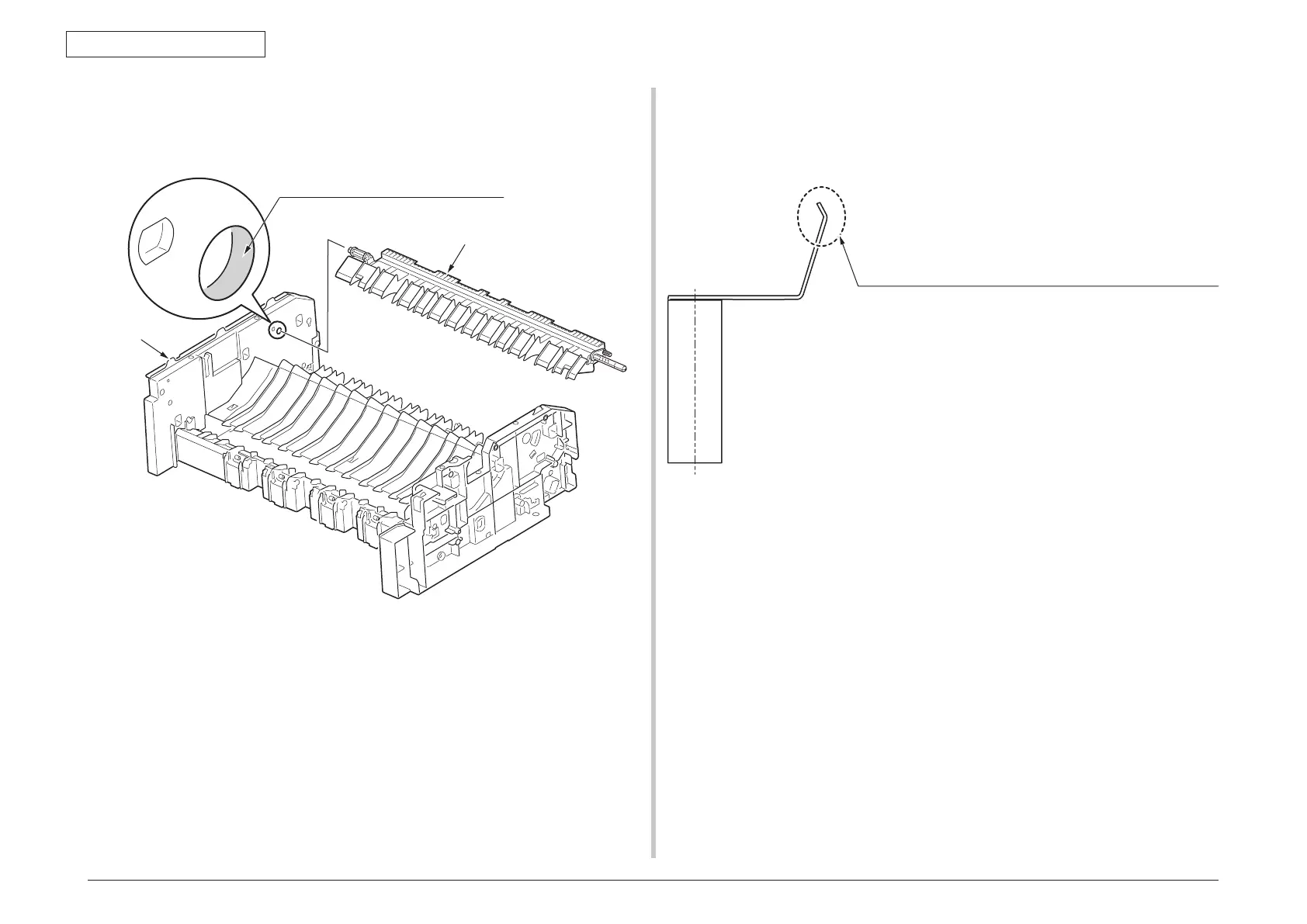

Scanner-Unit
1) Spring-PH(R)
※Do not adhere it to other parts.
※Confirm the foreign matter such as thread craps doesn't adhere in the terminal.
Tetra C-9300 Class S,
To apply around the bending portion (○part).
7) Frame-RADF
Apply a normal amount of MOLYKOTE
(EM-30LP) to the hatched area
(Shaft hole of Frame-RADF)
Guide-Separator(Hop)
Frame-RADF
Class B
