2.2 About this machine
2
2.2.3 Name of parts (MFP) (d-Color MF452 plus/MF552 plus)

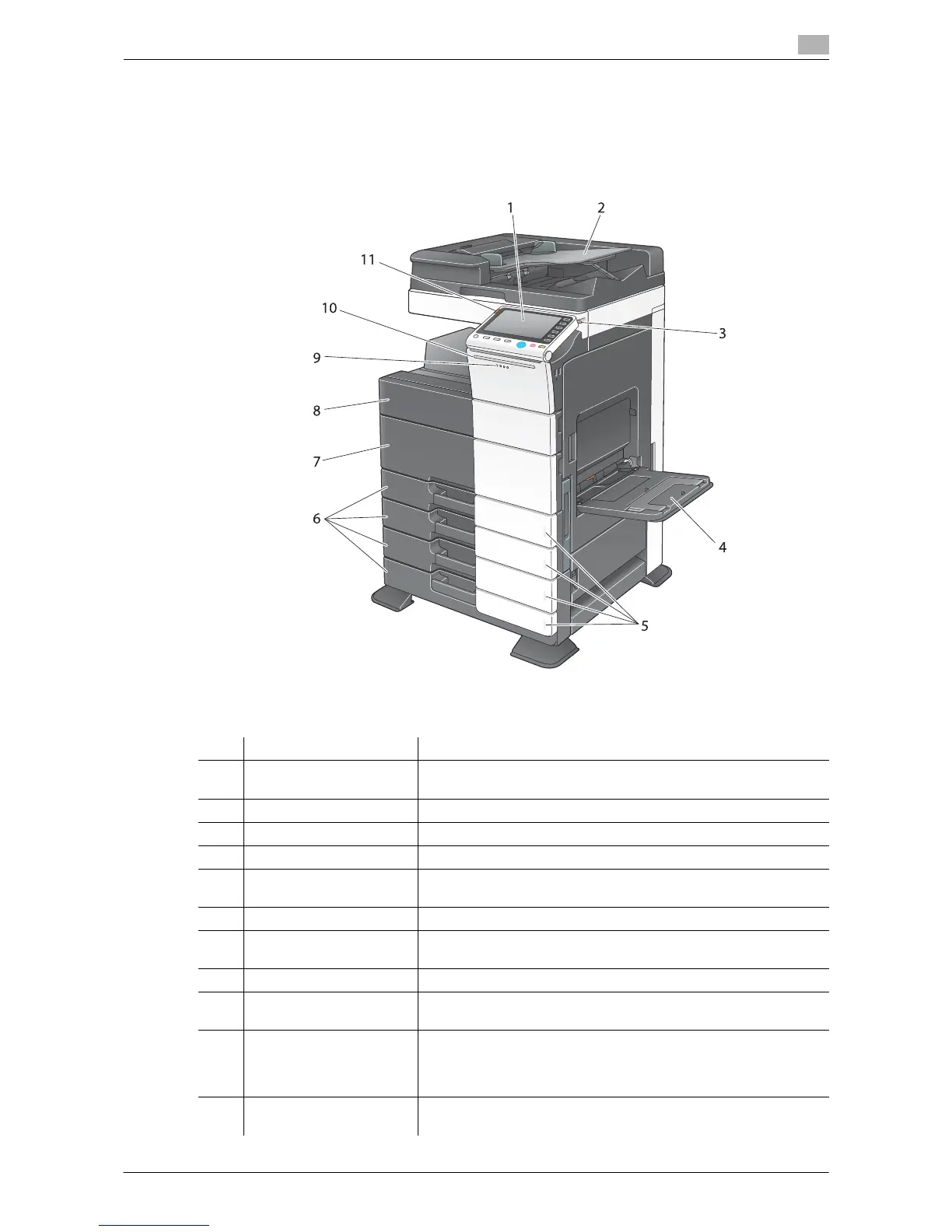

Front side
No. Name Description
1 Control Panel Use the Touch Panel or buttons on this panel to operate this ma-
chine.
2 Original Tray Load the original.
3 Stylus Pen Used to operate the Touch Panel.
4 Bypass Tray Used to load custom-size paper or special paper.
5 Paper-Empty Indicator Flashes orange when a tray runs low on paper and lights up orange
when the tray runs out of paper.
6 Paper Tray Used to load standard-size paper.
7 Lower Front Door Open this door to replace consumables or to maintenance this ma-
chine.
8 Upper Front Door Open this door to replace a Toner Cartridge.
9 Data Indicator Flashes blue while this machine is receiving a job. If a job is current-
ly spooled, this indicator lamp lights up blue.
10 Status Indicator This indicator lights up white in phases according to the warm-up
progress state when this machine has started or returned from the
Power Save mode. The indicator lights up in white in a streaming
fashion while a print job is normally carried out on this machine.
11 Warning Indicator Flashes orange if a warning occurs. Lights up orange if this machine
has stopped due to an error.
To Next Page
