2KR/2KS
1-5-41

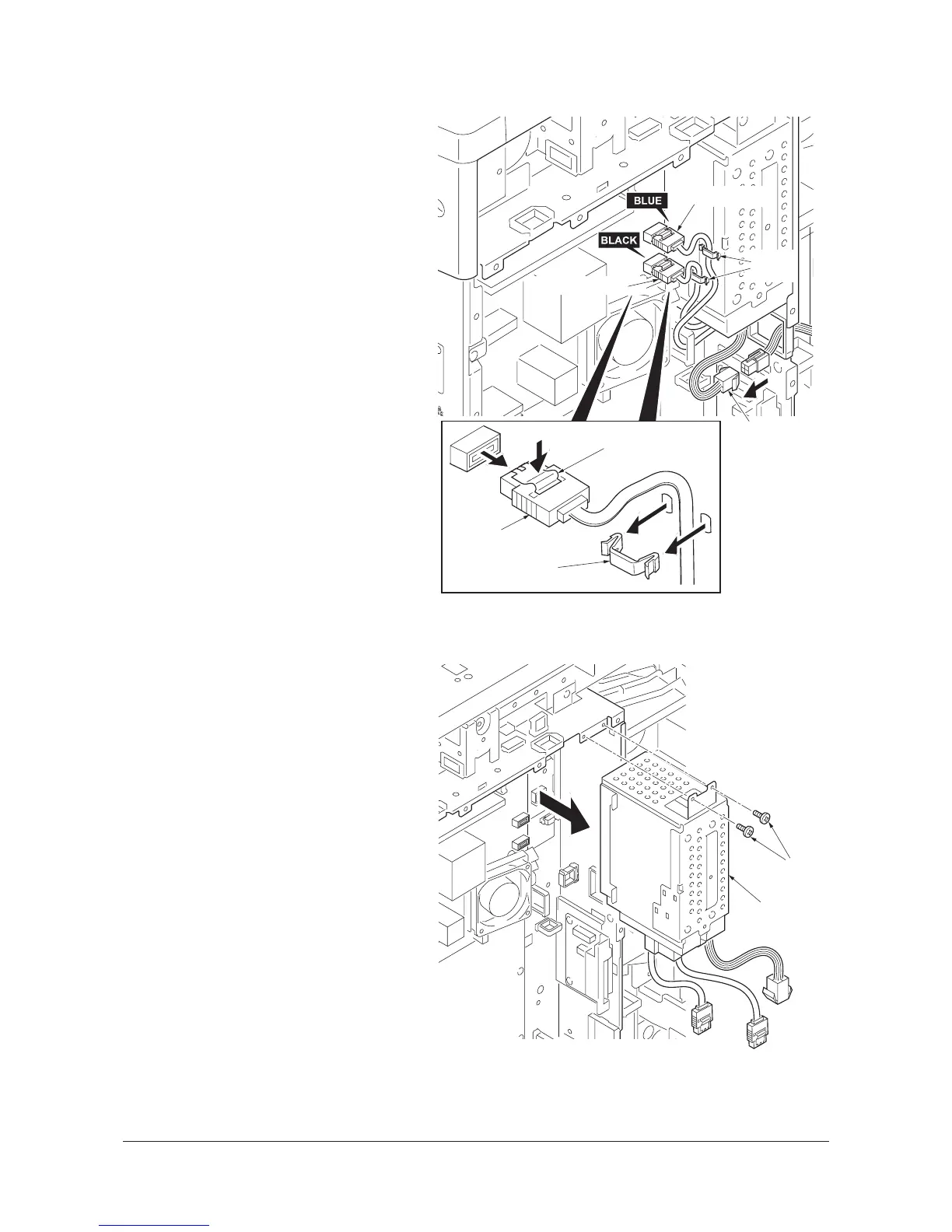

5. Remove two cable clamps.
6. Pressing the lock lever and remove the fol-
lowing connectors.
Connector (Blue)
Connector (Black)
7. Remove the power source connector.
Figure 1-5-80
8. Remove two screws and then remove the
hard disk mount assembly.
Figure 1-5-81
D
P
Connector
Lock lever
Cable clamp
Cable
clamps
Connector (Blue)
Connector (Black)
Power source
connector
Hard disk
mount assembly
Screws
Y111960-2 Service Manual
