The FlexoFORM scanner has magnetic wheels that must be carefully handled to
prevent the risk of injury and equipment damage from magnetic fields and
inadvertent attractive forces. Before unpacking and handling, observe the magnetic
wheel safety precautions, as outlined in the warning note on page 27.
The case is configured to hold the following parts (for details, see “Spare Parts and
Accessories” on page 65):
• FlexoFORM scanner unit with cable assembly
• Set of water wedges for a range of inspection surface radii (optional)
• Flexible PA probe (FA1)
• Line marking template tool
• Flexible magnetic straightedge
• Spare parts kit including screws and o-ring seals for probe and water connections
• Wedge foam gaskets (spares)
• Printed copy of FlexoFORM Scanner User’s Manual

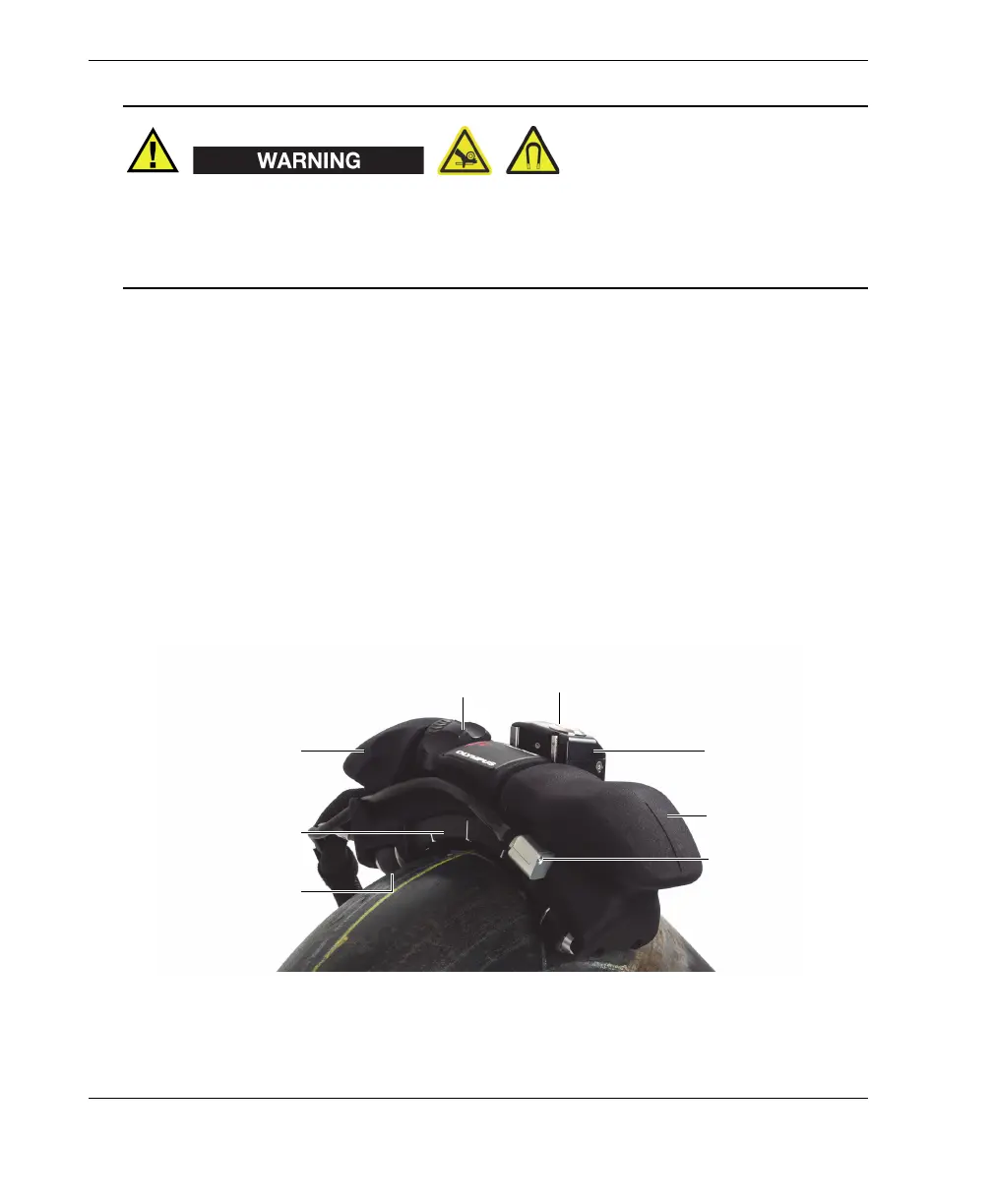

Figure 1-2 Scanner components
Probe
Indexing button
Magnetic wheels (4)
Thumb wheel
(open and close scanner)
Wedge
Grip
Grip
Encoder
