Olympus FlexoFORM - Changing the Water Tube

10-003591-01EN [Q7780031], Rev. 4, January 2020
Chapter 552

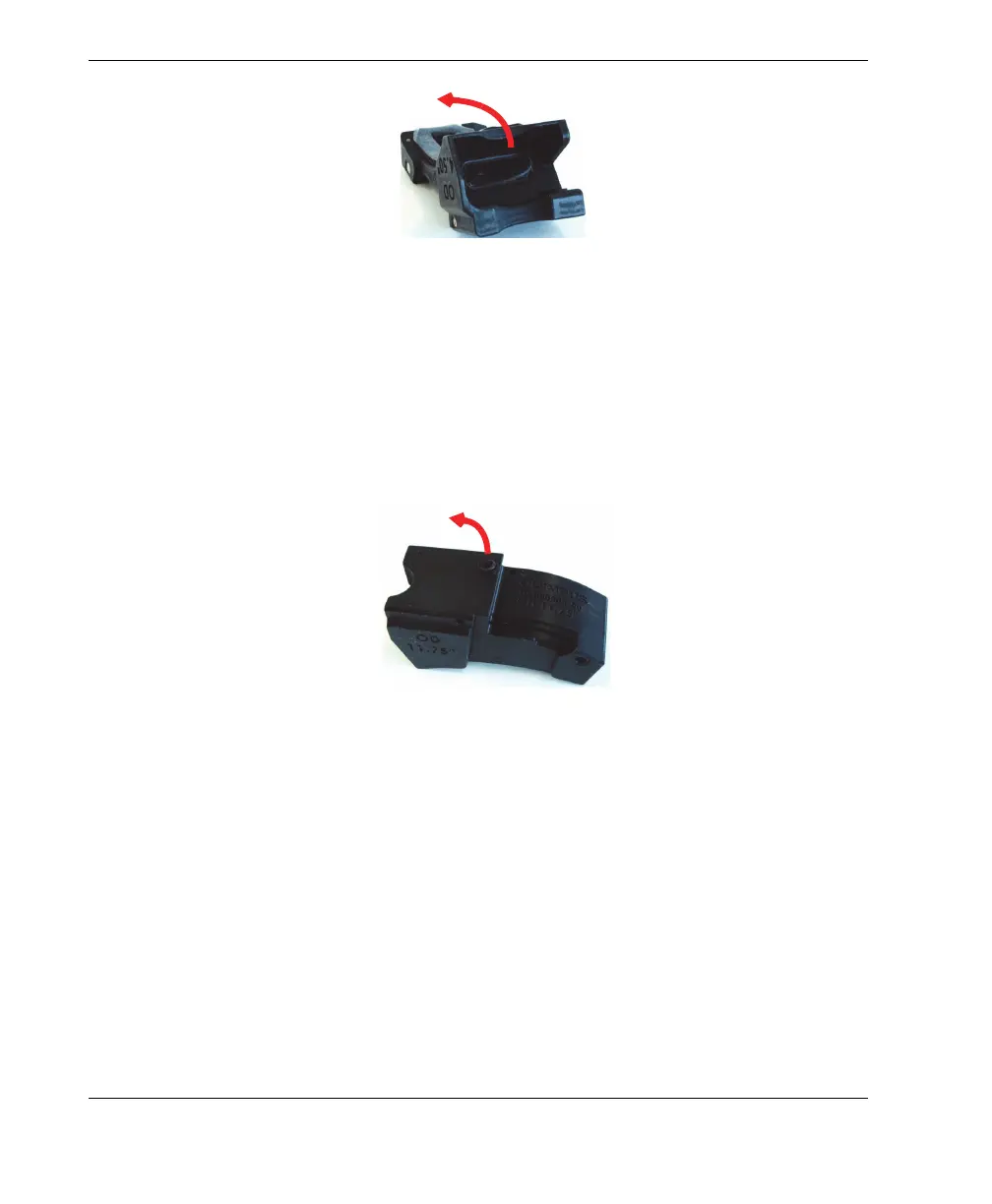

Figure 5-4 Changing the probe’s o-ring seal on the wedge
To change the o-ring seal on the water connection
1. Use an appropriate tool such as a small flathead screwdriver to carefully lift and
pull off the old o-ring seal without damaging the mounting surface (see
Figure 5-5 on page 52).
2. Install the new o-ring seal.
Figure 5-5 Changing the o-ring seal for the water connection
5.7 Changing the Water Tube
The water tube on the scanner can be changed if it is damaged.
To change the water tube
1. Remove the screw that fixes the water connector to the scanner (see Figure 5-6 on
page 53).
2. Pull the connector off the water tube.
3. Pull back the cable sleeve to access the tube, disconnect it from the union
connector, and pull it out of the scanner.
