Olympus FlexoFORM - Dimensions; Figure 6-1 LEMO Connector Pinout Diagram (5 Pin to 16 Pin)

10-003591-01EN [Q7780031], Rev. 4, January 2020
Specifications 61

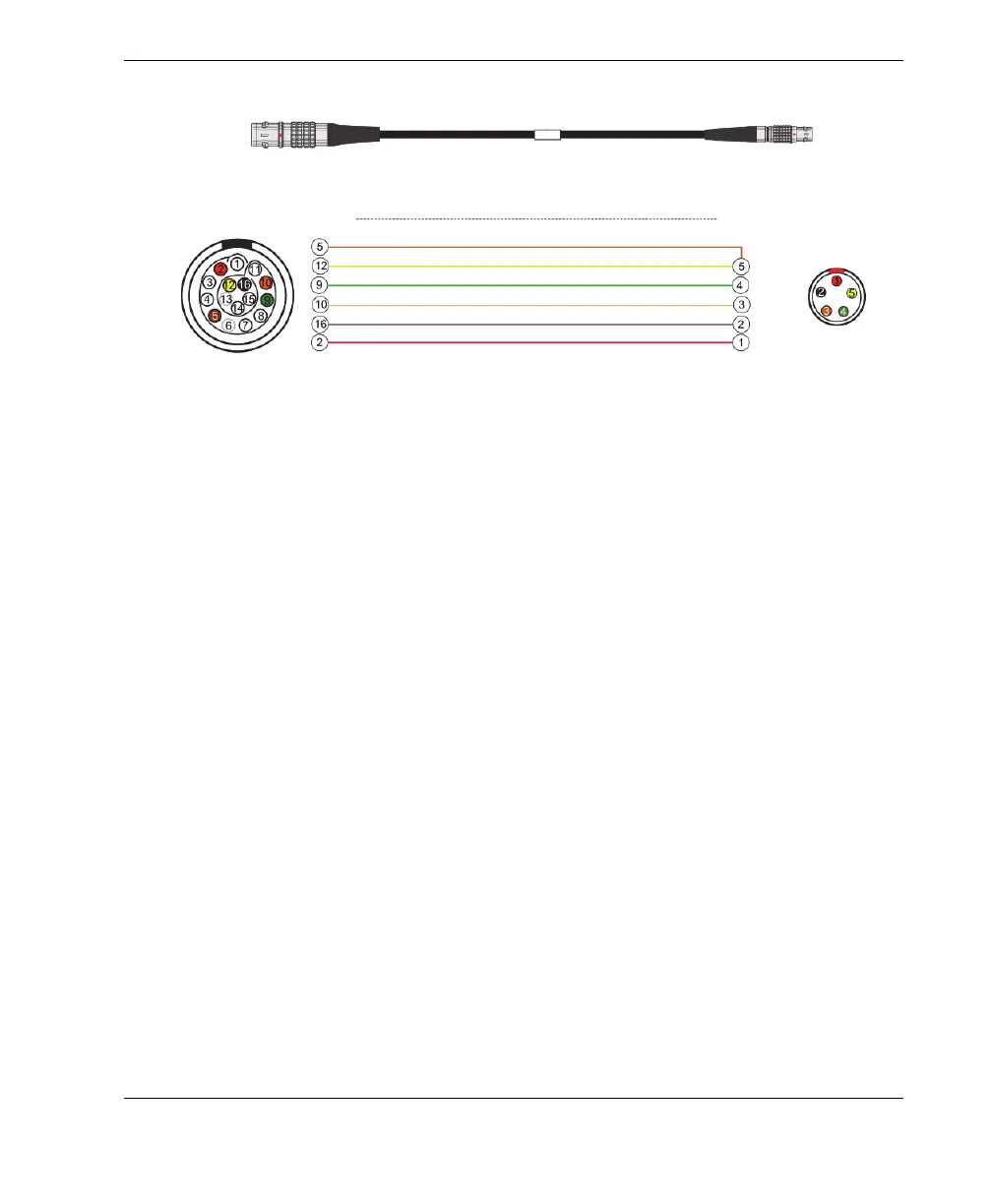

Figure 6-1 LEMO connector pinout diagram (5 pin to 16 pin)
6.5 Dimensions
The FlexoFORM scanner dimensions are shown in Figure 6-2 on page 62.
DIN3
PHA-1
PHB-1
GND
5V IN
Shield + drain
Housing
Housing
PHA-2
Brown
Green
Orange
Black
Red
Yellow
Solder-side view
FGG.1K.316.CLAC50Z
Solder-side view
FGG.0T.305.CLAC50Z
OmniScan
instrument
FlexoFORM scanner
