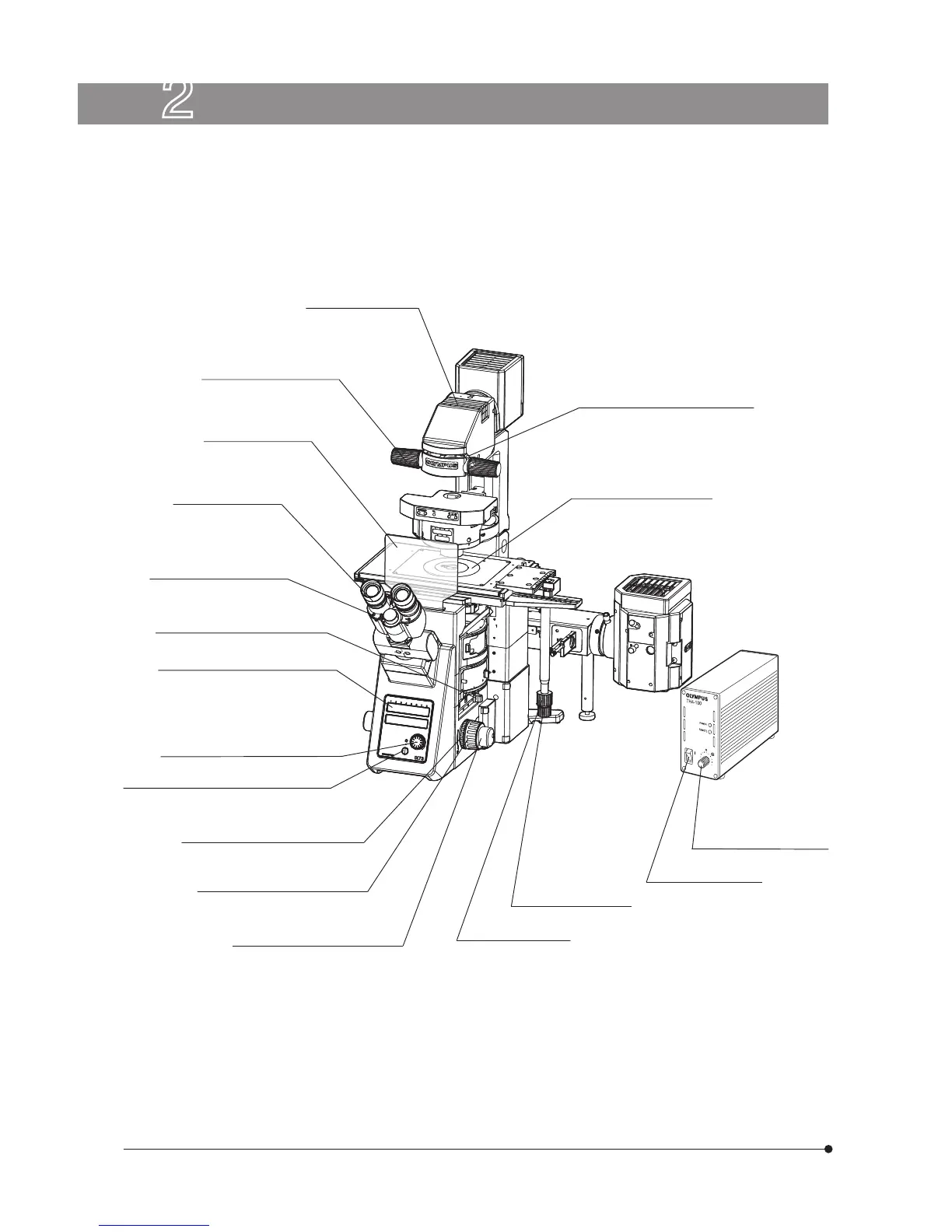

Stage center plate (p.18)
Detachable.
Main switch (p.14)
} If you have not yet assembled the microscope, read Chapter 9, “ASSEMBLY” (pages 50 to 64).
Filter pocket (p.26)
Condenser height
adjustment knob (p.27)
Diopter adjustment
ring (p.23)
Interpupillary distance
adjustment scale (p.23)
Coarse adjustment knob tension
adjustment ring (p.17)
Coarse adjustment knob (p.17)
Fine adjustment knob (p.17)
X-axis knob (p.21)
Y-axis knob (p.21)
Light intensity control
knob (p.14)
Field iris diaphragm lever (p.27)
2 NOMENCLATURE
Antiglare plate
Light intensity control knob (p.14)
Light path selector lever (p.15)
Transmitted light ON-OFF button (p.14)
Display magnet position
} Paste the magnet accord-
ing to the fluorescent mirror
unit mounted.
