Olympus IX73 - Connecting Cables and Wiring

62
Connecting to TH4 or U-LEDPS
Motorized modules
Coded function modules
} Refer to the separate instruction manual (IX3-CBM).
} Refer to the separate instruction manual (U-CB5S).
c
• Cables and cords are vulnerable when bent or twisted. Never
subject them to excessive force.
• Make sure that the main switch of the power supply is set to
“OFF” before connecting cables.
CAUTION
14

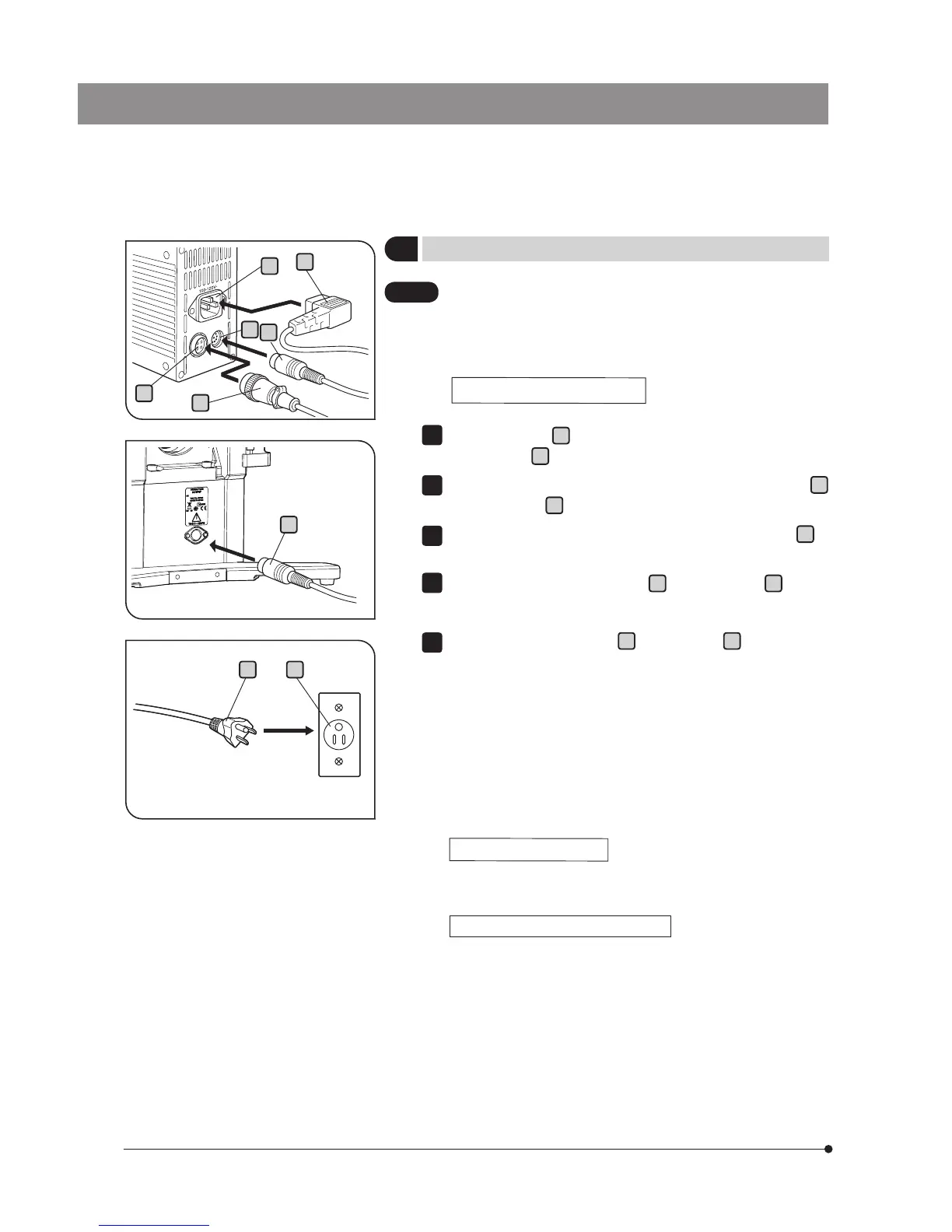

Connecting the Cables
b
a
d
c
e
f
Connect the plug
a
of the lamp housing or illumination column to
the connector
b
firmly.
Connect the hand switch plug or power supply connection cable
c
to the connector
d
.
Connect the other end of the power supply connection cable
c
to
the right side of the IX73 frame.
Connect the power cord connector
e
to the connector
f
firmly.
Connect the power cord plug
g
to a wall outlet
h
.
1
2
3
4
5
hg
* Shapes of the power cord plugs and
power outlets are different by country.
