Olympus IX73 - Attaching the Polarizer (IX-LWPO)

40
g
h
The polarizer can be mounted only on the IX2-LWUCD.
} This polarizer has been designed for being mounted on the IX2-
LWUCD in case of DIC observation or simplified polarizer light
observation.
Loosen the polarizer clamping screw
g
using the Allen screw-
driver.

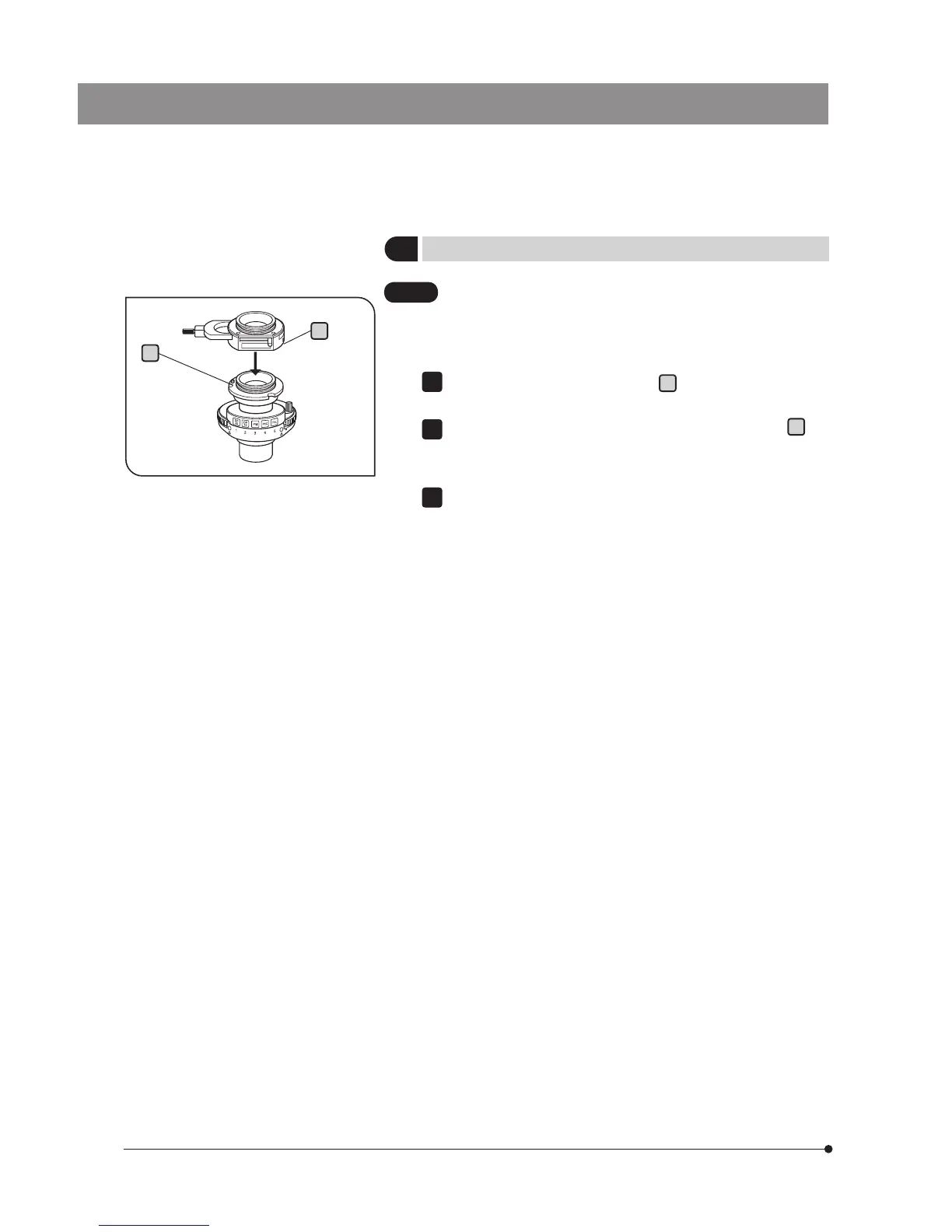

Align the pin hole on the condenser with the positioning pin
h
on
the condenser, and insert the polarizer unit into the upper part of the
condenser.
Tighten the polarizer clamping screw firmly.
CAUTION
1
2
3
4
Attaching the Polarizer (IX-LWPO)
