15
IX73

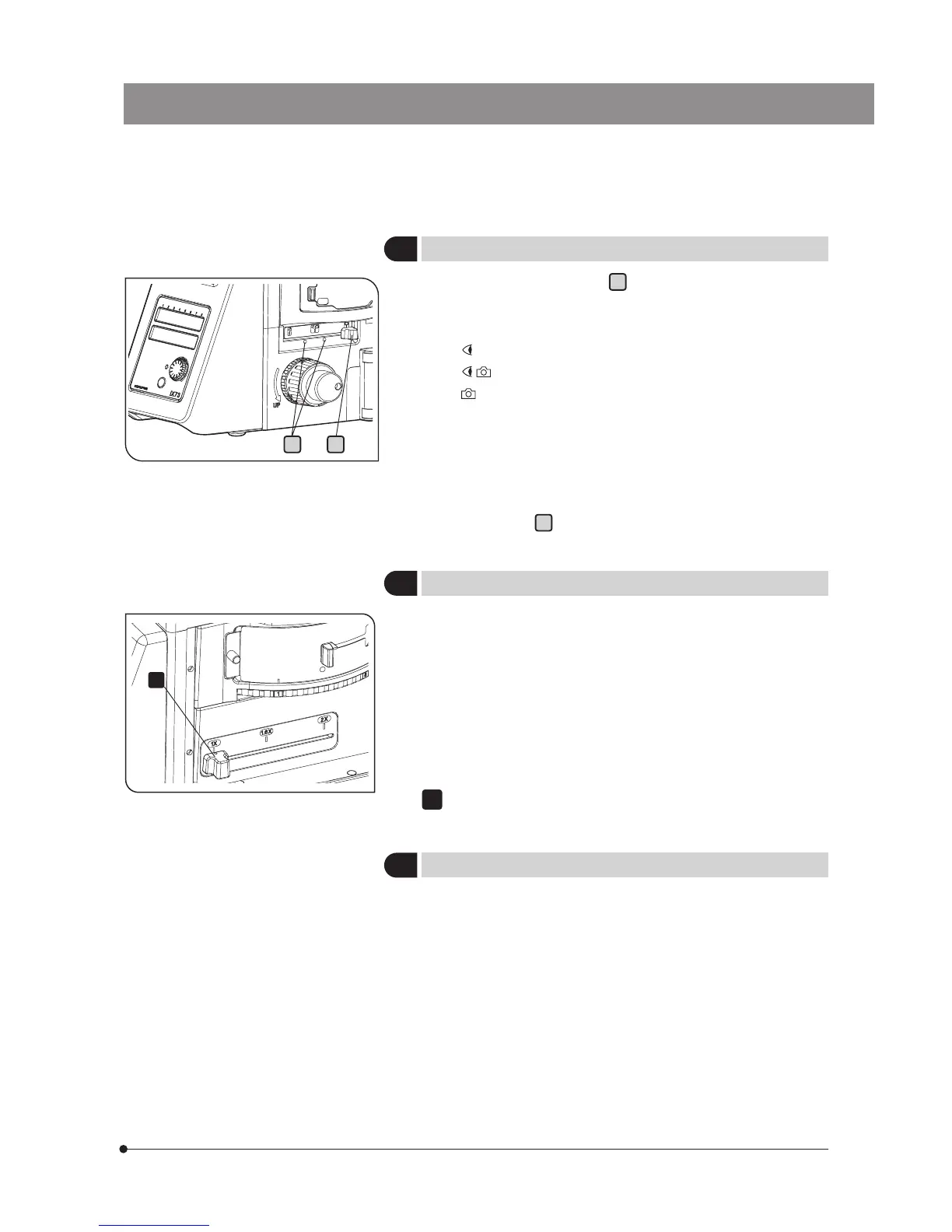

} The light path selector lever
a
allows for light path switching
between the observation and left side port paths.
Eyepiece / Camera (Left side port)
100% / 0%
50% / 50%
0% / 100%
} If acquiring the image by setting the light path as [Eyepiece 50%/
Left side port 50%], the light such as fluorescent lamp may enter
from the eyepiece to be reflected in the acquired image.
} Attaching the M4 screw provided with the microscope to either one
of screw holes
b
allows switching the light path in 2 levels.
Use the coded intermediate magnification changer IX3-CAS to
switch the observation magnification in the following 3 levels ac-
cording to the objective lens magnification.
· 1X
· 1.6X
· 2X
For the assembly procedure, refer to page 54 .
Change the magnification by operating the changing slider.
1
2
Light Path Selection
3
Coded intermediate magnification changer IX3-CAS
} This is the module for clamping the microscope onto an antivibra-
tion platform. The applicable anti-vibration platforms are the follow-
ing four models.
· 25 mm pitch and 50 mm pitch anti-vibration platforms.
· 1-inch pitch and 2-inch pitch anti-vibration platforms.
For the assembly procedure, refer to page 61
4
Frame Fix Plate IX3-FP
b a
1
To Next Page
