22
Stage movable range
With movement range limit screw : 50 mm in vertical direction, 50
mm in horizontal direction
Without movement range limit screw: 75 mm in vertical direction,
114 mm in horizontal direction
When using the center plate provided with IX3-SVR, attach the
movement range limit screw.
If the movement range limit screw is not attached, the objective
may hit the stage.
With the Mechanical Stage IX-MVR
To move the specimen to a desired position, rotate the X-axis knob
and Y-axis knob in the same manner as IX3-SVR.
} The stage travel area is 130 mm (X-axis) x 85 mm (Y-axis).
CAUTION

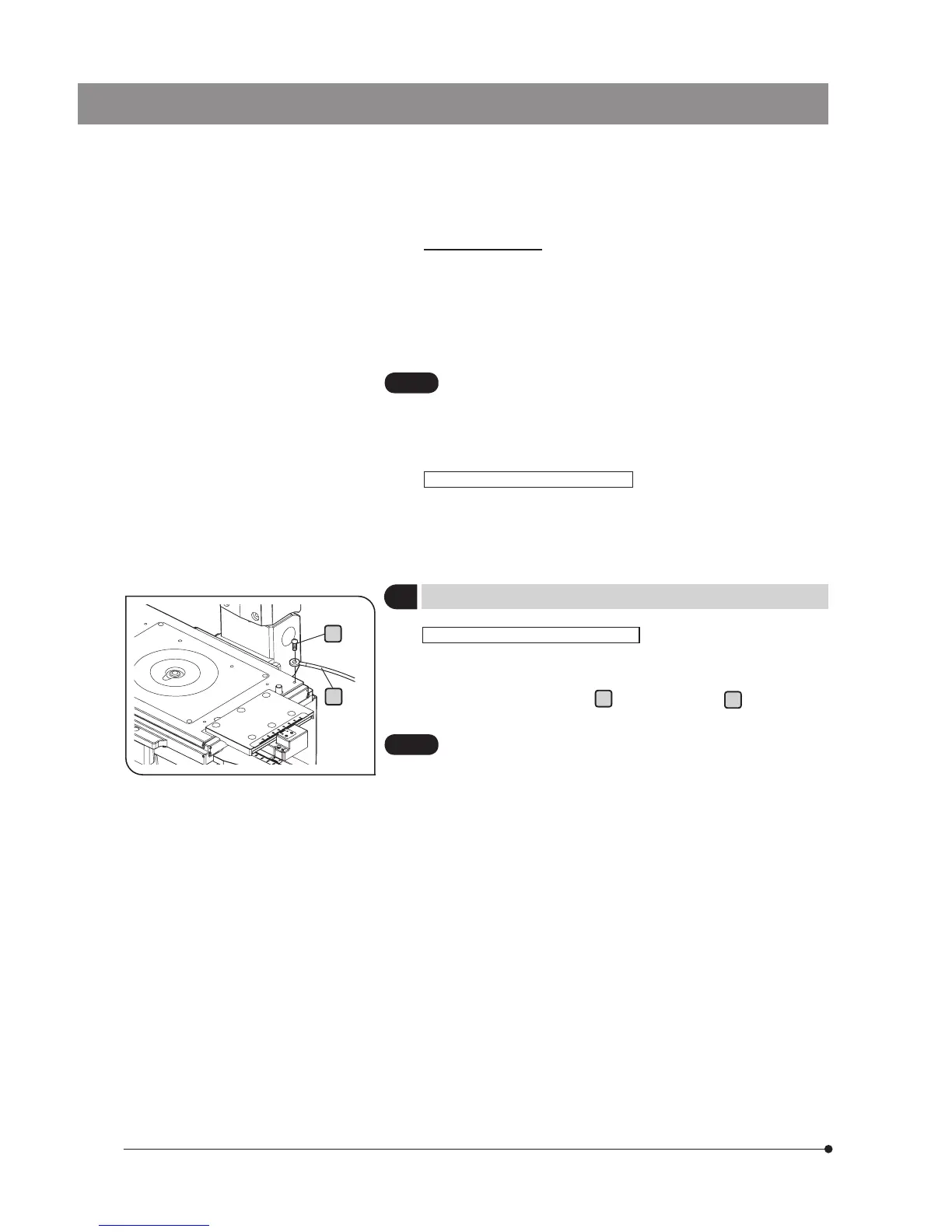

With the Stage BX3-SSU or IX3-SVR
} A grounding wire can be attached to the stage for electrophysiologi-
cal experiments, etc.
Prepare a grounding wire
a
and one M4 screw
b
and attach the
grounding wire to a screw hole on the stage surface.
The screw hole may sometimes be stuck by paint, etc. In such
a case, screw in the M4 screw a few times to expose the metal-
lic thread inside the screw hole and improve the contact before
attaching the grounding wire firmly.
CAUTION
a
b
3
Connecting the Grounding Wire
