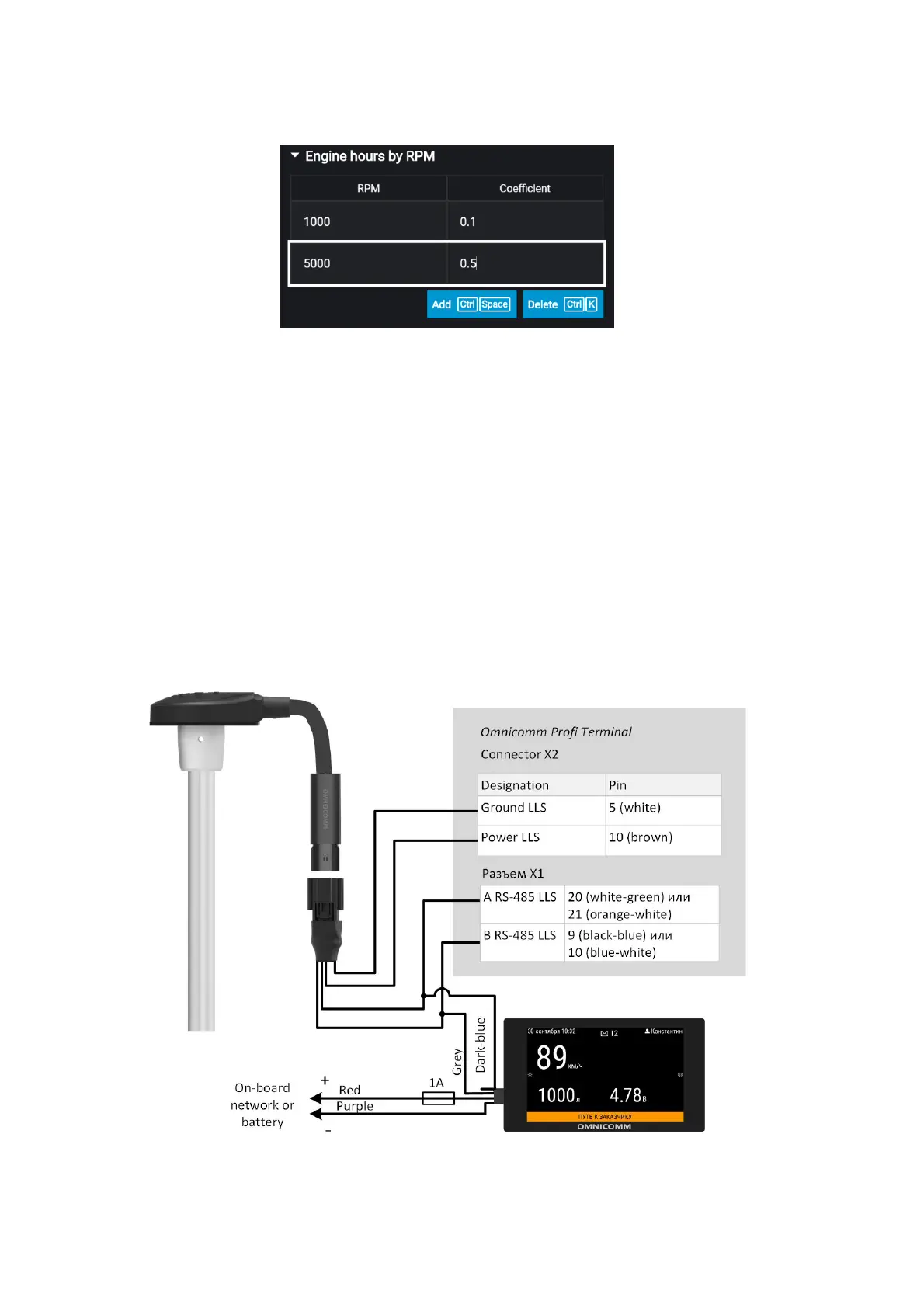

Enter the RPM value in the “Revolutions per minute” field, in “Coefficient” field enter
the value of conversion factor to calculate engine hours.
The conversion factors are determined based on the vehicle operating conditions.
Maximum number of rows – 5.
The engine hours are displayed in hours with a decimal part (1.50 equals to 1 hour
and 30 minutes) in the format HH.XX within the range of up to 100 engine hours and
HHH.X for 100.0 - 999.9 engine hours. If the number of engine hours is higher than
1000, the last three significant digits and one symbol after the decimal point are
displayed.
All engine hours are recorded in the terminal and sent to the CS as accrued total.
Connect Omnicomm Profi terminal to Omnicomm ICON display according to the
diagram:
