EQ: ON when all zeros are transferred to D.

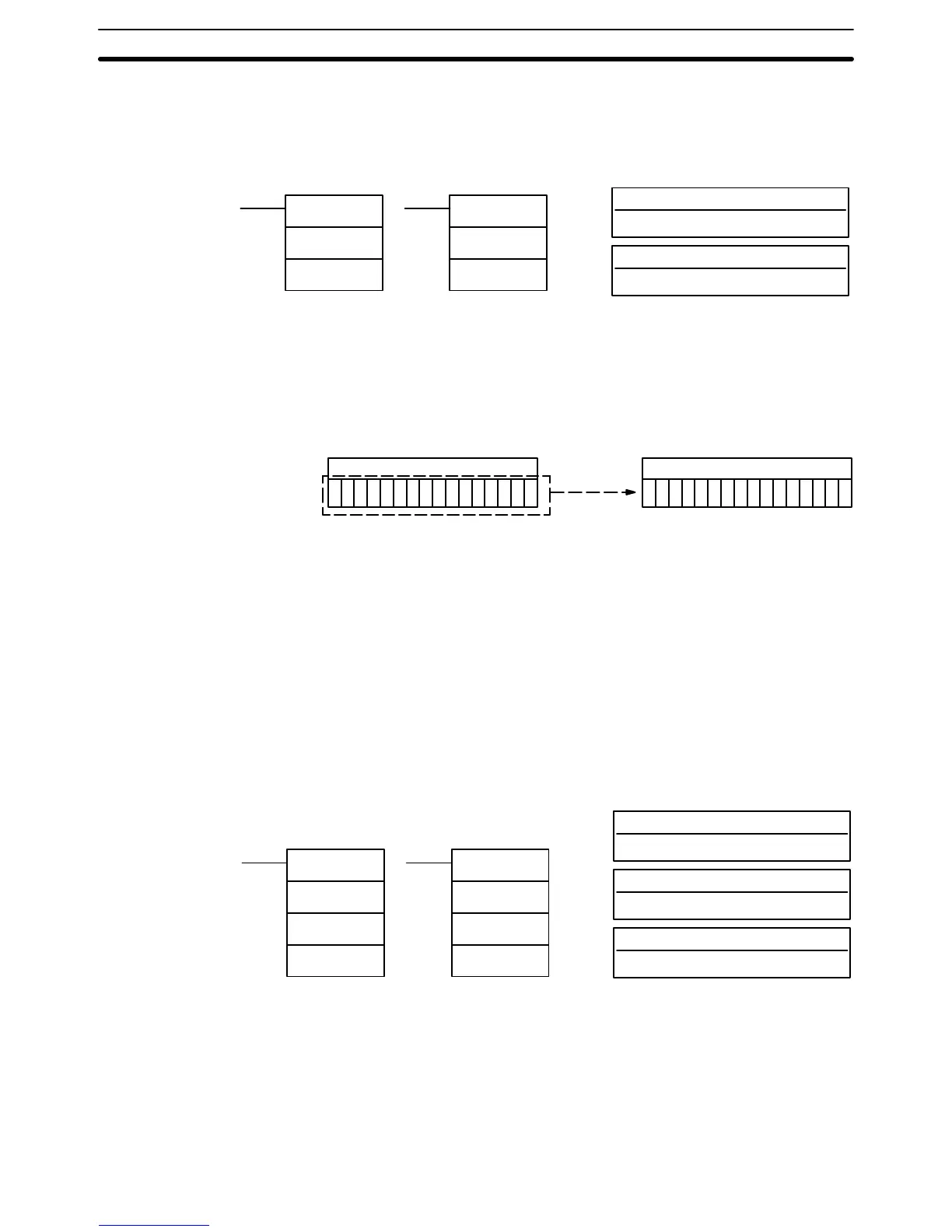

5-14-2 MOVE NOT – MVN(22)
S: Source word
IR, SR, AR, DM, HR, TC, LR, #
D: Destination word
IR, AR, DM, HR, LR
Ladder Symbols Operand Data Areas
MVN(22)
S
D
@MVN(22)
S
D
When the execution condition is OFF, MVN(22) is not executed. When the
execution condition is ON, MVN(22) transfers the inverted content of S
(specified word or four-digit hexadecimal constant) to D, i.e., for each ON bit
in S, the corresponding bit in D is turned OFF, and for each OFF bit in S, the
corresponding bit in D is turned ON.
Source word Destination word
Bit status
inverted.
TC numbers cannot be designated as D to change the PV of the timer or
counter. However, these can be easily changed using BSET(71).
Flags ER: Indirectly addressed DM word is non-existent. (Content of *DM word
is not BCD, or the DM area boundary has been exceeded.)
EQ: ON when all zeros are transferred to D.
5-14-3 COLUMN-TO-WORD – CTW(63)
S: First word of 16 word source set
IR, SR, AR, DM, HR, LR
C: Column bit designator (BCD)
IR, AR, DM, HR, TC, LR, #
Ladder Symbols
Operand Data Areas
D: Destination word
IR, AR, DM, HR, LR
CTW(63)
S
C
D
@CTW(63)
S
C
D
Can be performed with the CPU11-E only. C must be between #0000 and
#0015.
When the execution condition is OFF, CTW(63) is not executed. When the
execution condition is ON, CTW(63) copies bit column C from the 16-word
set (S to S+15) to the 16 bits of word D (00 to 15).
Description
Precautions
Limitations
Description
Data Movement Section 5-14
