last digit is preserved in R+1 so that the entire result can be later handled as
eight-digit data.
TR 0
MOV(21)
#0001
DM 0101
00002
CLC(41)
ADD(30)
LR 25
#6103
DM 0100
MOV(21)
#0000
DM 0101
25504
25504
Address Instruction Operands
00000 LR 00002
00001 OUT TR 0
00002 CLC(41)
00003 AND(30)
LR 25
# 6103
DM 0100
00004 AND 25504
00005 MOV(21)
# 0001
DM 0101
00006 LD TR 0
00007 AND NOT 25504
00008 MOV(21)
# 0000
DM 0101
Although two ADD(30) can be used together to perform eight-digit BCD addi-
tion, ADDL(54) is designed specifically for this purpose.

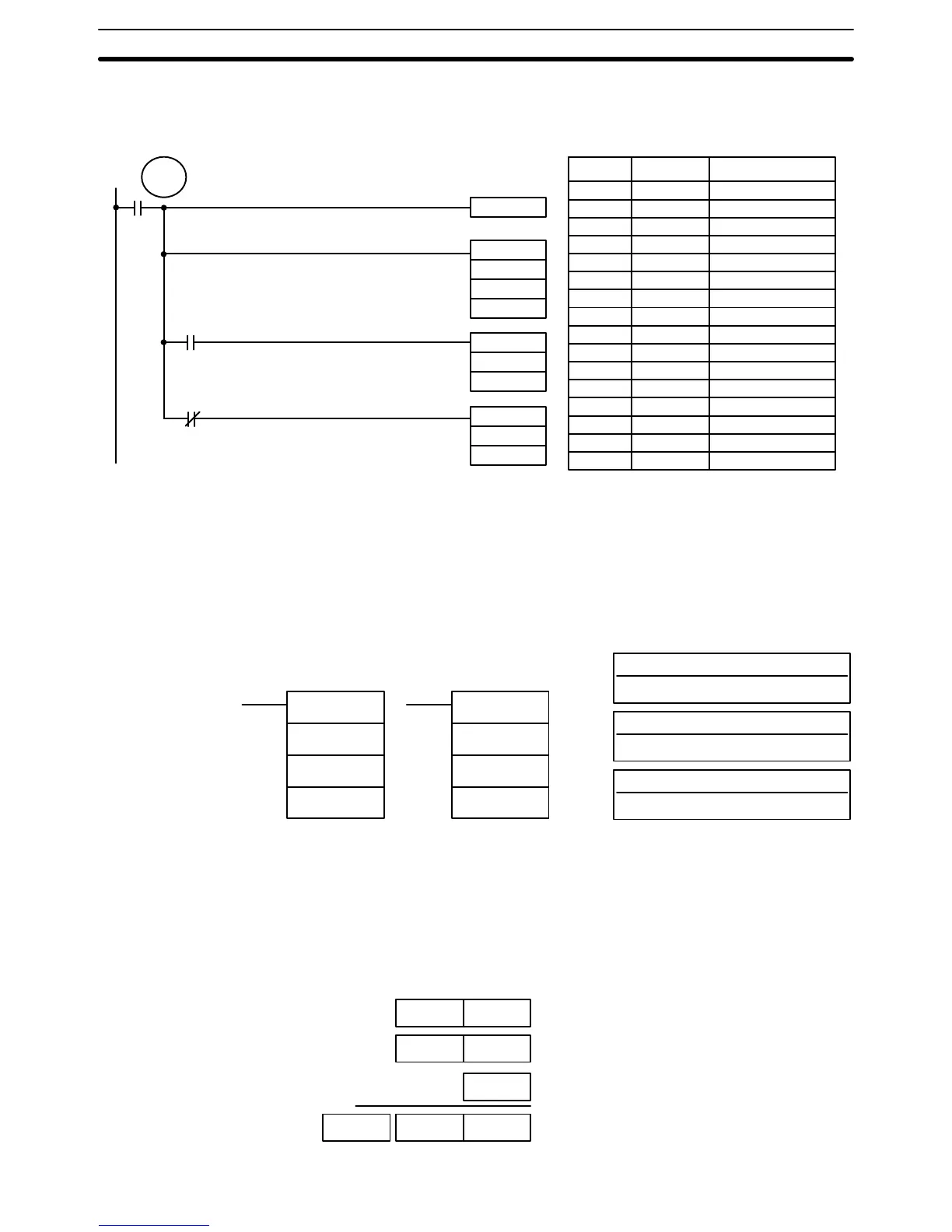

5-17-6 DOUBLE BCD ADD – ADDL(54)
Au: First augend word (BCD)
IR, SR, AR, DM, HR, TC, LR
Ad: First addend word (BCD)
IR, SR, AR, DM, HR, TC, LR
Ladder Symbols
Operand Data Areas
R: First result word
IR, AR, DM, HR, LR
ADDL(54)
Au
Ad
R
@ADDL(54)
Au
Ad
R
When the execution condition is OFF, ADDL(54) is not executed. When the
execution condition is ON, ADDL(54) adds the contents of CY to the 8-digit
value in Au and Au+1 to the 8-digit value in Ad and Ad+1, and places the re-
sult in R and R+1. CY will be set if the result is greater than 99999999.
Au + 1 Au
Ad + 1 Ad
R + 1 R
+
CY
CY
Description
BCD Calculations Section 5-17
