When the execution condition is OFF, BINL(58) is not executed. When the
execution condition is ON, BINL(58) converts an eight-digit number in S and
S+1 into 32-bit binary data, and outputs the converted data to R and R+1.
S + 1 S
R + 1 R
BCD
Binary
Flags ER: The contents of S and/or S+1 words are not BCD.
Indirectly addressed DM word is non-existent. (Content of *DM word
is not BCD, or the DM area boundary has been exceeded.)
EQ: ON when the result is zero.
5-16-3 BINARY-TO-BCD – BCD(24)
S: Source word (binary)
IR, SR, AR, DM, HR, LR
R: Result word
IR, AR, DM, HR, LR

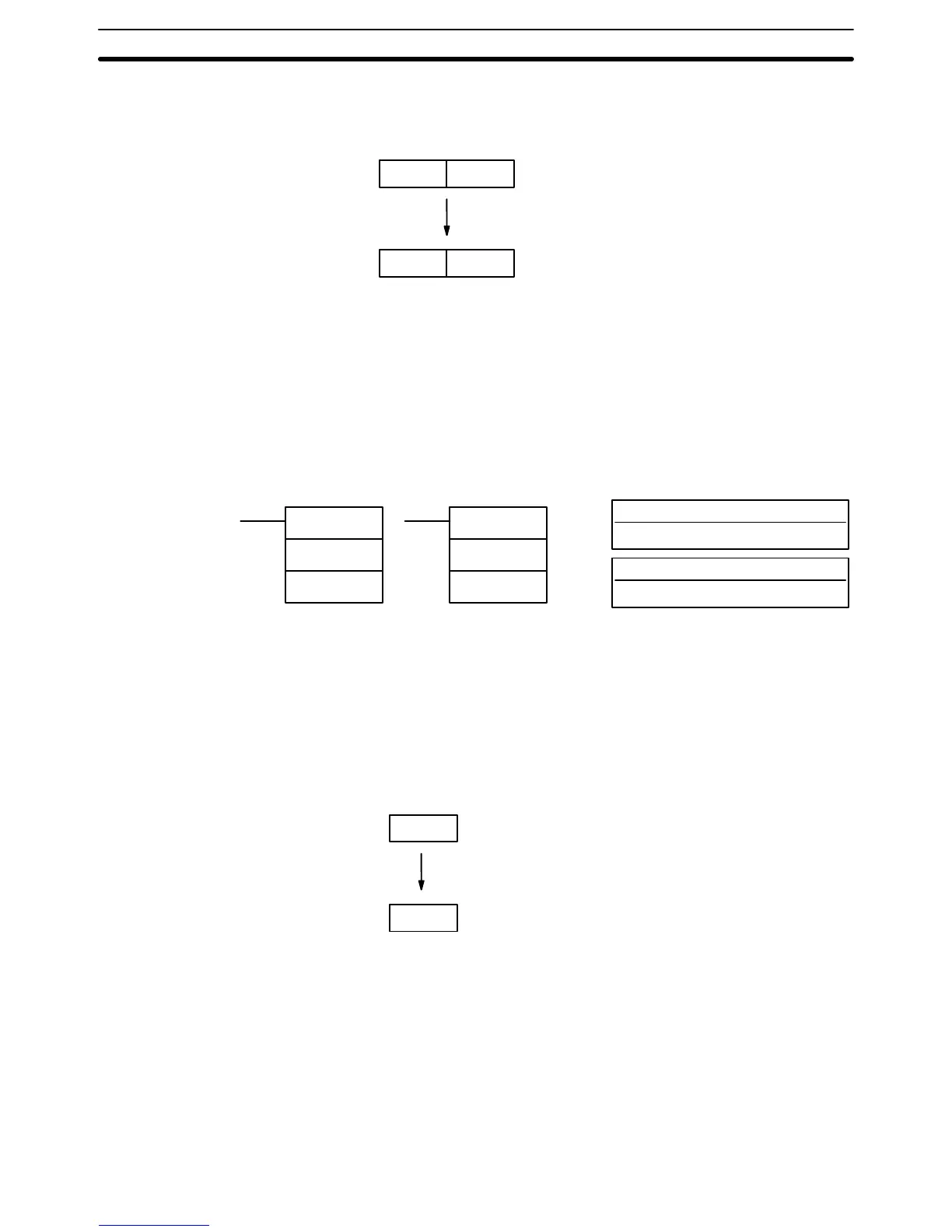

Ladder Symbols Operand Data Areas
BCD(24)
S
R
@BCD(24)
S
R
If the content of S exceeds 270F, the converted result would exceed 9999
and BCD(24) will not be executed. When the instruction is not executed, the
content of R remains unchanged.
BCD(24) converts the binary (hexadecimal) content of S into the numerically
equivalent BCD bits, and outputs the BCD bits to R. Only the content of R is
changed; the content of S is left unchanged.
S
R
BCD
Binary
BCD(24) can be used to convert binary to BCD so that displays on the Pro-
gramming Console or any other programming device will appear in decimal
rather than hexadecimal. It can also be used to convert to BCD to perform
BCD arithmetic operations rather than binary arithmetic operations, e.g.,
when BCD and binary values must be added.
Flags ER: S is greater than 270F.
Indirectly addressed DM word is non-existent. (Content of *DM word
is not BCD, or the DM area boundary has been exceeded.)
EQ: ON when the result is zero.
Description
Limitations
Description
