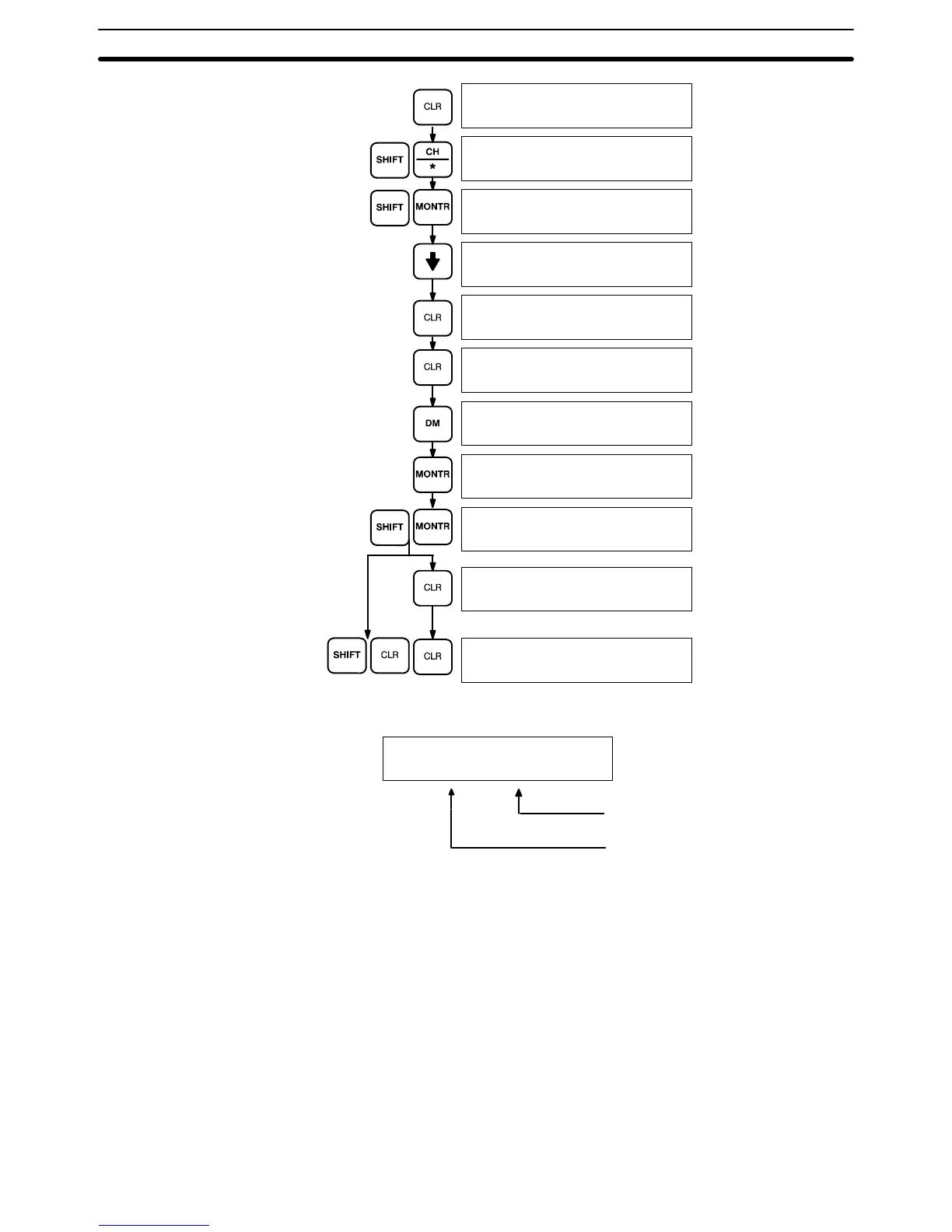

249
00000
00000
CHANNEL 000
c000 MONTR
0000000000001111
c001 MONTR
0000010101010100
00000
CHANNEL 001
00000
00000
CHANNEL DM 0000
D0000
FFFF
D0000 MONTR
1111111111111111
D0000
FFFF
00000
CHANNEL DM 0000
0000S0100R0110SR
Indicates Force Reset
in effect
Indicates Force Set
in effect
7-1-9 Binary Data Modification
This operation assigns a new 16-digit binary value to an IR, HR, AR, LR, or
DM word.
The cursor, which can be shifted to the left with the up key and to the right
with the down key, indicates the position of the bit that can be changed. After
positioning to the desired bit, a 0 or a 1 can then be entered as the new bit
value. The bit can also be Force Set or Force Reset by pressing SHIFT and
either PLAY/SET or REC/RESET. An S or R will then appear at that bit posi-
tion. Pressing the NOT key will clear the force status, S will change to 1, and
R to o. After a bit value has been changed, the blinking square will appear at
the next position to the right of the changed bit.
Example
Monitoring Operation and Modifying Data Section 7-1
