247
00000
00000
CHANNEL DM 0000
D0000
89AB
D0002D0001D0000
0123 4567 89AB
D0003D0002D0001
ABCD 0123 4567
D0004D0003D0002
EF00 ABCD 0123
D0005D0004D0003
1111 EF00 ABCD
D0004D0003D0002
EF00 ABCD 0123
D0002
0123

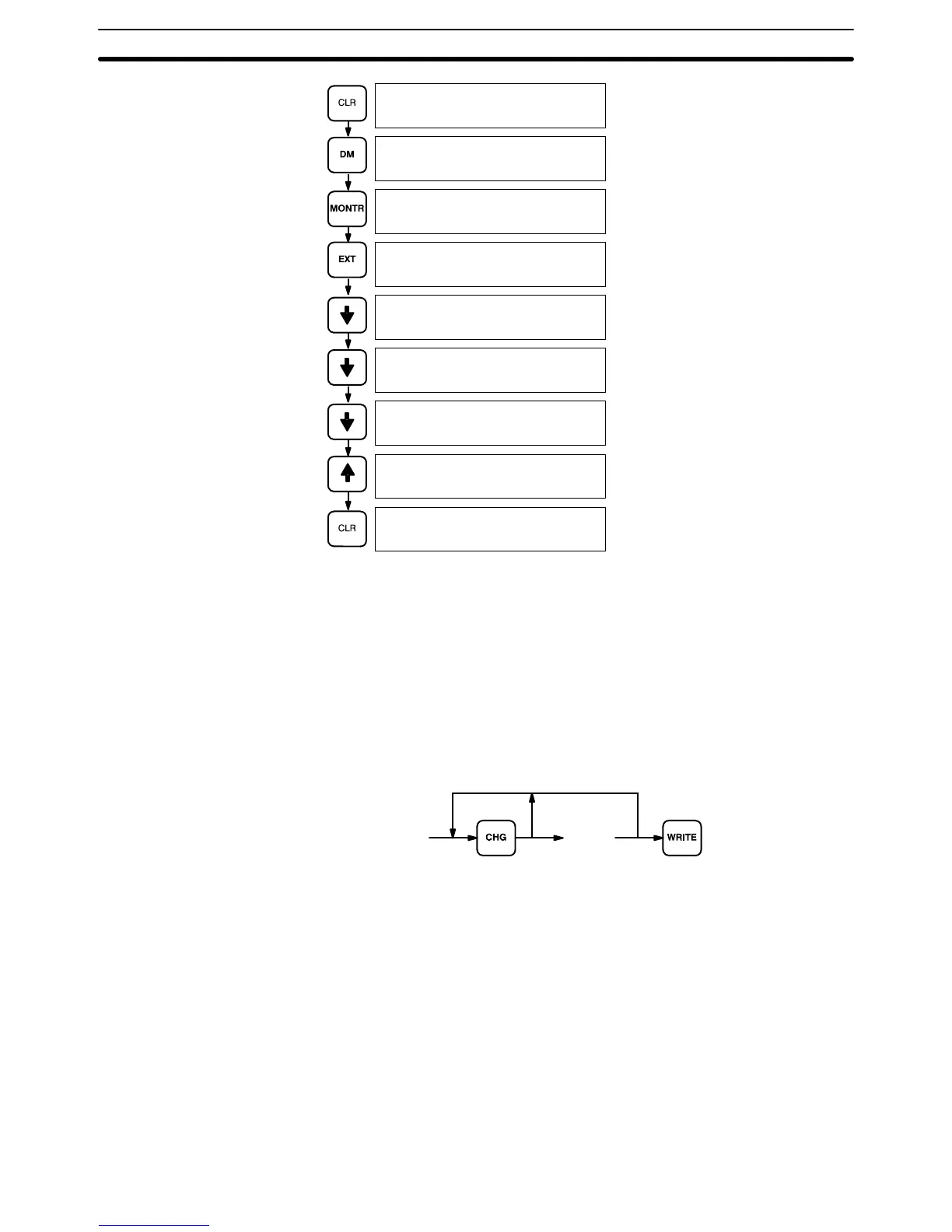

7-1-7 3-word Data Modification
This operation changes the contents of a word during the 3-Word Monitor
operation. The blinking square indicates where the data can be changed.
After the new data value is keyed in, pressing WRITE causes the original
data to be overwritten with the new data. If CLR is pressed before WRITE,
the change operation will be cancelled and the previous 3-word Monitor op-
eration will resume.
Key Sequence
3 words currently
displayed
[ Data ]
Example
Monitoring Operation and Modifying Data Section 7-1
