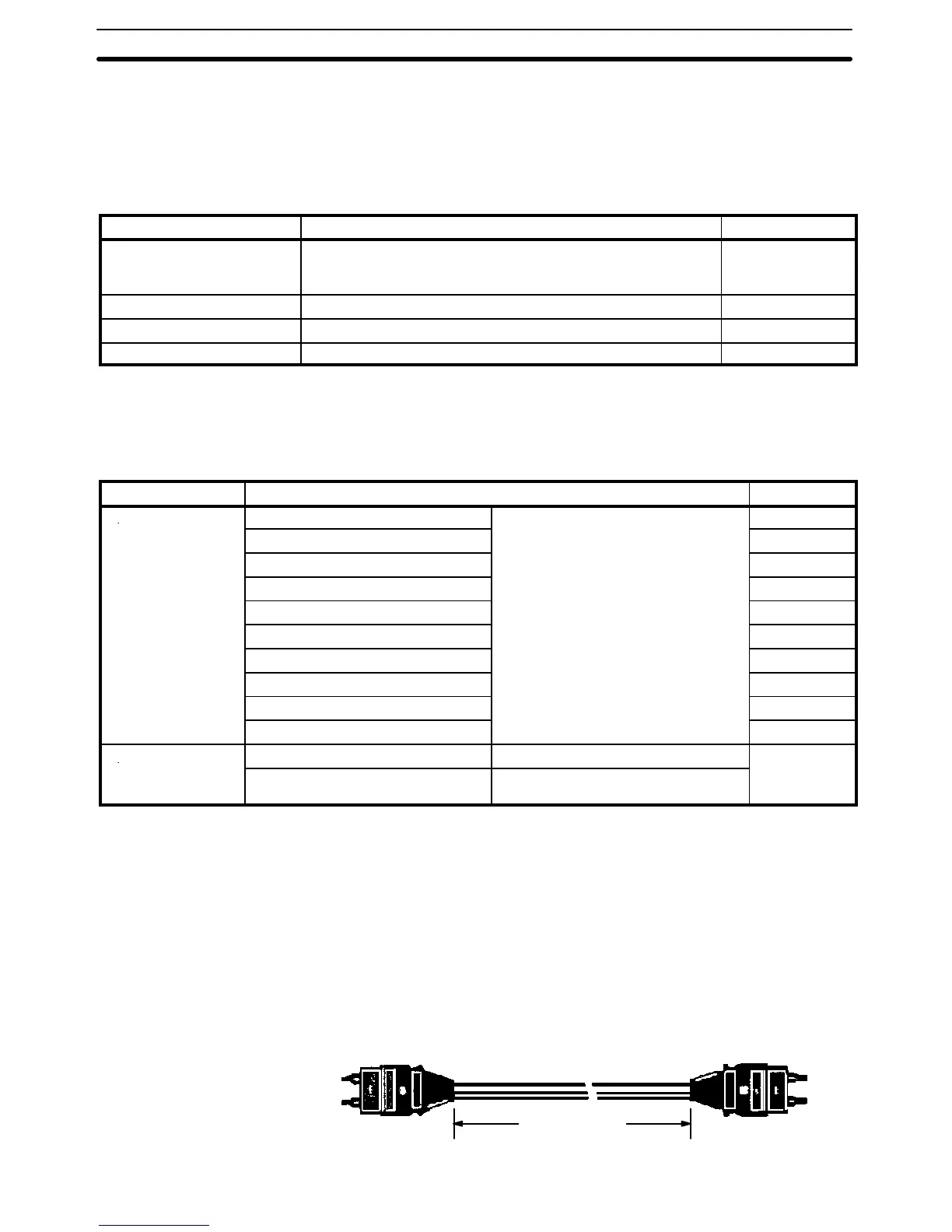

Appendix AStandard Models
277
Optical Fiber Cable
Plastic Optical Fiber Cable (APF) APF stands for “All-Plastic Fiber”. This
cable can be used to connect only Units having the suffix “-P” in their model
number. The maximum length is 20 m. The 3G5A2-PF002 cable comes with-
out connectors and must be assembled by the user.
Product Description Model no.
Plastic Optical Fiber Cable Cable only (optical connectors not provided)
Order in units of 5 m for cable less than 100 m, or in units of 200
m or 500 m.
3G5A2-PF002
Optical Connector A 2 pcs (brown),for plastic Optical fiber 10 m long max. 3G5A2-CO001
Optical Connector B 2 pcs (black) for plastic Optical fiber 8 to 20 m long 3G5A2-CO002
Plastic Optical Fiber Cable 1 m, w/optical connector A provided at both ends 3G5A2-PF101
Plastic-Clad Optical Fiber Cable (PCF) PCF stands for “Plastic-Clad Fiber”.
This cable can be used to connect any Units. The maximum length for Units
having the suffix “-P” in their model number is 200 m. The maximum length
for Units without the suffix “-P” in their model number is 800 m.
Product Description Model no.
Optical Fiber Cable
0.1 m, w/connector Ambient temperature: –10° to 70°C 3G5A2-OF011
(for indoors)
1 m, w/connector 3G5A2-OF101
2 m, w/connector 3G5A2-OF201
3 m, w/connector 3G5A2-OF301
5 m, w/connector 3G5A2-OF501
10 m, w/connector 3G5A2-OF111
20 m, w/connector 3G5A2-OF211
30 m, w/connector 3G5A2-OF311
40 m, w/connector 3G5A2-OF411
50 m, w/connector 3G5A2-OF511
Optical Fiber Cable
1 to 500 m (Order in Units of 10 m) Ambient temperature: –10° to 70°C 3G5A2-OF002
(for outdoors)
501 to 800 m (Order in Units of 10 m) Ambient temperature: 0° to 55°C (Must
not be subjected to direct sunlight)
Crystal Optical Fiber Cable (AGF) AGF stands for “All-Glass Fiber”. Crystal
optical fiber cable is not available from OMRON.
Cable Length
The connectors may be difficult to attach to the cables. Therefore, always
leave a little extra length when cutting the cable. The lengths given for pre-
assembled cables are as shown below.
Fiber length (m)
